Verified fitment — 4 vehicles
Fitment is sourced from official parts catalogues, listed per catalogue market.
Manufacturer reference prices
Catalogue / RRP reference only — the live MotoDoc price is on the product page.
| Currency | Reference price | Type | Source |
|---|---|---|---|
| GBP | 233.29 | listing | motogbshop.co.uk |

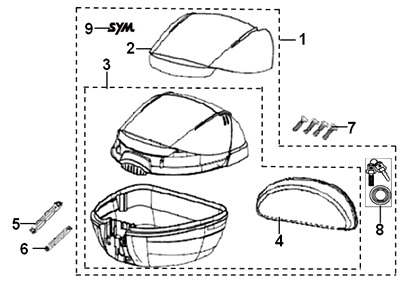

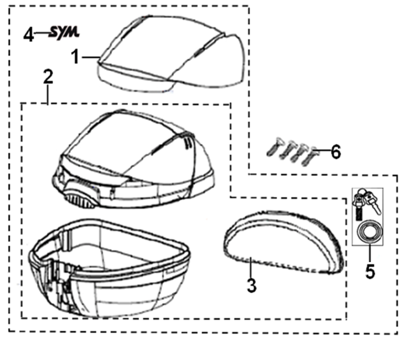

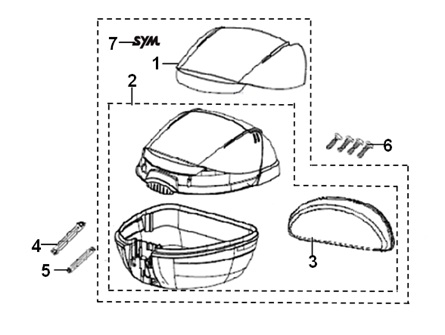

Location in exploded diagrams
Other parts on this diagram — Top Box
- 87170U11000T2 — Sym Fiddle 125 E5 SYM STRIPE(WHITE)
- 87170U11000T1 — Sym Fiddle 125 E5 SYM STRIPE(BLACK)
- 8142AXRA030 — Sym Fiddle 125 E5 Tail box lock ASSY
- 936000604007 — Sym Fiddle 125 E5 Pan screw 6*40
- 81312XPA000 — Sym Fiddle 125 E5 FR. LUGGAGE BASKET STAY
- 81311XPA000 — Sym Fiddle 125 E5 FR. LUGGAGE BASKET STAY
- 81490XRA000 — Sym Fiddle 125 E5 TRUNK BOX BACKREST
- 81402XRA010 — Sym Fiddle 125 E5 TRUNK BOX
- 81401XRA000BY — Sym Fiddle 125 E5 Top cover on trunk box - Satin Blue (BU-2154U)
- 81401XRA001WE — Sym Fiddle 125 E5 Top cover on trunk box - White (WH-8028P)
- 81401XRA001KH — Sym Fiddle 125 E5 TOP COVER ON TRUNK BOX(BLACK)
- 81401XRA001KC — Sym Fiddle 125 E5 Top Cover on Topbox - Matt Black (BK-007U)
- 81401XRA000AN — Sym Fiddle 125 E5 Top Cover on Topbox - Grey (GY-430C)
- 8140AXRA000BY — Sym Fiddle 125 E5 Trunk box set - Satin Blue (BU-2154U)
- 8140AXRA000WE — Sym Fiddle 125 E5 Trunk box set - White (WH-8028P)
- 8140AXRA000KH — Sym Fiddle 125 E5 Trunk box set - Bronze (BK-7C)
- 8140AXRA000KC — Sym Fiddle 125 E5 Trunk box set - Matt Black (BK-007U)
- 8140AXRA000AN — Sym Fiddle 125 E5 Trunk box set - Grey (GY-430C)
