Verified fitment — 1 vehicle
Fitment is sourced from official parts catalogues, listed per catalogue market.
United Kingdom (1)
Location in exploded diagrams

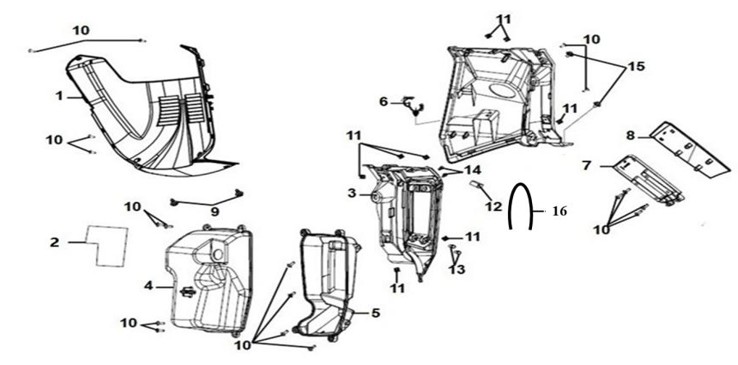

Other parts on this diagram — Front Inner Box
- 90115ATA000 — Sym Jet X 125 E5+ FLANGE BOLT 6*16
- 908994226100 — Sym Jet X 125 E5+ PLUG CORN
- 81139XN1000 — Sym Jet X 125 E5+ FR. INNER BOX LID PIN
- 81140XN1000 — Sym Jet X 125 E5+ FR. INNER BOX LID CATCH COM
- 90302SA4900 — Sym Jet X 125 E5+ SPRING NUT 4MM
- 90302SA4010 — Sym Jet X 125 E5+ SPRING NUT 4MM
- 9390334380L1 — Sym Jet X 125 E5+ TAPPING SCREW 4x12 mm
- 90115REA000TW — Sym Jet X 125 E5+ PLASTIC NUT6MM
- 90115REA000 — Sym Jet X 125 E5+ PLASTIC NUT 6MM
- 81132VJC000WM — Sym Jet X 125 E5+ FR. INNER BOX LID (WH057P)
- 81132VJC000RB — Sym Jet X 125 E5+ FR. INNER BOX LID (R010CA)
- 81132VJC000GX — Sym Jet X 125 E5+ FR. INNER BOX LID (GY218)
- 81132VJC000CA — Sym Jet X 125 E5+ FR. INNER BOX LID (BK315U)
- 81133XN1000L1 — Sym Jet X 125 E5+ FR. INNER BOX LID STIFFENER
- 90115AZA000 — Sym Jet X 125 E5+ ROD HOLDER
- 81134VJC000 — Sym Jet X 125 E5+ UP. INNER BOX
- 81144VJC000FG — Sym Jet X 125 E5+ LWR. INNER BOX
- 81137VJC000WM — Sym Jet X 125 E5+ FR. INNER BOX(WH057P)
- 81137VJC000RB — Sym Jet X 125 E5+ FR. INNER BOX(R010CA)
- 81137VJC000GX — Sym Jet X 125 E5+ FR. INNER BOX(GY218)
- 81137VJC000CA — Sym Jet X 125 E5+ FR. INNER BOX(BK315U)
- 83616XB1000 — Sym Jet X 125 E5+ SPONGE 105x50x4
- 64300VJC000FG — Sym Jet X 125 E5+ FR. UNDER SPOILER
