8111AS220002Lambretta J125 FUEL TANK WELDED ASSEMBLY — Genuine Lambretta Part
Lambrettaoem
Verified fitment — 1 vehicle
Fitment is sourced from official parts catalogues, listed per catalogue market.
United Kingdom (1)

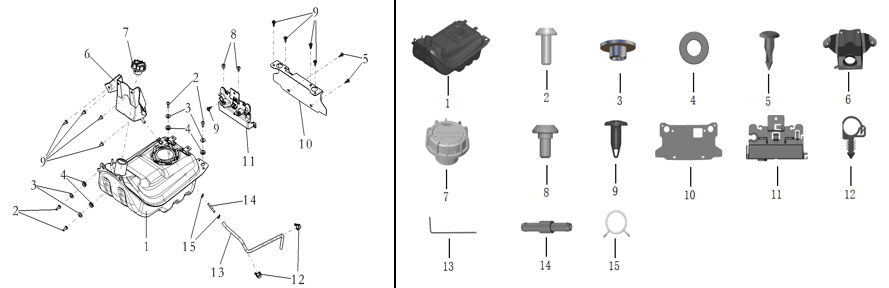

Location in exploded diagrams
Other parts on this diagram — F28 - Fuel Tank
- DB08D5ADB — Lambretta J125 STEEL WIRE ELASTIC RING HOOP
- 81213M610000 — Lambretta J125 HOSE JOINER
- 81104S220000 — Lambretta J125 DRAIN HOSE
- 91402M620001 — Lambretta J125 LING CARD(?12)
- 81102S220001 — Lambretta J125 FUEL TANK HEAT SHIELD PLATE
- 81101S220000 — Lambretta J125 FUEL TANK HEAT INSULATION PAD
- 91302M120000 — Lambretta J125 EXPANSION SCREW SET
- 90114M110000 — Lambretta J125 SHOULDER BOLT M6*12
- 8113AS220000 — Lambretta J125 FUEL TANK CAP ASSEMBLY
- 81103S220001 — Lambretta J125 FUEL TANK SPLASH COVER
- 82001M210000 — Lambretta J125 EXPANSION RIVET
- 51022M110000 — Lambretta J125 RUBBER PAD (III)
- 51029M110001 — Lambretta J125 LINER TUBE COMBINATION(III)
- 90124M120000 — Lambretta J125 BOLT M6?16
