Verified fitment — 5 vehicles
Fitment is sourced from official parts catalogues, listed per catalogue market.
United Kingdom (4)
China (1)
Manufacturer reference prices
Catalogue / RRP reference only — the live MotoDoc price is on the product page.
| Currency | Reference price | Type | Source |
|---|---|---|---|
| GBP | 25.79 | listing | motogbshop.co.uk |
Location in exploded diagrams

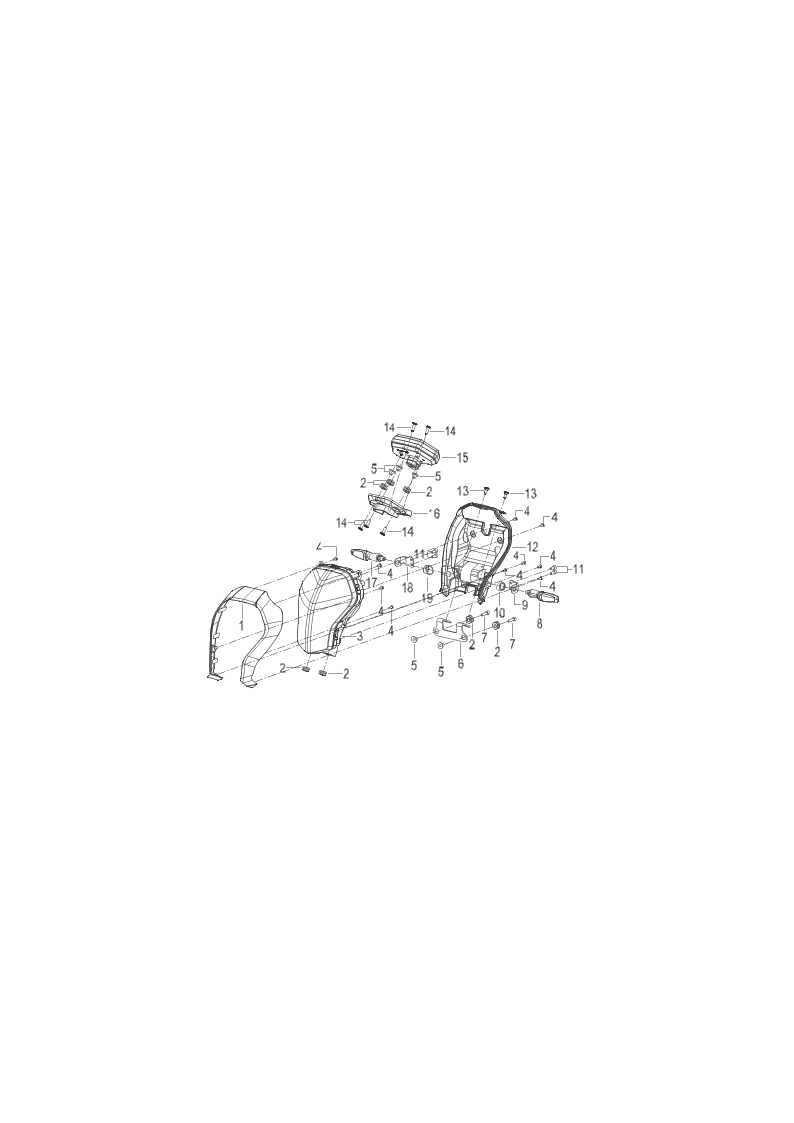

Other parts on this diagram — 导流罩 BRACKET ASSY.
- #1 65501P08B200 — BRACKET.
- #2 65616L430000 — GUARD PLATE RUBBER MAT
- #3 80000P080000 — HEAD LIGHT
- #4 08001B470000 — SELF-TAPPING SCREW
- #5 270975050000 — BUSH
- #6 08345P080000 — HEADLAMP BRACKET
- #7 B0205060206H — SCREW M6×20
- #9 43047P080000 — FRONT LEFT TURN LAMP HOLDER
- #10 81071P080000 — LEFT FRONT TURN SIGNAL PROTECTOR
- #11 B0205060126K — SCREW M6×12
- #12 65521P080000 — REAR DECORATIVE PLATE OF FAIRING
- #13 B0284060150A — SCREW M6×15.2
- #14 B0284060200A — SCREW M6×20
- #15 70000P080000 — SPEEDOMETER ASSY
- #16 40150P080000 — INSTRUMENT MOUNTING BLOCK
- #17 81300V020000 — FRONT RIGHT STEERING LAMP
- #18 43048P080000 — FRONT RIGHT TURN LAMP HOLDER
- #19 81072P080000 — RIGHT FRONT TURN SIGNAL SHEATH
