Location in exploded diagrams

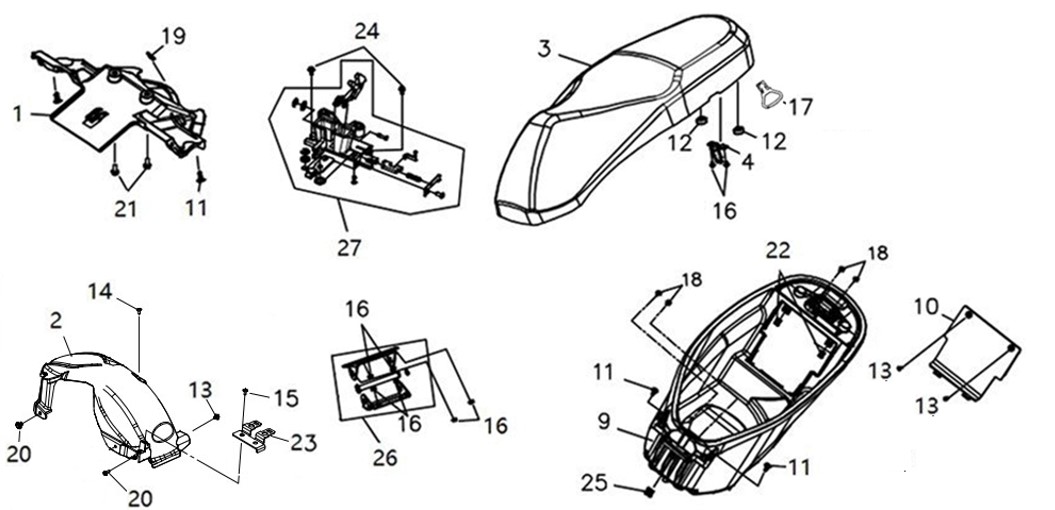

Other parts on this diagram — DOUBLE SEAT COMP LUGGAGE BOX
- 77230EAA000 — Sym Fugue 125 E5+ Seat catch ASSY
- 77110XB1000 — Sym Fugue 125 E5+ HINGE COMP.
- 90305GK8000 — Sym Fugue 125 E5+ CLIP NUT 6MM
- 90305M9Q000 — Sym Fugue 125 E5+ CLIP NUTM6
- 960010601607 — Sym Fugue 125 E5+ FLANGE BOLT SH 6X16
- 17832XZ1000 — Sym Fugue 125 E5+ O2 SENSOR COUPLER STAY
- 934040601607L1 — Sym Fugue 125 E5+ WASHER BOLT 6*16 mm
- 90105M40000 — Sym Fugue 125 E5+ SPL. SCREW 5*12
- 90302SA4900 — Sym Fugue 125 E5+ SPRING NUT 4MM
- 90302SA4010 — Sym Fugue 125 E5+ SPRING NUT 4MM
- 90111M9Q8000L1 — Sym Fugue 125 E5+ FLANGE BOLT 6 mm
- 77115VW3000 — Sym Fugue 125 E5+ SEAT RUBBER
- 9405006080L1 — Sym Fugue 125 E5+ FLANGE NUT 6 mm
- 939033528000 — Sym Fugue 125 E5+ TAPPING SCREW 5x12
- 9390344380 — Sym Fugue 125 E5+ TAPPING SCREW 4X12
- 934040601207L1 — Sym Fugue 125 E5+ WASHER BOLT 6*12 mm
- 90115REA000TW — Sym Fugue 125 E5+ PLASTIC NUT6MM
- 90115REA000 — Sym Fugue 125 E5+ PLASTIC NUT 6MM
- 50326F6B000 — Sym Fugue 125 E5+ BATTERY COVER
- 81250VW3000 — Sym Fugue 125 E5+ LUGGAGE BOX
- NOTASSIGNED — Sym Fugue 125 E5+ NOT ASSIGNED
- 77101VW3000 — Sym Fugue 125 E5+ SEAT LOCK STAY
- 77200VW3800T2 — Sym Fugue 125 E5+ DOUBLE SEAT COMP.
- 80105VW3900 — Sym Fugue 125 E5+ RR. MUDGUARD
