Verified fitment — 1 vehicle
Fitment is sourced from official parts catalogues, listed per catalogue market.
United Kingdom (1)
Manufacturer reference prices
Catalogue / RRP reference only — the live MotoDoc price is on the product page.
| Currency | Reference price | Type | Source |
|---|---|---|---|
| EUR | 11.88 | listing | cfmoto.quadzillaparts.co.uk |
| GBP | 10.99 | listing | cfmoto.quadzillaparts.co.uk |

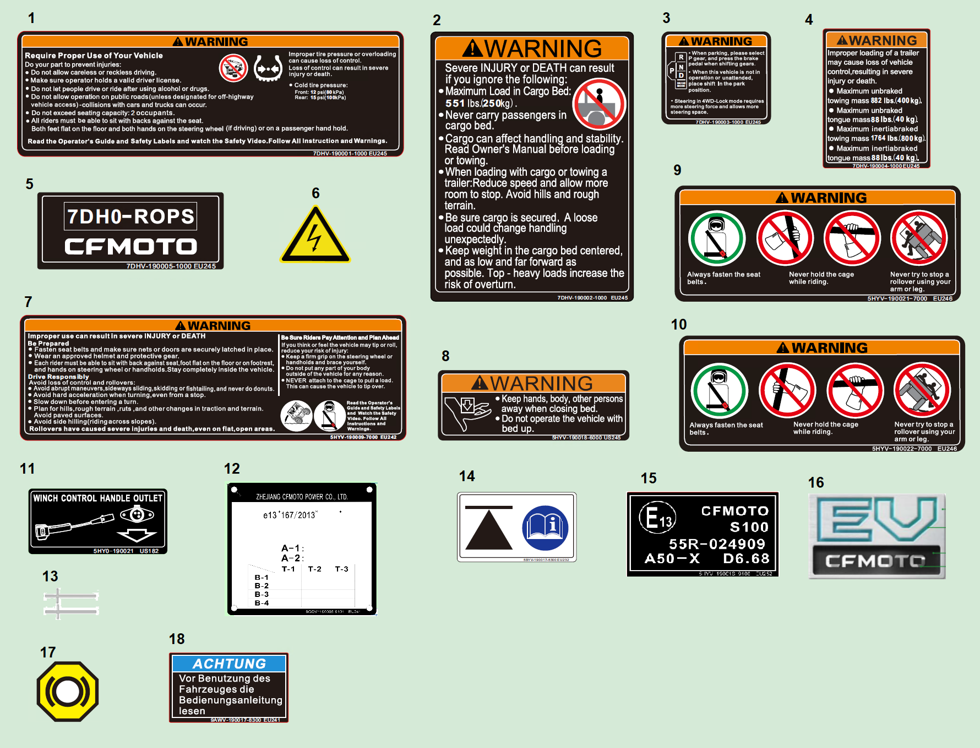

Location in exploded diagrams
Other parts on this diagram — F19-2-b (eu167) Warning Decal(eu167)
- #06 7DHV-190012-1000 — High Pressure Warning Label
- #03 9GQV-190005-9101 — Vin Plate
- #13 9AWV-190017-8300 — Driver Instruction Label
- #01 7DHV-190001-1000 — Safety Warning Label
- #07 5HYV-190009-7000 — Driving Warning Label
- #19 30902-0401320 — Rivet F4×13
- #02 7DHV-190002-1000 — Cargo Box Load Instruction Label
- #06 5HYV-190018-6000 — Cargo Box Warning Label
- #13 5BYV-190017-6300 — Jack Location Diagram Lava Orange
- #03 7DHV-190003-1000 — Gear Operation Instruction Label
- #09 5HYV-190021-7000 — Anti-Rolling Bar Lh Warning Label
- #15 5HYV-190016-9100 — Towing Ballhead Label
- #04 7DHV-190004-1000 — Instruction Label, Towing Load
- #10 5HYV-190022-7000 — Anti-Rolling Bar Rh Warning Label
- #05 7DHV-190005-1000 — Anti-Rolling Bar Warning Label
- #12 5HY0-190021 — Label, Winch Control Lever
- #09 9GQS-190102 — Decal, Brake Fluid Level
