Verified fitment — 1 vehicle
Fitment is sourced from official parts catalogues, listed per catalogue market.
United Kingdom (1)

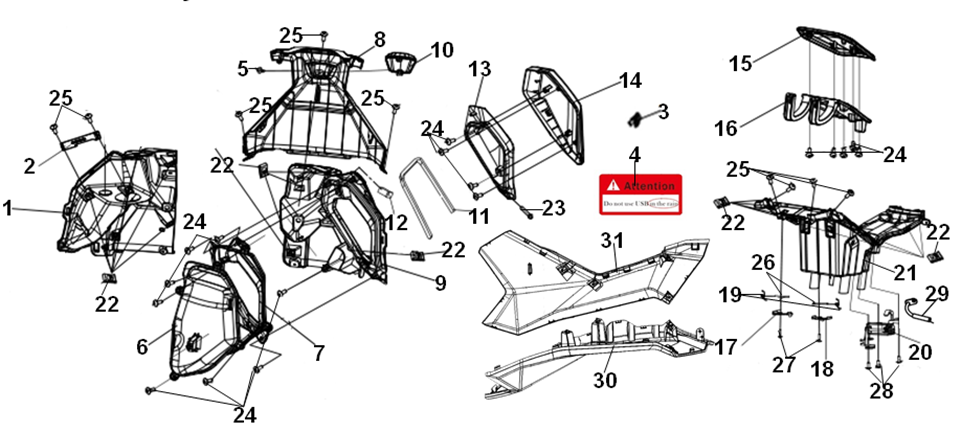

Location in exploded diagrams
Other parts on this diagram — Inner Tray
- 83610ZHA000WA — Sym ADX 125 E5 L.FRONT COVER B(WH-006) - White
- 83610ZHA000K — Sym ADX 125 E5 L.FRONT COVER B(BK-001C) - Black
- 83610ZHA000GH — Sym ADX 125 E5 L.FRONT COVER B(GN-546U) - Matt Green
- 83610ZHA000BF — Sym ADX 125 E5 L.FRONT COVER B(BUP-275U) - Matt Chameleon Blue
- 83610ZHA000AR — Sym ADX 125 E5 L.FRONT COVER B(GY-008C) - Grey
- 83510ZHA000WA — Sym ADX 125 E5 R.FRONT COVER B(WH-006) - White
- 83510ZHA000K — Sym ADX 125 E5 R.FRONT COVER B(BK-001C) - Black
- 83510ZHA000GH — Sym ADX 125 E5 R.FRONT COVER B(GN-546U) - Matt Green
- 83510ZHA000BF — Sym ADX 125 E5 R.FRONT COVER B(BUP-275U) - Matt Chameleon Blue
- 83510ZHA000AR — Sym ADX 125 E5 R.FRONT COVER B(GY-008C) - Grey
- 9390335270 — Sym ADX 125 E5 TAPPING SCREW 5x12
- 9390344470 — Sym ADX 125 E5 TAPPING SCREW 4x16
- 64317L9M000 — Sym ADX 125 E5 LID HINGE PIN
- 9390344370 — Sym ADX 125 E5 TAPPING SCREW 4x12
- 9390334370 — Sym ADX 125 E5 TAPPING SCREW 4*12
- 81140ZHA000 — Sym ADX 125 E5 FR.INER BOX LID PIN
- 90302SA4010 — Sym ADX 125 E5 SPRING NUT 4MM
- 90302SA4900 — Sym ADX 125 E5 SPRING NUT 4MM
- 64313ZHA000 — Sym ADX 125 E5 FUEL CAP GARNISH
- 64320L9M000TW — Sym ADX 125 E5 FUEL LID LOCK ASSY
- 64316L9M000 — Sym ADX 125 E5 L LID HINGE STAY
- 64315L9M000 — Sym ADX 125 E5 R LID HINGE STAY
- 64312ZHA000 — Sym ADX 125 E5 FUEL CAP LID STIFFENER
- 64311ZHA000 — Sym ADX 125 E5 FUEL CAP LID
