7030-280211REAR SHAFT, RH — Genuine CF MOTO Part
CF MOTOoem
7030-280211 - REAR SHAFT, RH #3
Verified fitment — 1 vehicle
Fitment is sourced from official parts catalogues, listed per catalogue market.
Australia (1)

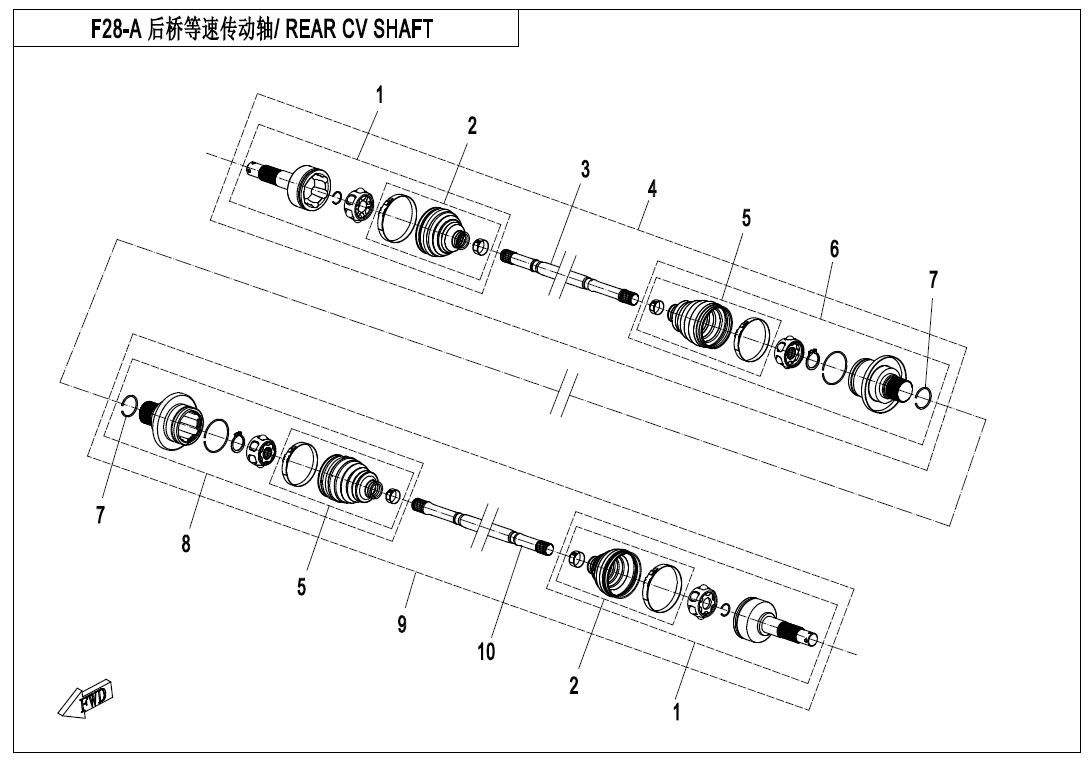

Location in exploded diagrams
Other parts on this diagram — REAR CV SHAFT
- #2 7020-270150-1000 — DUST BOOT FIXING END SPS
- #4 7000-280200-50000 — REAR CV DRIVESHAFT RH Replacing: 7030-280200-1000 - REAR CV DRIVE SHAFT RH
- #1 7000-280140-1000 — JOINT, REAR FIXED END
- #5 9010-270170-10000 — DUST BOOT MOTION END SPS
- #6 9060-280230-1000 — BEARING KIT MOTION END
- #7 9010-280102-00001 — WIRE CIRCLIP Replacing: 9010-280102 - WIRE CLAMP
- #8 9060-280130-1000 — BEARING KIT,MOTION END
- #9 7030-280100-20000 — REAR CV DRIVE SHAFT, LH Replacing: 7030-280100-1000 - REAR CV DRIVE SHAFT, LH
- #10 7030-280111 — REAR SHAFT, LH
