7030-050002STEERING KNUCKLE RH — Genuine CF MOTO Part
CF MOTOoem
7030-050002 - STEERING KNUCKLE RH #33
Verified fitment — 2 vehicles
Fitment is sourced from official parts catalogues, listed per catalogue market.

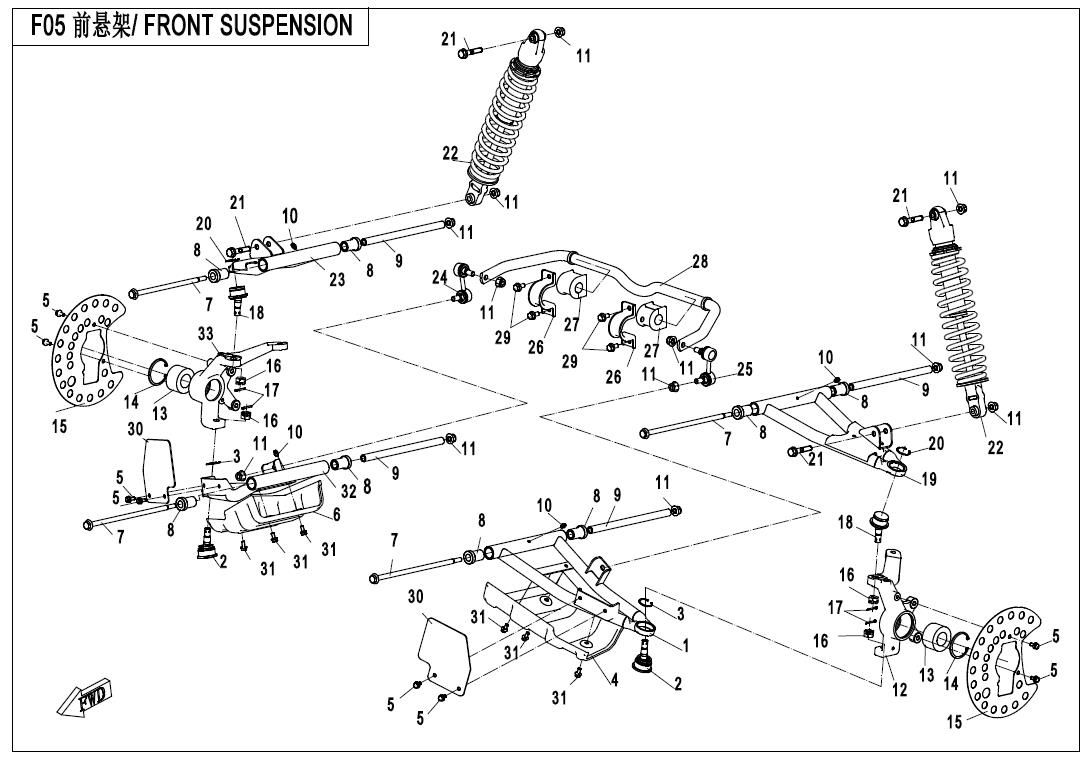

Location in exploded diagrams
Other parts on this diagram — FRONT SUSPENSION
- #1 703V-050210-1500 — FRONT LOWER SWING ARM, LH ELECTROPHORESIS BLACK Replacing: 703A-050210 - FRONT LOWER LH SWING ARM ASSY ELECTROPHORESIS BLACK
- #2 9060-050900-10000 — BALL PIN COMP
- #3 30801-03405 — CIRCLIPS FOR SHAFT 34
- #4 7030-040721 — COVER FRONT ARM LH
- #5 30006-060012870 — BOLT M6X12 Replacing: 30006-060012840 - BOLT M6X12
- #6 7030-040731 — GUARD FRONT ARM(RH)
- #7 4060-050101 — SHAFT FRONT ARM
- #8 9060-050002 — LONG BUSHING, SWING ARM
- #9 9060-050101-00002 — MIDDLE SPACER, FRONT SWING ARM Replacing: 9060-050101 - SPACER
- #10 3121401 — NIPPLE, GREASE
- #11 30204-102810 — NUT M10X1.25 Replacing: 30204-102840 - NUT M10X1.25
- #12 703A-050001 — FRONT STEERING KNUCKLE, LH
- #13 9GQ0-050710 — BEARING, HUB Replacing: 30499-03080 - BEARING HUB DAC3055W
- #14 30800-05505 — CIRCLIP D55 BLACK
- #15 7030-050003 — GUARD FRONT BRAKE DISC
- #16 30219-122810 — NUT M12X1.25 Replacing: 30219-122840 - NUT M12X1.25
- #17 30903-0322210 — COTTER PIN, 3.2X22 Replacing: 30903-0322240 - COTTER PIN. 3.2X22
- #18 9030-050600-10000 — MAIN PIN COMP
- #19 703A-050110 — FRONT UPPER SWING ARM, LH ELECTROPHORESIS BLACK
- #20 30801-03205 — CIRCLIPS FOR SHAFT32
- #21 30006-102055810 — BOLT M10X1.25X55 Replacing: 30006-102055840 - BOLT M10X1.25X55
- #22 703A-050500 — FRONT SHOCK
- #23 703A-050310 — FRONT UPPER RH SWING ARM ASSY ELECTROPHORESIS BLACK
- #24 9DQV-060700-3000-M2 — LH BALL PIN ASSY Replacing: 9010-060700-20000 - BALL PIN, LH
