Verified fitment — 8 vehicles
Fitment is sourced from official parts catalogues, listed per catalogue market.
Manufacturer reference prices
Catalogue / RRP reference only — the live MotoDoc price is on the product page.
| Currency | Reference price | Type | Source |
|---|---|---|---|
| EUR | 103.82 | listing | cfmoto.quadzillaparts.co.uk |
| GBP | 95.99 | listing | cfmoto.quadzillaparts.co.uk |

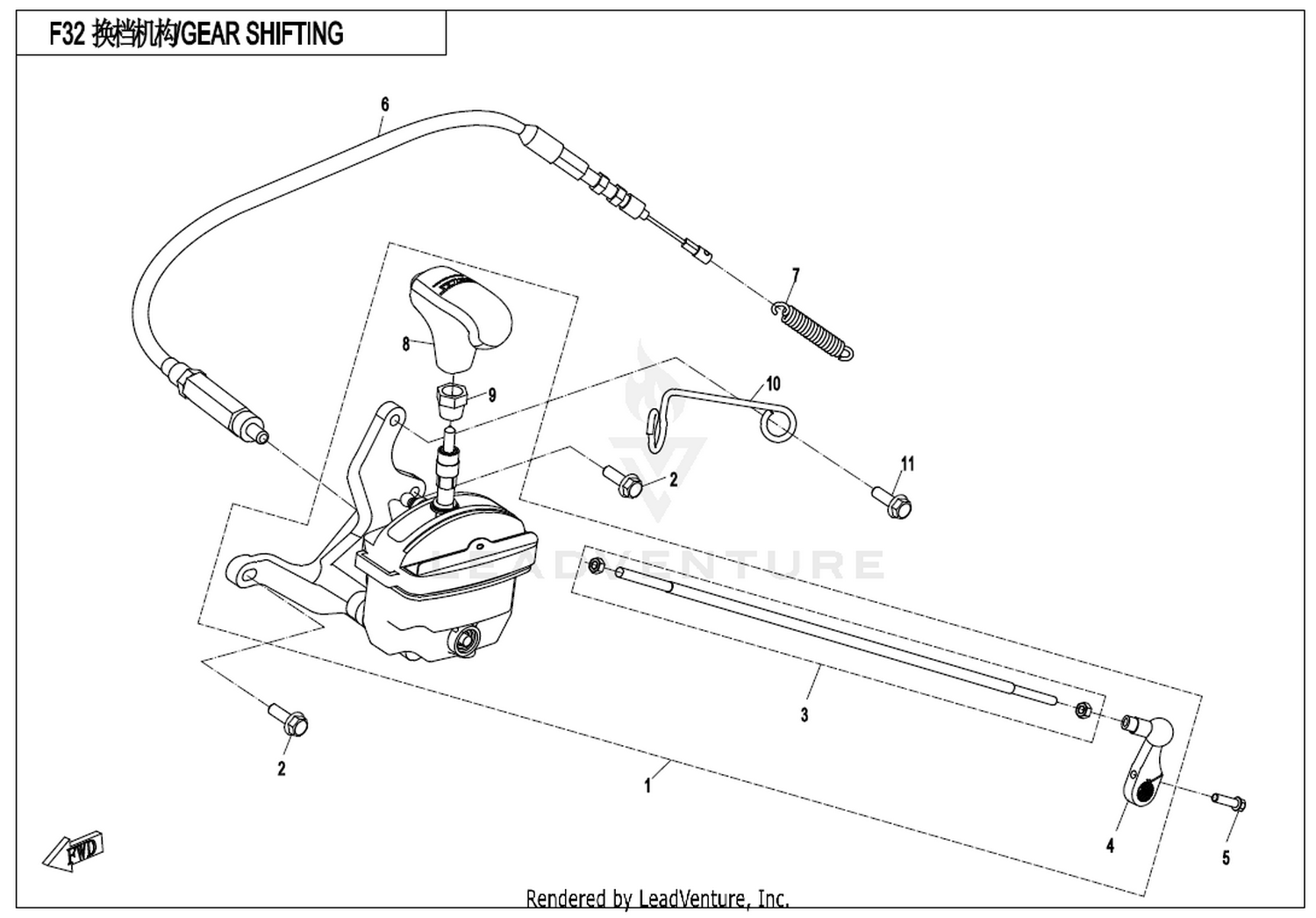

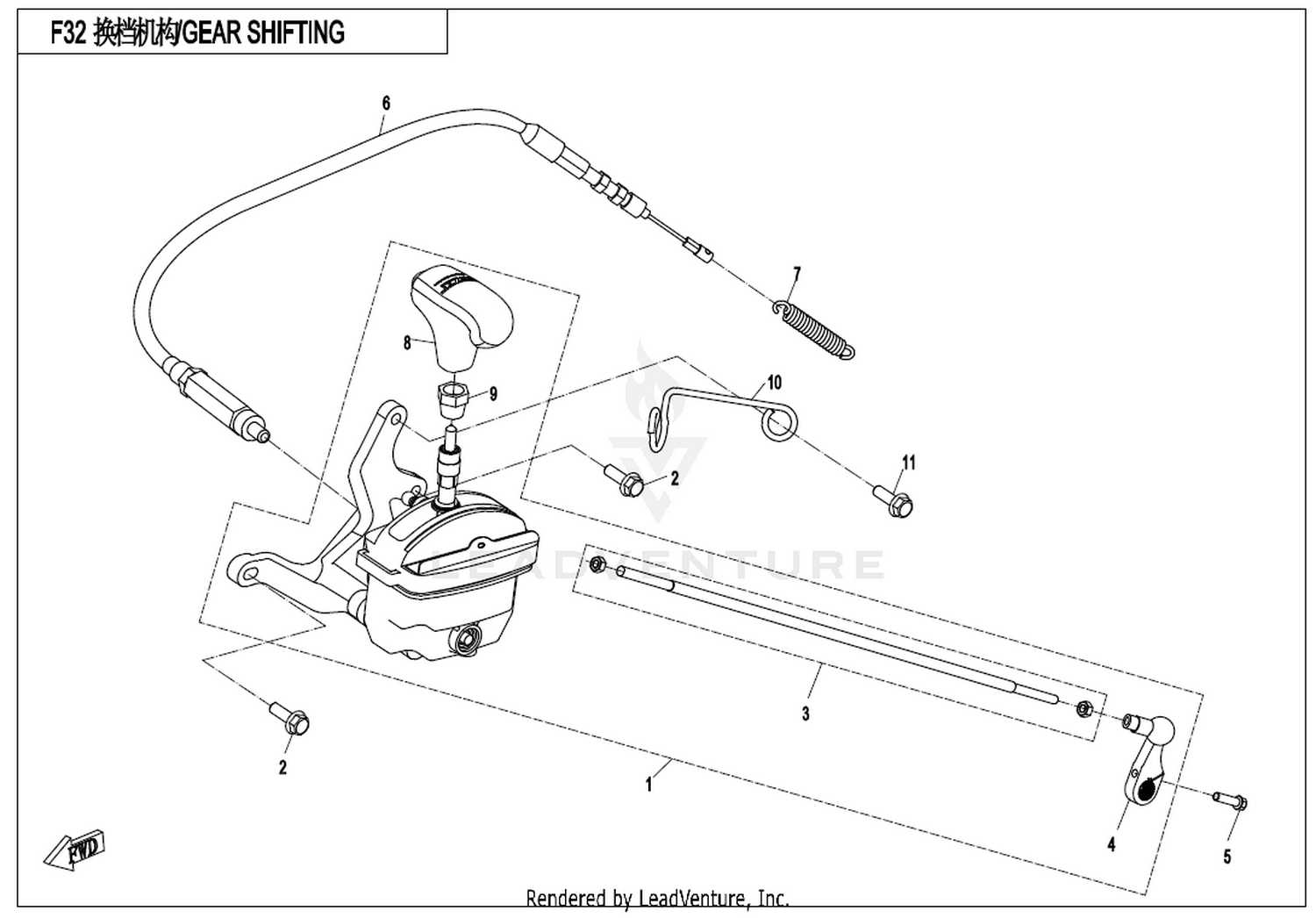

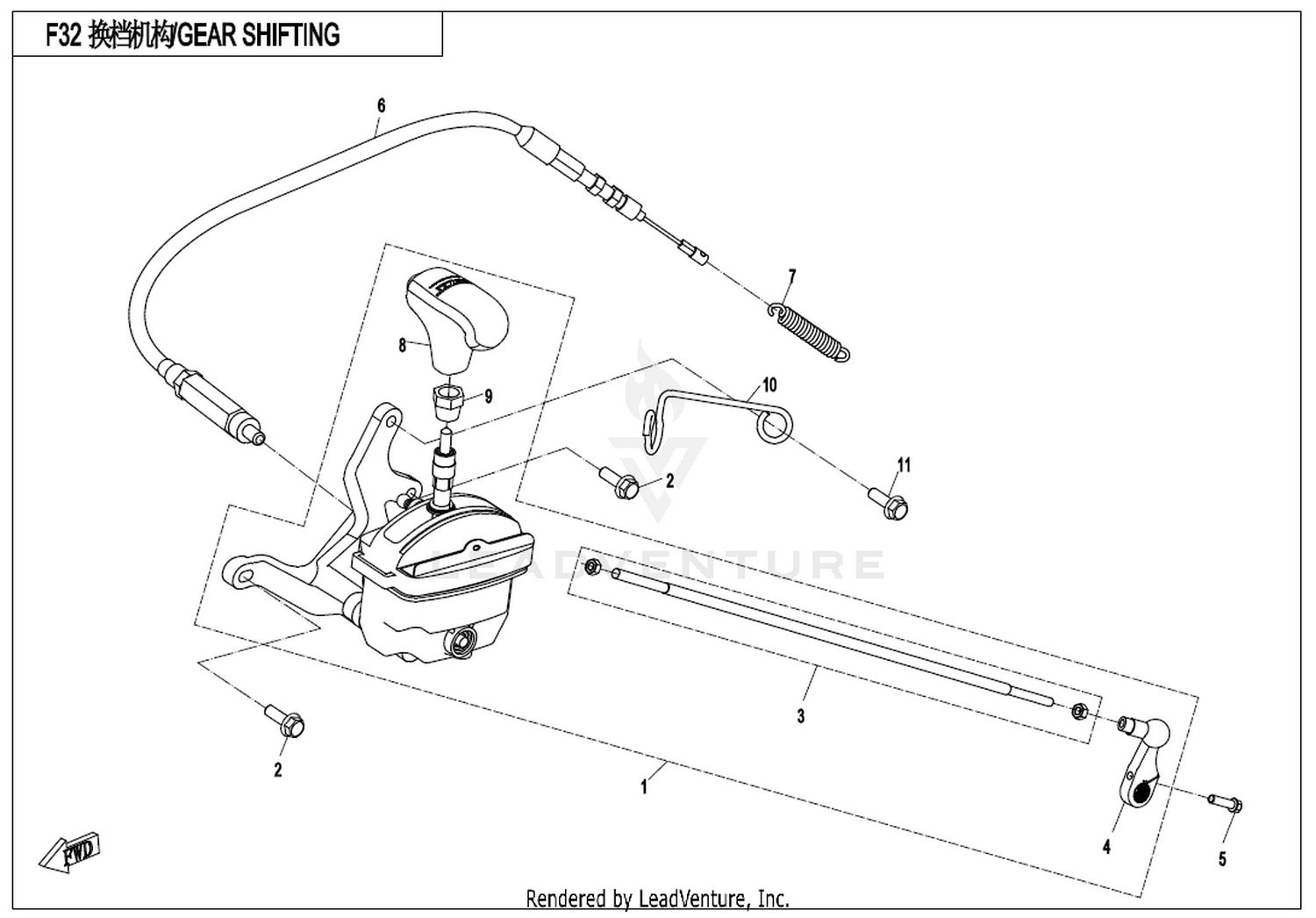

Location in exploded diagrams
Other parts on this diagram — Gear Shifting
- #06 7020-320400 — Cable, Parking Lock
- #07 9010-080202 — Gearshift Spring
- #11 30006-080025810 — Bolt M8×25
- #08 7020-320190 — Knob, Gearshift
- #03 7020-320300 — Gearshift Rod Assy
- #09 9050-320123 — Nut
- #21 9010-320200-2000 — Gearshift Swing Arm Assy
- #10 6100-050074 — Clutch Cable Clip 2
- #05 0010-022020-00002 — Bolt M6X22
- #11 30006-080030840 — Bolt M8X30 Military Green
