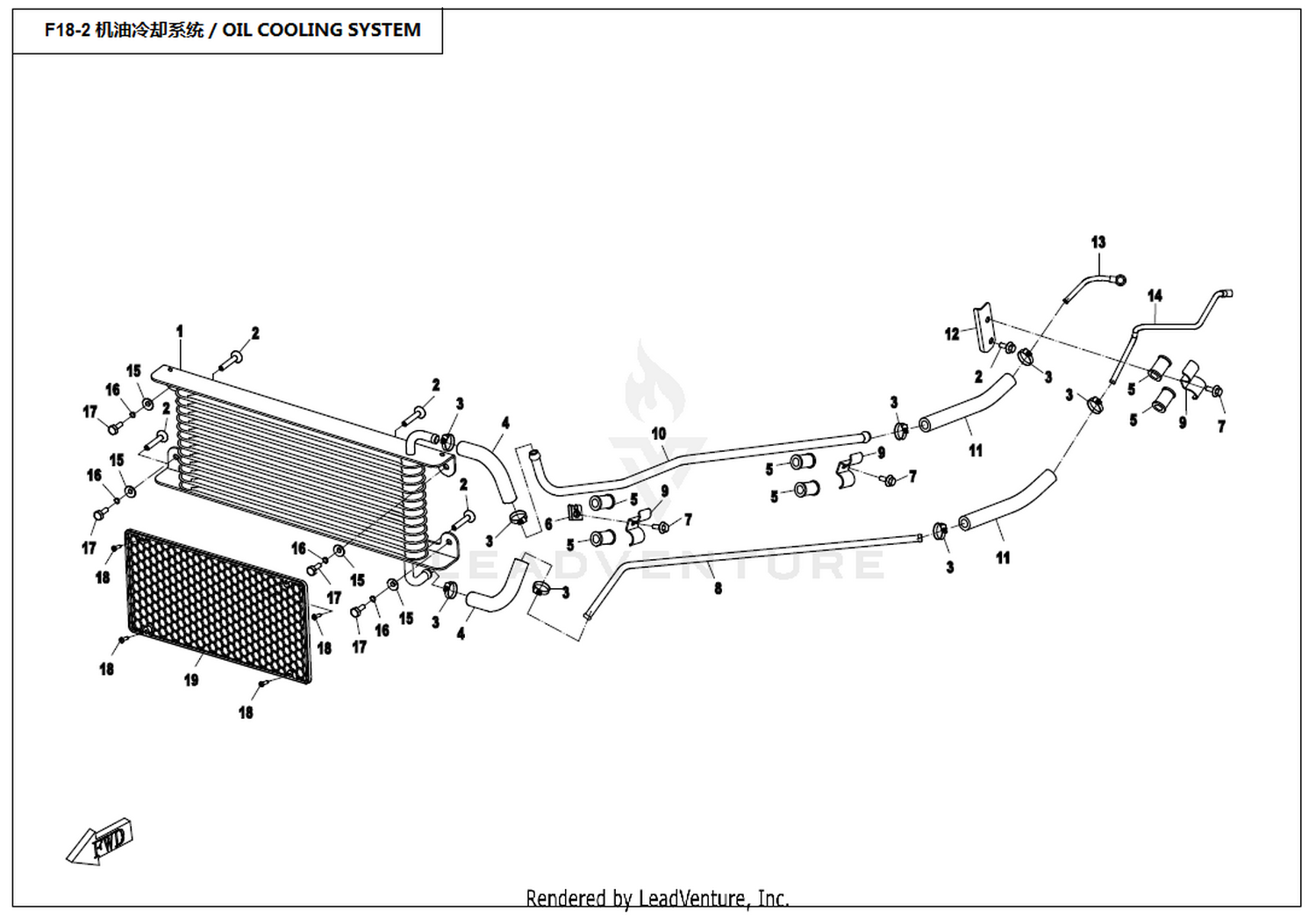

Location in exploded diagrams


Other parts on this diagram — Oil Cooling System
- #08 8030-040800-00001 — Nut Clip M6 M6
- #12 7020-180210-10000 — Bracket, Oil Pipe
- #06 30110-420200040 — Self-Tapping Screw St4.2X20 St4.2X20
- #01 9060-180800-1000 — Oil Radiator
- #20 30001-060016840 — Needs Description
- #13 7020-180220 — Oil Return Pipe, Engine
- #11 7020-181002 — Oil Radiator Guard
- #02 7020-181003 — Nut, Plastic
- #14 7020-180230-10002 — Oil Outlet Pipe, Engine
- #03 30604-116500 — Hose Clamp Qc & T620 16.5 (12~20)
- #09 9030-180007 — Clip, Oil Pipe
- #36 30306-060112 — Washer F6
- #04 9060-180028 — Oil Rubber Hose, Short
- #10 7020-180201-00002 — Oil Pipe 1
- #15 30303-060112 — Washer F6
- #42 9030-180008 — Rubber Sleeve
- #11 7020-180204 — Oil Hose 1
- #08 30006-060012870 — Bolt M6X12@Black Zinc
