Verified fitment — 8 vehicles
Fitment is sourced from official parts catalogues, listed per catalogue market.
Manufacturer reference prices
Catalogue / RRP reference only — the live MotoDoc price is on the product page.
| Currency | Reference price | Type | Source |
|---|---|---|---|
| EUR | 103.82 | listing | cfmoto.quadzillaparts.co.uk |
| GBP | 95.99 | listing | cfmoto.quadzillaparts.co.uk |

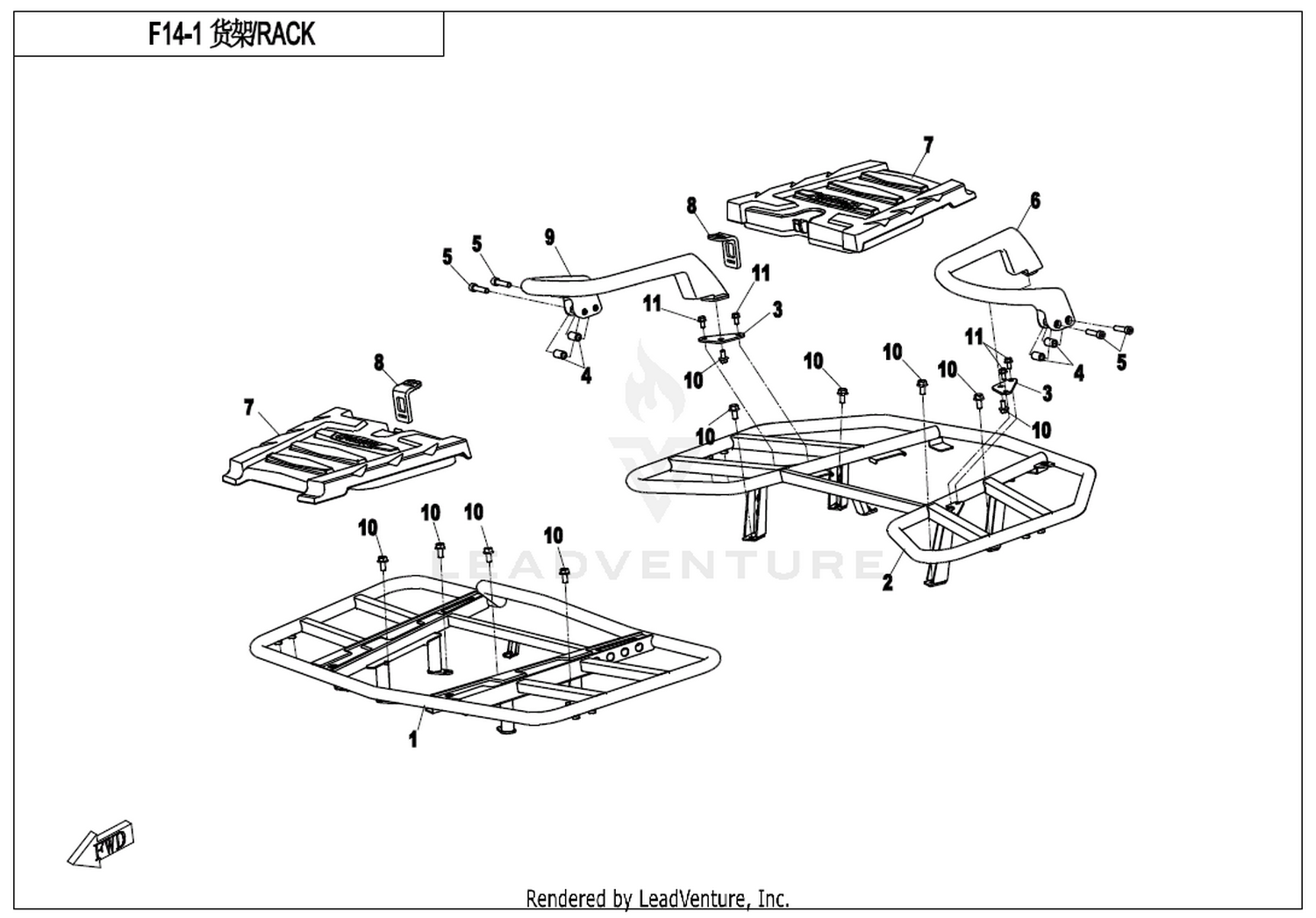

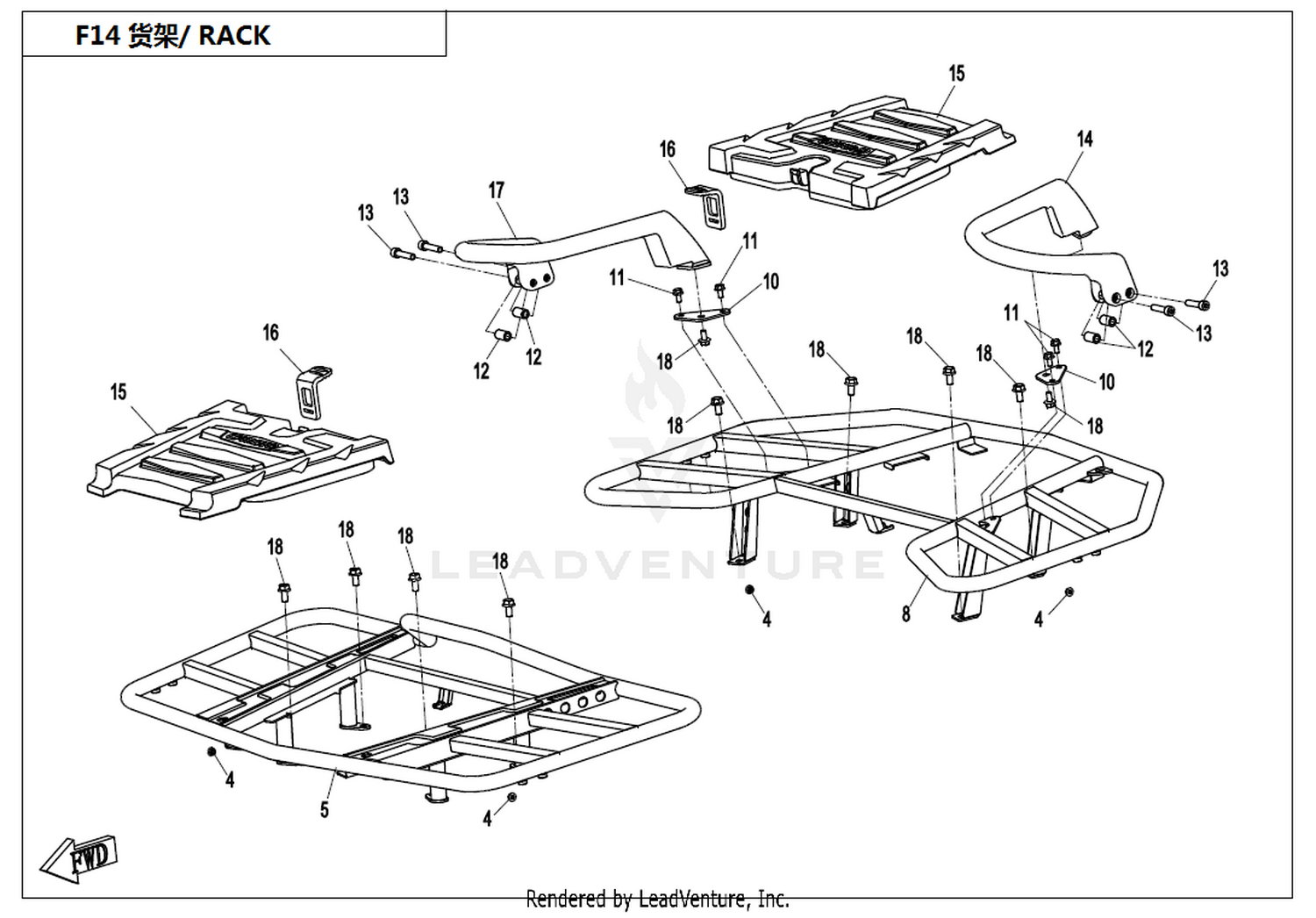

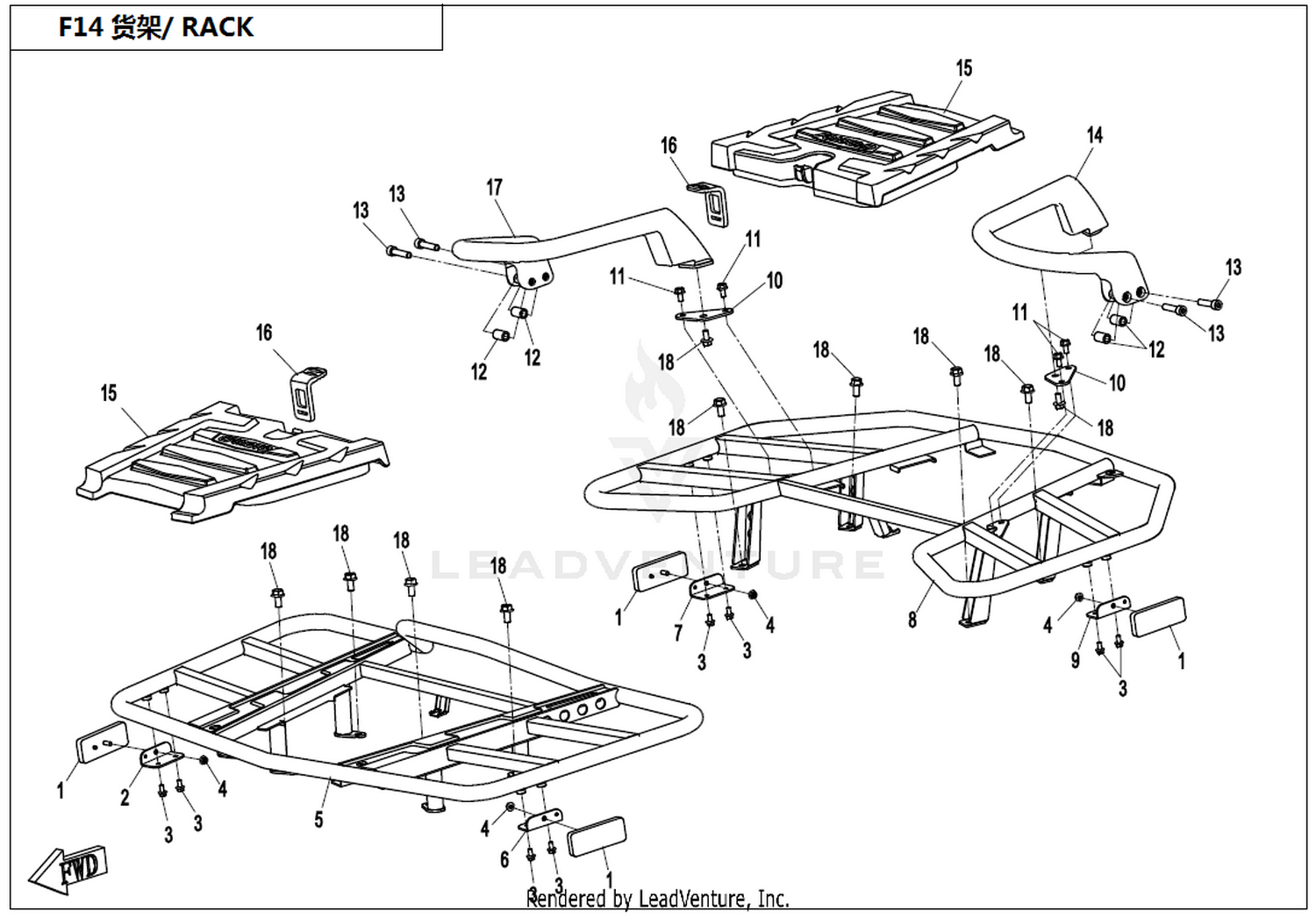

Location in exploded diagrams








Other parts on this diagram — Rack
- #07 7020-140001 — Cover, Rack
- #02 7020-142000-10000 — Needs Description
- #14 7020-140002 — Tie Band, Rack Cover
- #03 7020-140003 — Rear Armrest Bracket Plastic Powder
- #09 4020-140700-10000 — Rh Armrest
- #06 9010-040808-10000 — Bushing
- #01 30006-080016810 — Bolt M8X16@Color Zinc Trivalent Chromium
- #01 7020-141000 — Front Rack Assy
- #01 30102-080035810 — Screw M8X35
- #08 30006-060012870 — Bolt M6X12@Black Zinc
- #01 7020-141000-10000 — Needs Description
- #06 4020-140600-10000 — Armrest, Lh
