Verified fitment — 8 vehicles
Fitment is sourced from official parts catalogues, listed per catalogue market.
Manufacturer reference prices
Catalogue / RRP reference only — the live MotoDoc price is on the product page.
| Currency | Reference price | Type | Source |
|---|---|---|---|
| EUR | 3.23 | listing | cfmoto.quadzillaparts.co.uk |
| GBP | 2.99 | listing | cfmoto.quadzillaparts.co.uk |
Location in exploded diagrams

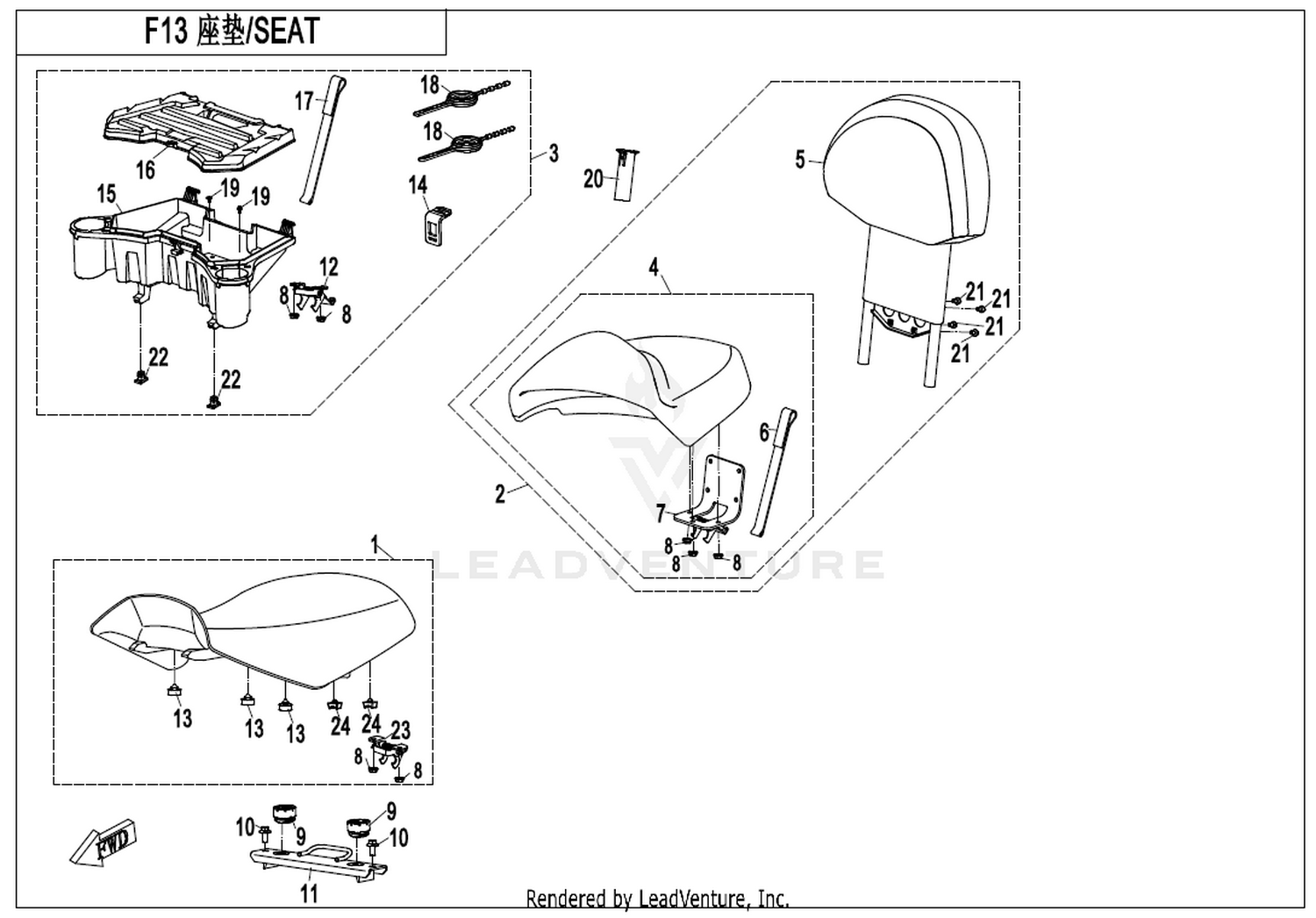

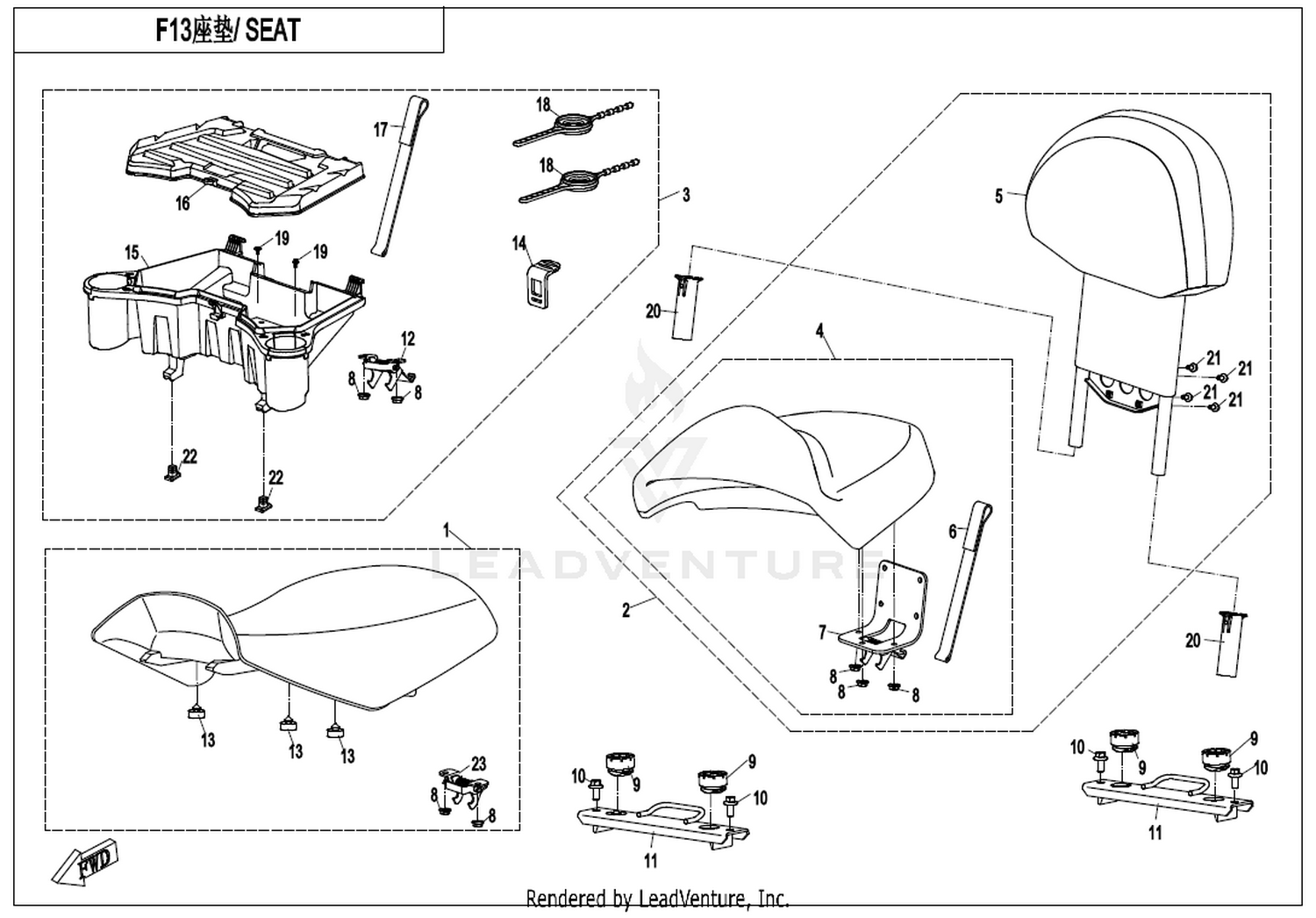

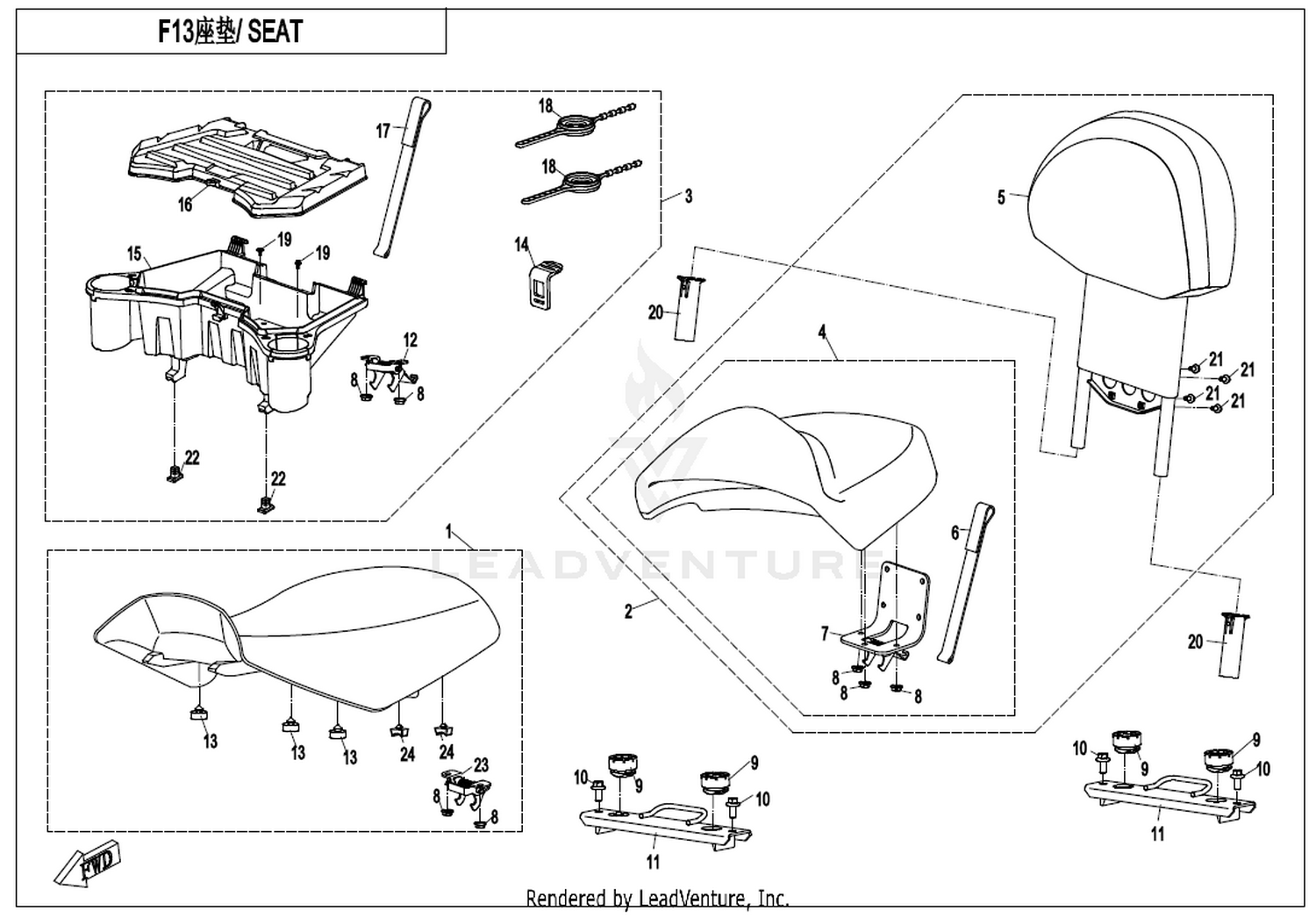

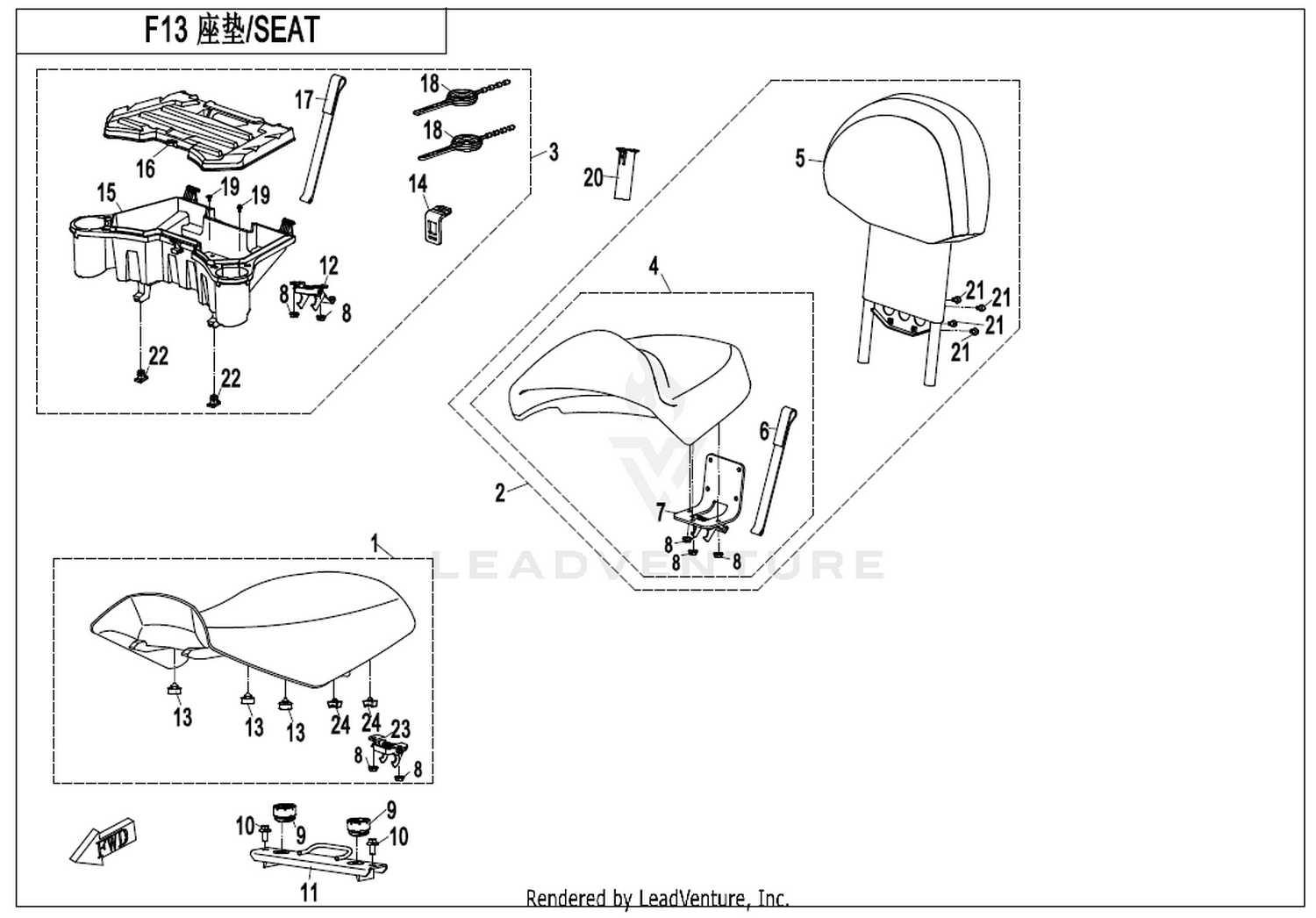

Other parts on this diagram — Seat
- #05 7020-132200-10000 — Backrest Assy
- #14 30204-060810 — Nut M6
- #11 7020-130020 — Plate, Seat
- #14 7020-140002 — Tie Band, Rack Cover
- #20 7020-130002 — Backrest Sleeve
- #24 7020-131001 — Heat Insulation Gasket, Main Seat
- #05 7020-132000 — Rear Backrest Assy
- #01 7020-131000 — Front Seat Assy
- #03 7020-1330A0 — Rear Tool Box
- #06 7020-132101 — Backrest Tie
- #06 7020-130001 — Seat Locating Rubber Sleeve
- #12 7020-131100 — Hook, Front Seat
- #15 7020-133001 — Rrar Seat Tool Case
- #18 7020-133004 — Tie Band, Cup
- #13 30006-060010810 — Bolt M6×10
- #02 7020-132000-10000 — Rear Backrest Assy
- #04 7020-132100 — Rear Seat Assy
- #07 7020-132110 — Rear Seat Hook Assy
- #01 30006-080016810 — Bolt M8X16@Color Zinc Trivalent Chromium
- #18 8030-130211 — Rubber Mat F25×1
- #16 7020-133002 — Rrar Seat Tool Case Cover
- #19 8010-040057 — Cross Screw M6X16 M6X16
- #22 7020-133005 — Tool Box Damper
- #23 9010-130110 — Hook, Front Seat
