Location in exploded diagrams

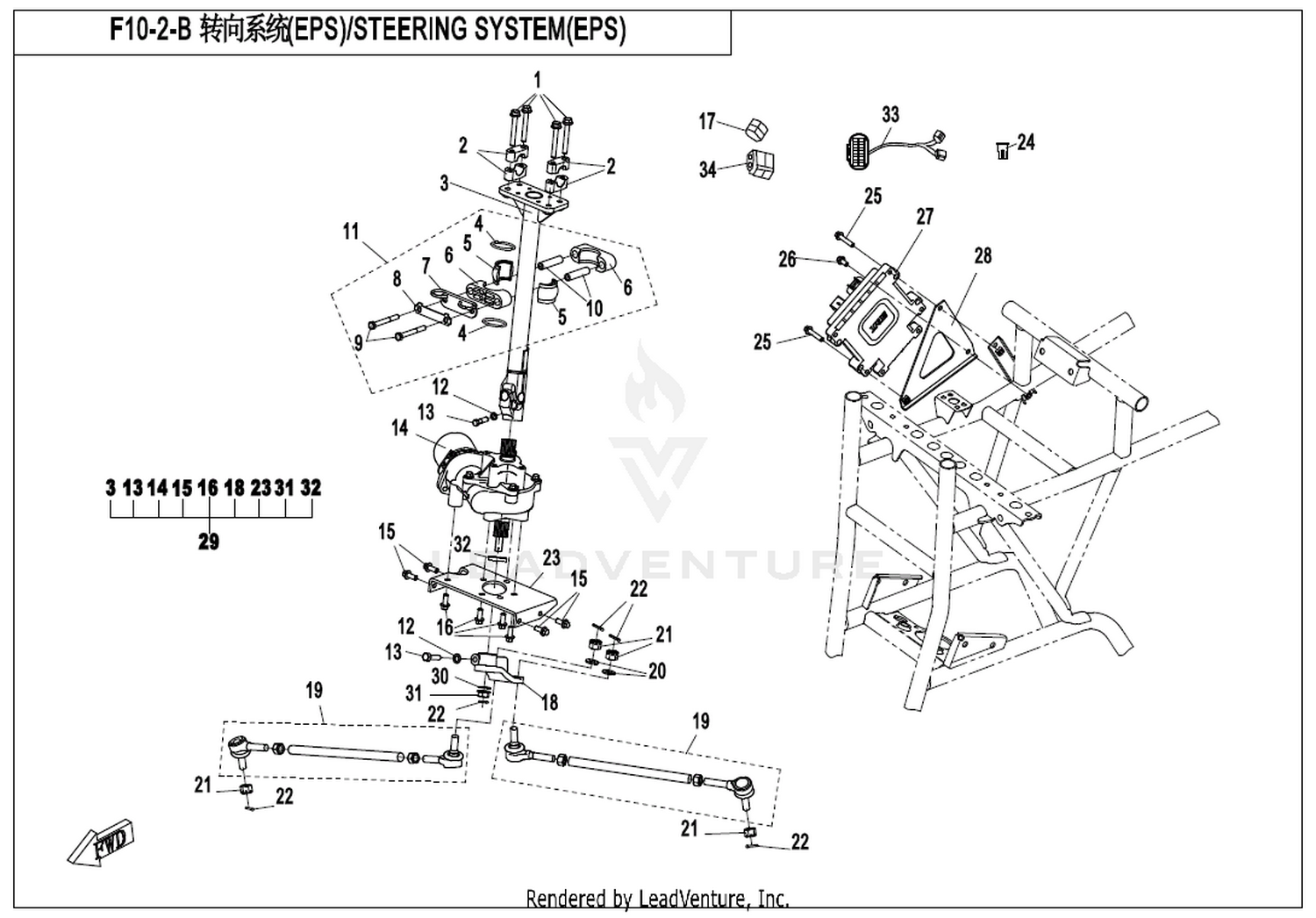

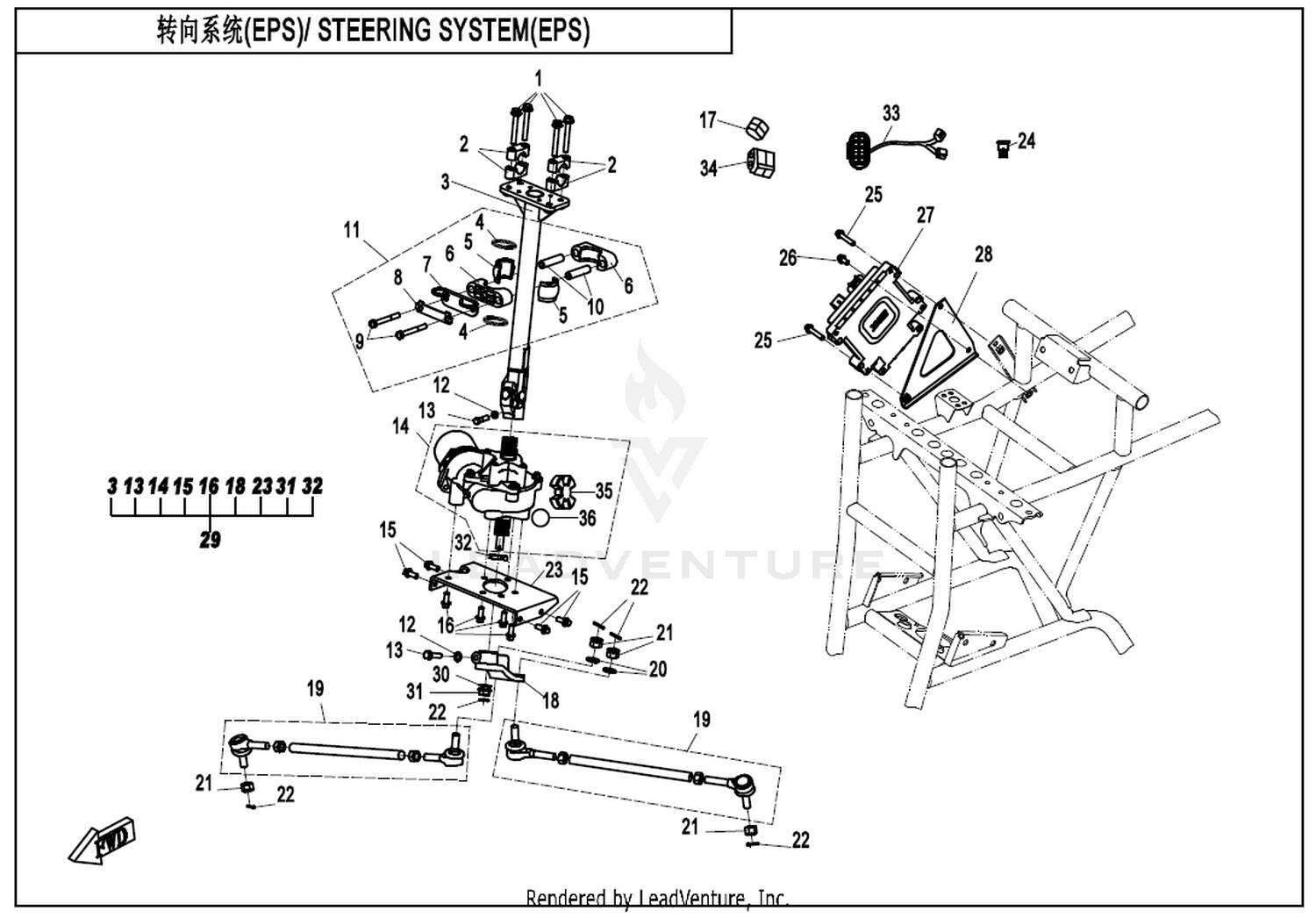

Other parts on this diagram — Steering System(Eps)
- #09 30003-080075810 — Bolt M8X75 M8X75
- #11 30006-080025810 — Bolt M8×25
- #22 30903-0201610 — Cotter Pin F2×16
- #23 30306-120112 — Washer F12@Color Zinc Trivalent Chromium
- #24 7020-150103 — Fuse 60A 60A
- #04 30502-032800N — O-Ring 32X1.8
- #10 7020-100604-00001 — Bushing
- #15 30006-102020810 — Bolt M10X1.25X20 M10X1.25X20
- #23 9CR6-102200 — Plate, Steering Stem
- #15 30204-122810 — Nut M12×1.25
- #29 7020-106000-20000 — Eps System Assy
- #05 7020-100602 — Inner Bushing, Steering Shaft Spherical
- #11 7020-1006A0 — Bushing, Steering Shaft
- #18 9CR6-102001 — Steering Arm
- #06 30006-060030810 — Bolt M6×30
- #32 9CR6-103003 — Spline Sleeve
- #06 7020-100601-00001 — Outer Bushing, Steering Shaft Spherical
- #07 30303-080112 — Washer F8@Color Zinc Trivalent Chromium
- #19 9010-100530-20000 — Steering Rod
- #08 30006-060012870 — Bolt M6X12@Black Zinc
- #33 7020-151010 — Eps Link Cable
- #01 30006-080055810 — Bolt M8×55
- #07 7020-100610-10000 — Linking Plate Assy
- #16 9CR6-102003 — Bolt M8X35 M8X35
