Verified fitment — 1 vehicle
Fitment is sourced from official parts catalogues, listed per catalogue market.
United Kingdom (1)

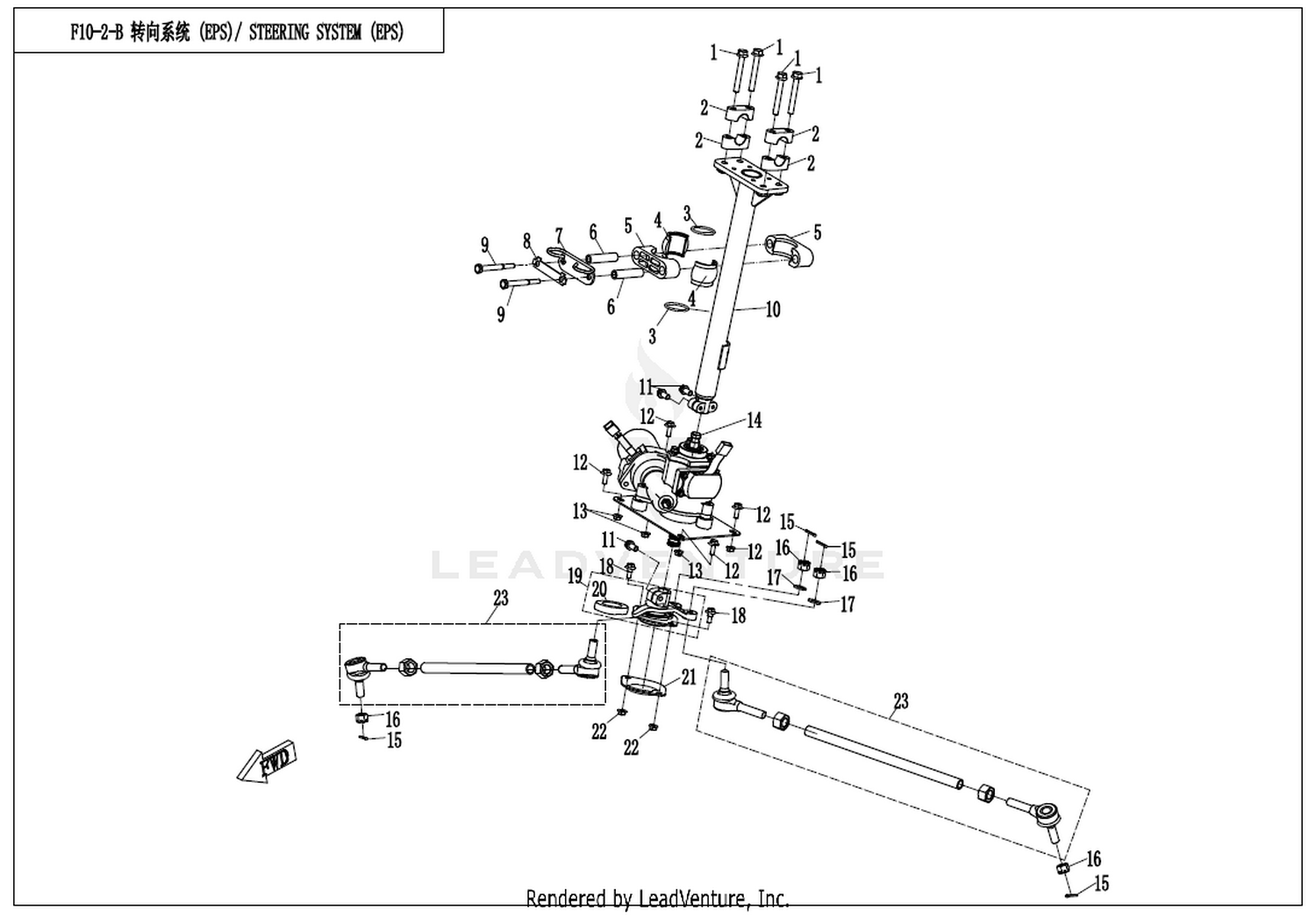

Location in exploded diagrams
Other parts on this diagram — Steering System(Eps)
- #06 7020-100601-00001 — Outer Bushing, Steering Shaft Spherical
- #11 30006-080025810 — Bolt M8×25
- #24 30306-100112 — Washer F10
- #19 9010-100530-20000 — Steering Rod
- #10 7020-100604-00001 — Bushing
- #04 30006-060016870 — Bolt M6×16
- #06 7020-100001 — Bolt M8X22 Military Green
- #01 30006-080055810 — Bolt M8×55
- #07 7020-100610-10000 — Linking Plate Assy
- #14 30204-060810 — Nut M6
- #02 9DSV-100001-6K01 — Handlebar Block
- #08 7020-100603 — Locking Piece
- #14 7020-100400 — Eps
- #19 7020-100600 — Bearing, Outer Spherical 205
- #04 30502-032800N — O-Ring 32X1.8
- #09 30003-080075840 — Needs Description
- #22 30903-0201610 — Cotter Pin F2×16
- #07 7020-100301-10000 — Seat, Steering Shaft
- #05 7020-100602 — Inner Bushing, Steering Shaft Spherical
- #10 7020-100320 — Steering Shaft Assy
- #21 9010-100002 — 1-Type Nut M10X1.25
- #15 30204-080810 — Lock Nut M8
