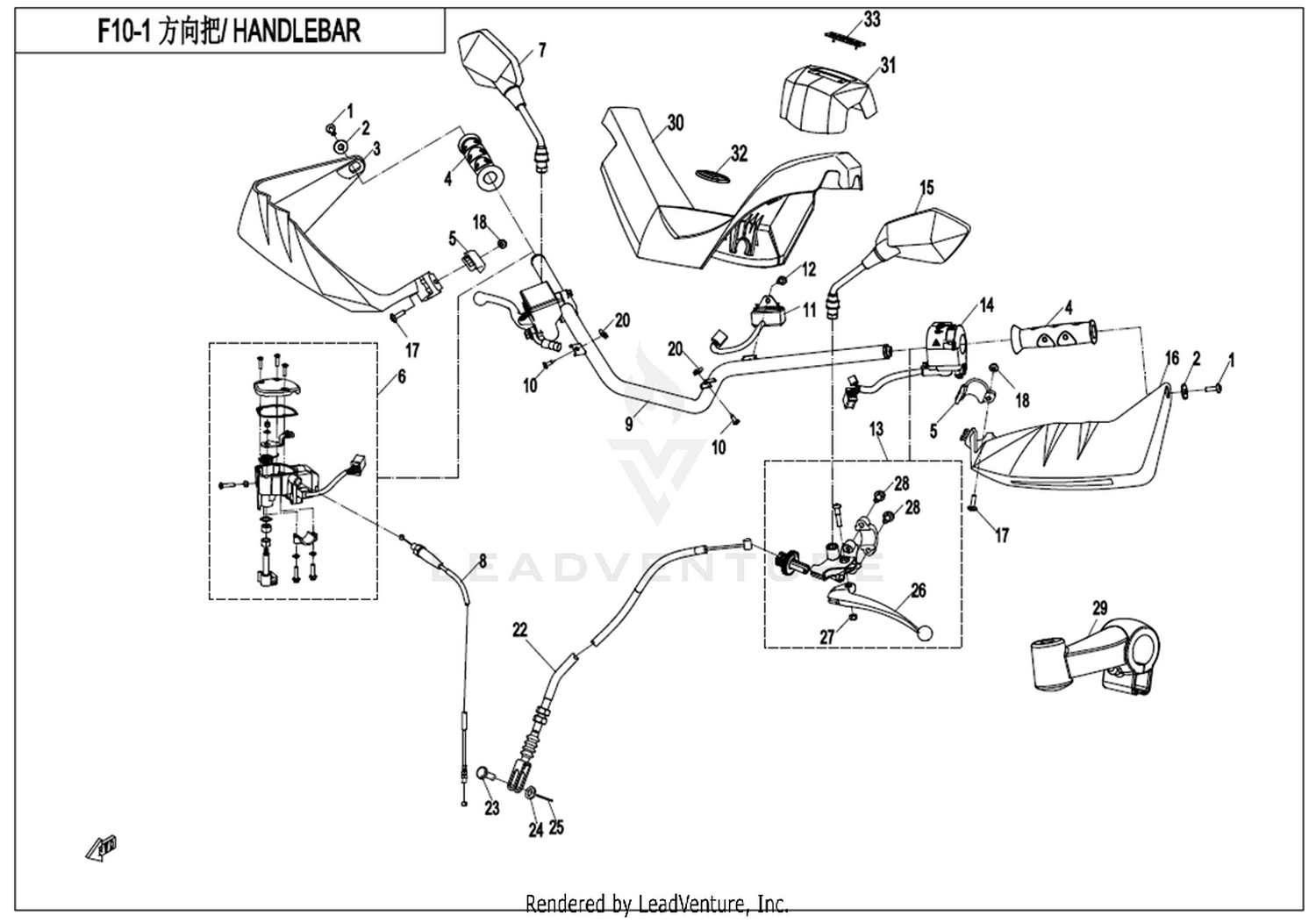

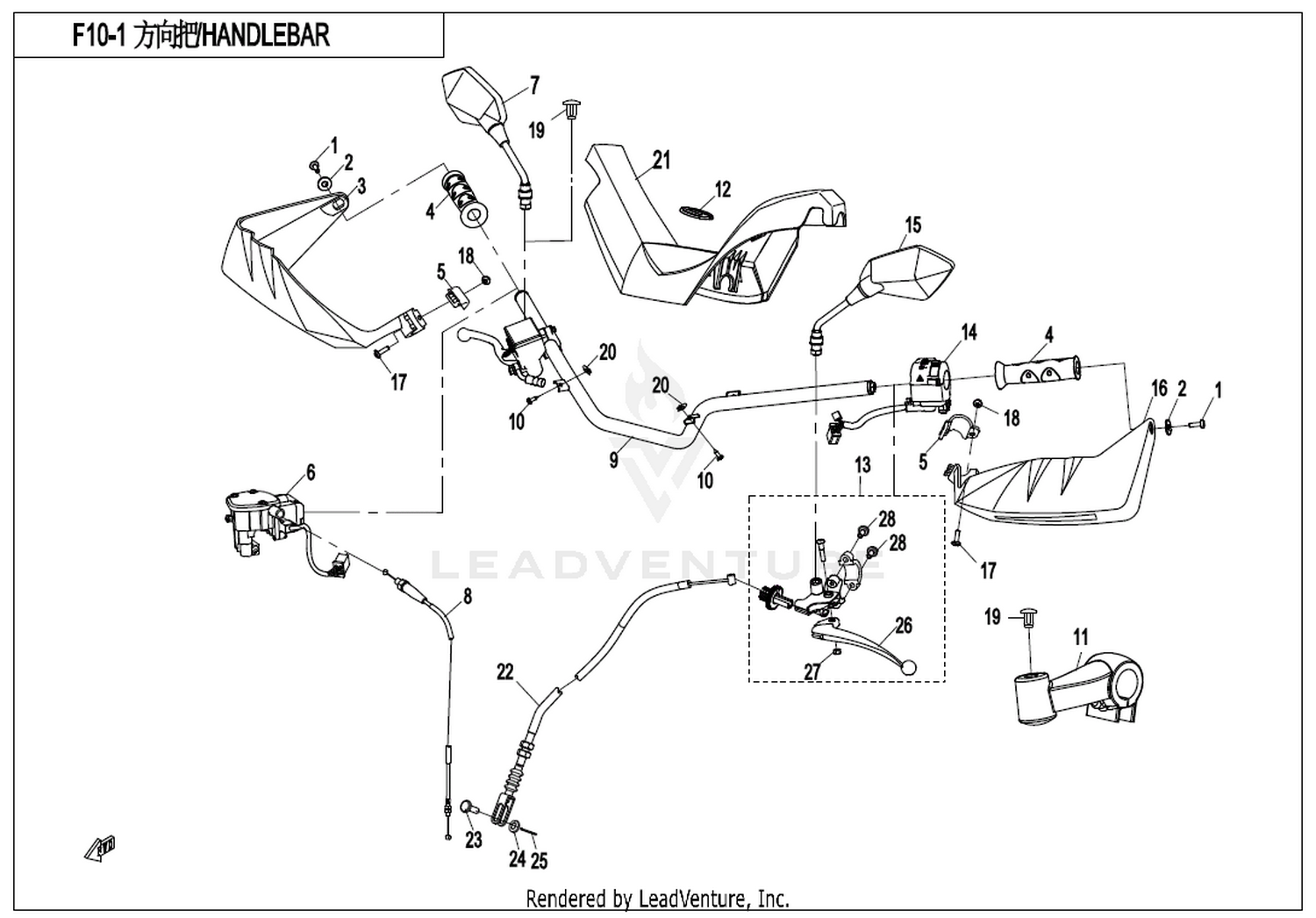

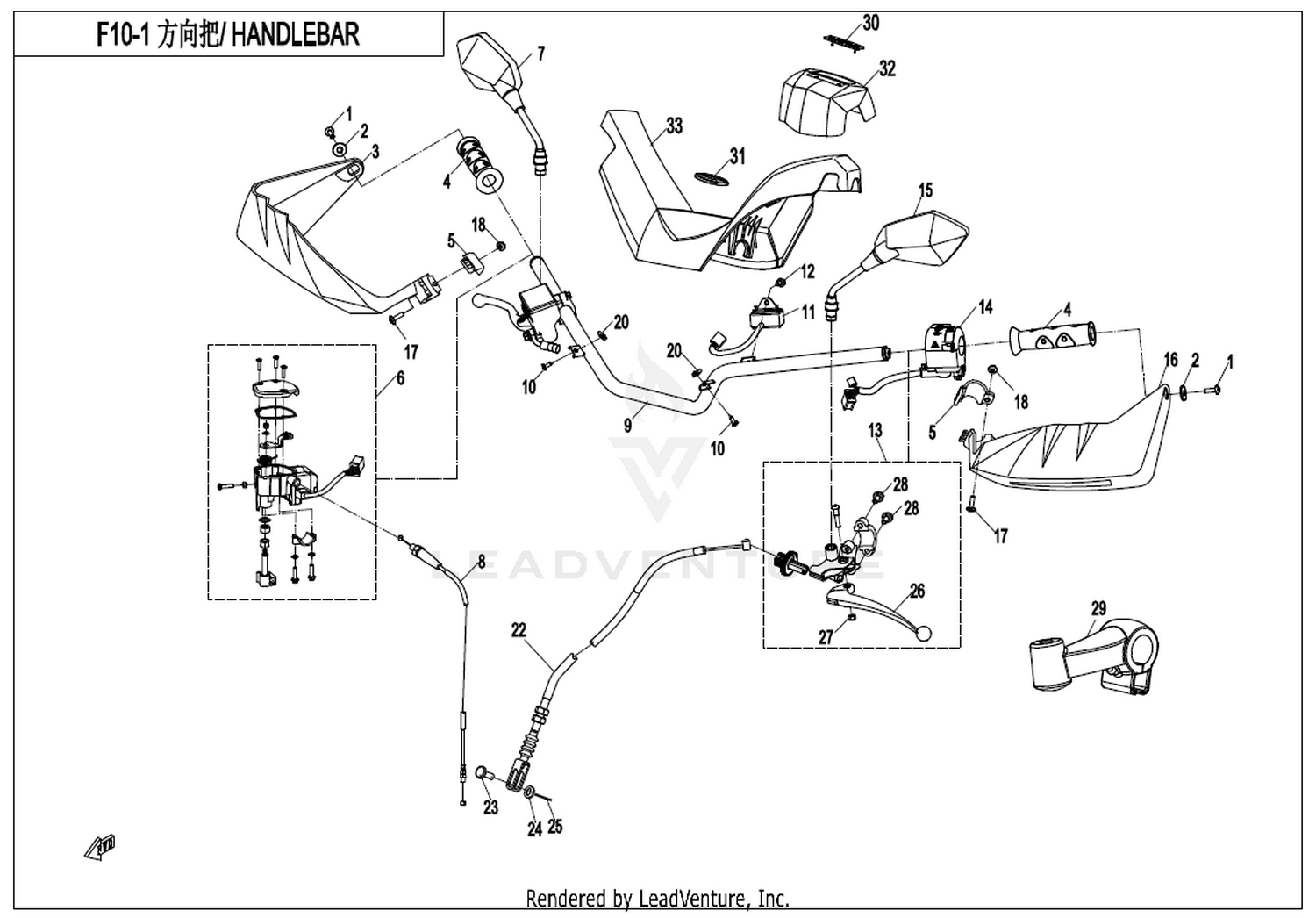

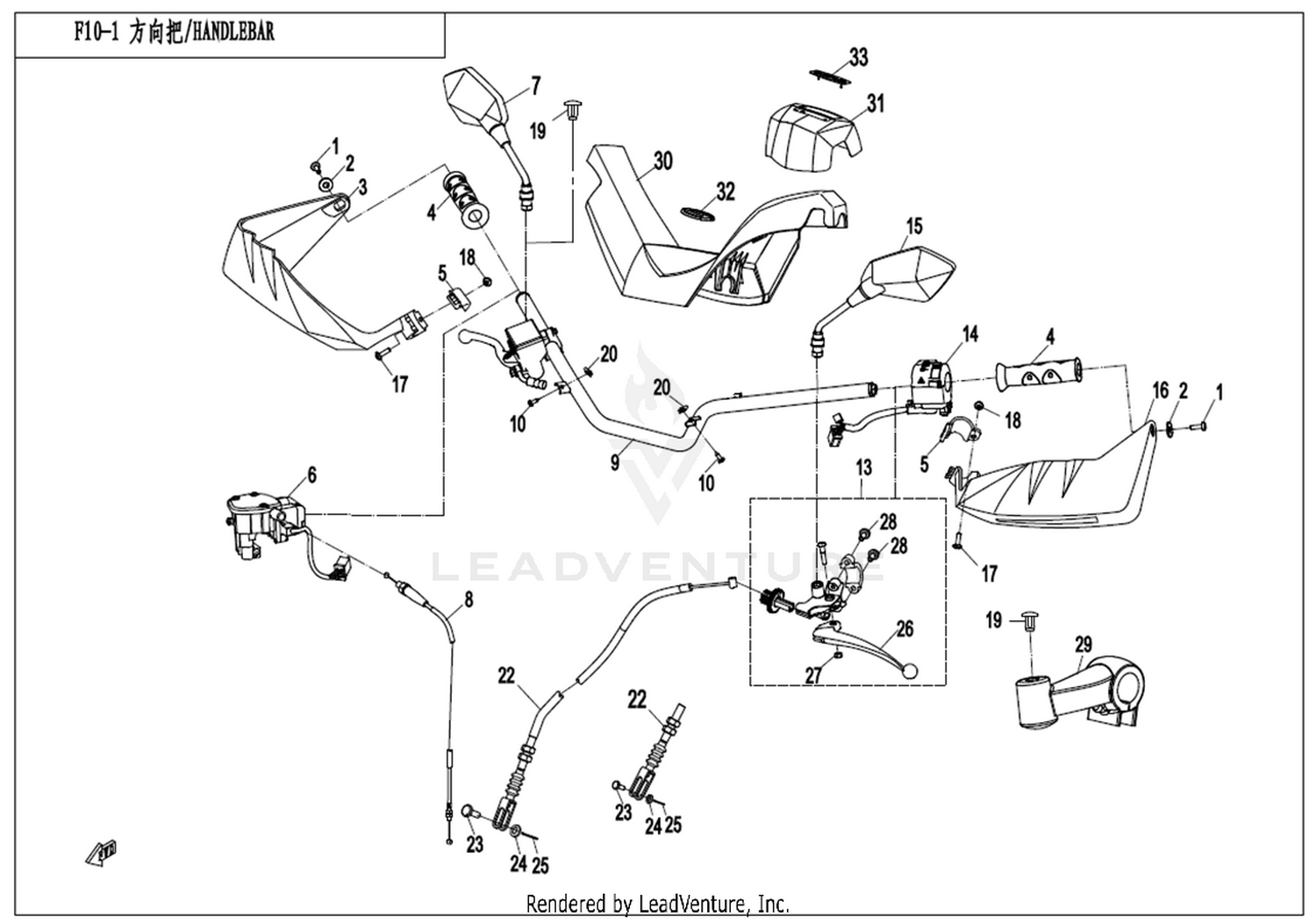

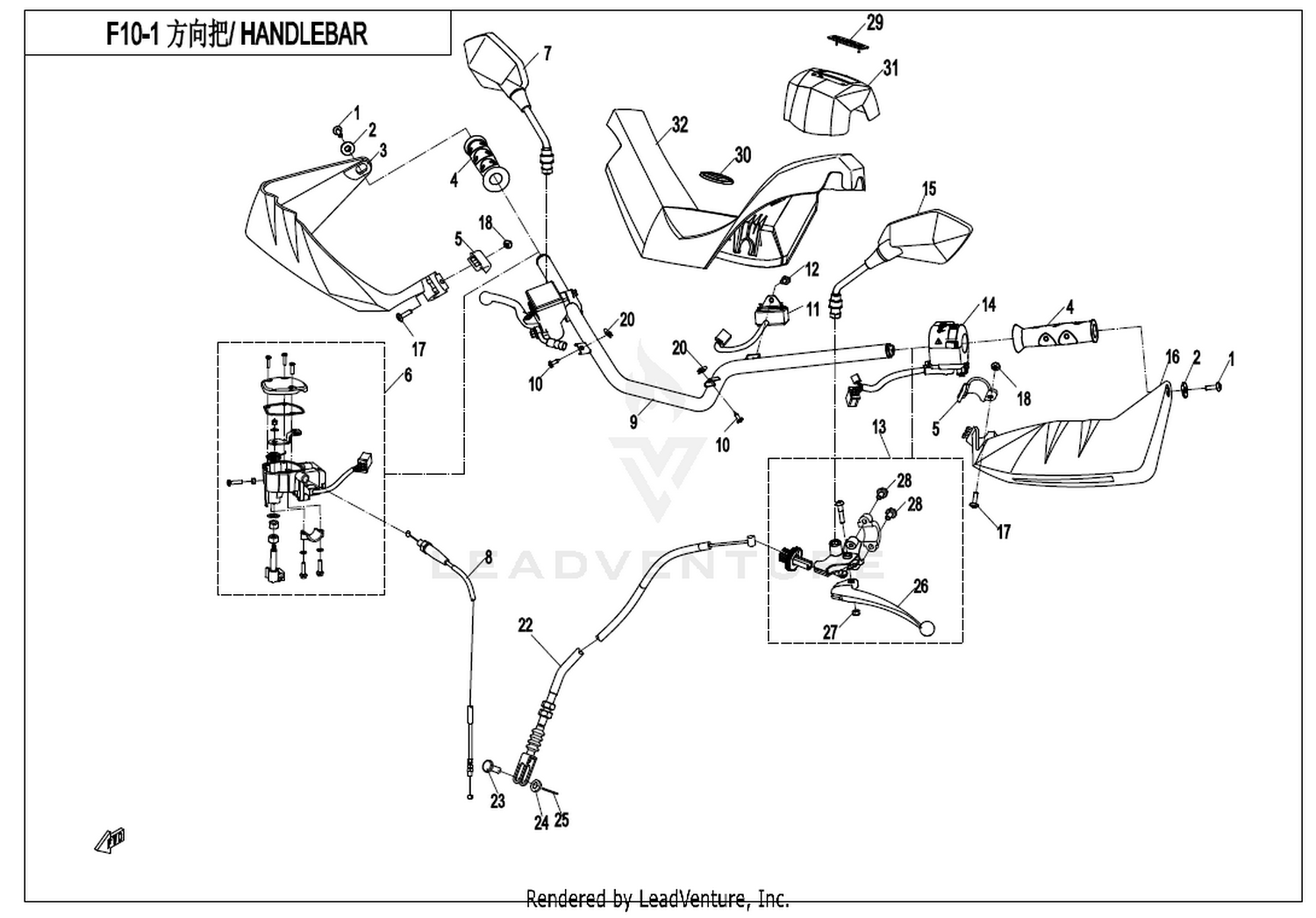

Location in exploded diagrams
Other parts on this diagram — Handlebar
- #05 7020-100204 — Hand Guard Clamp
- #21 30006-060010840 — Bolt M6X10 Military Green
- #30 30112-060016410 — Screw Assy M6X16@Color Zinc Trivalent Chromium
- #25 30903-0162010 — Cotter Pin Gb & T91 & 1.6×20
- #06 7020-160700-00002 — Rh Handlebar Switch Assy Ordinary Plug
- #13 9010-080250-1000 — Lever, Interlocking Brake
- #48 30200-060810 — Nut M6
- #26 9010-080251 — Lever
- #31 7020-100205 — Top Cover, Handlebar
- #14 A000-040703 — Inner Hex Screw M6X20
- #07 9AY0-200300 — Rear View Mirror Assy, Rh
- #14 7020-160600-1000 — Lh Handlebar Switch Assy
- #04 5020-040049 — Clamp St4.8 St4.8
- #14 30204-060810 — Nut M6
- #09 30305-080112 — Washer F8
- #08 7020-100510 — Throttle Cable
- #14 7020-160600 — Lh Handlebar Switch Assy
- #22 7020-080230 — Rear Brake Cable
- #28 30006-060022840 — Needs Description
- #03 7020-100203 — Rh Hand Guard Cover
- #09 7020-100100 — Handlebar Assy Electrophoresis Black
- #15 9AY0-200200 — Lh Rearview Mirror Assy
- #40 30904-0602010 — Pin Shaft 6X20@Color Zinc Trivalent Chromium
- #33 7020-190206 — Label, Cfmoto
