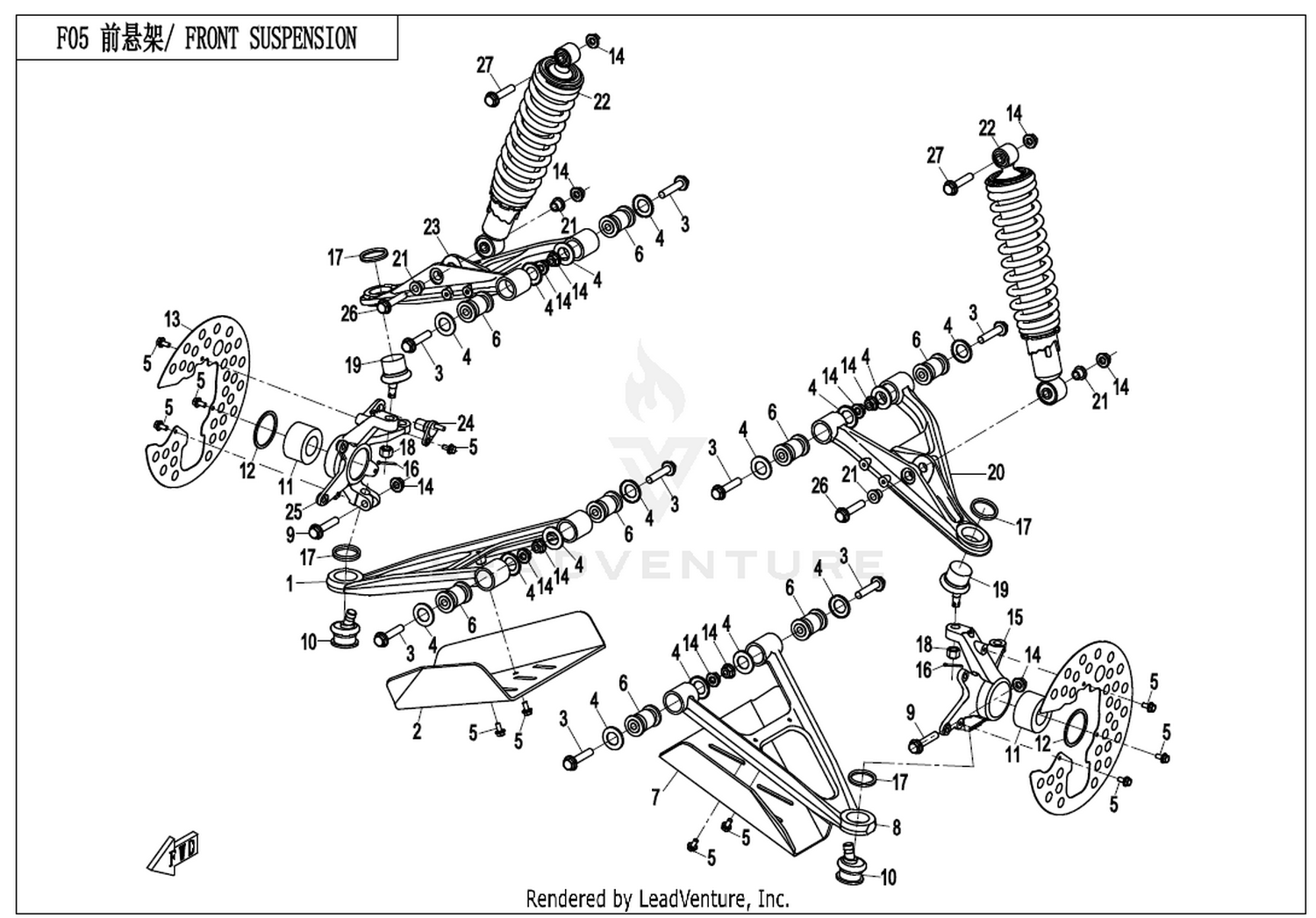

Location in exploded diagrams
Other parts on this diagram — Front Suspension(Alum)
- #02 7020-050004 — Panel, Front Rh Suspension
- #08 30006-060012870 — Bolt M6X12@Black Zinc
- #21 9GQ0-050710 — Bearing, Hub
- #15 9010-050002 — Lh Steering Knuckle
- #21 9010-100002 — 1-Type Nut M10X1.25
- #25 30800-05505 — Circlip For Hole Black
- #19 9010-050700-1000 — Top Ball Pin Ccvi
- #22 30006-102070810 — Bolt M10X1.25X70@Color Zinc Trivalent Chromium
- #12 9010-050500 — Cushion Sleeve Assy
- #03 30006-102050810 — Bolt M10×1.25×50
- #13 9010-030008-1000 — Guard, Brake Disc Same With Cf800-2,Electrophoresis Black
- #17 30903-0252610 — Cotter Pin 2.5X26
- #20 401B-050401-10001 — Front Upper Lh Swing Arm In Addition To X8 Facelift(2016) Vehicles
- #21 401B-050201-10001 — Front Upper Rh Swing Arm In Addition To X8 Facelift(2016) Vehicles
- #01 7020-050101 — Front Rh Lower Swing Arm
- #11 9010-050003 — Cushion Sleeve Cap
- #07 7020-050003 — Panel, Front Lh Suspension
- #10 9010-050800-20000 — Lower Ball Pin Assy
- #04 30204-102810 — Nut M10×1.25
- #20 30801-03405 — Circlips For Shaft 34
- #21 9010-050001 — Rh Steering Knuckle
