Location in exploded diagrams

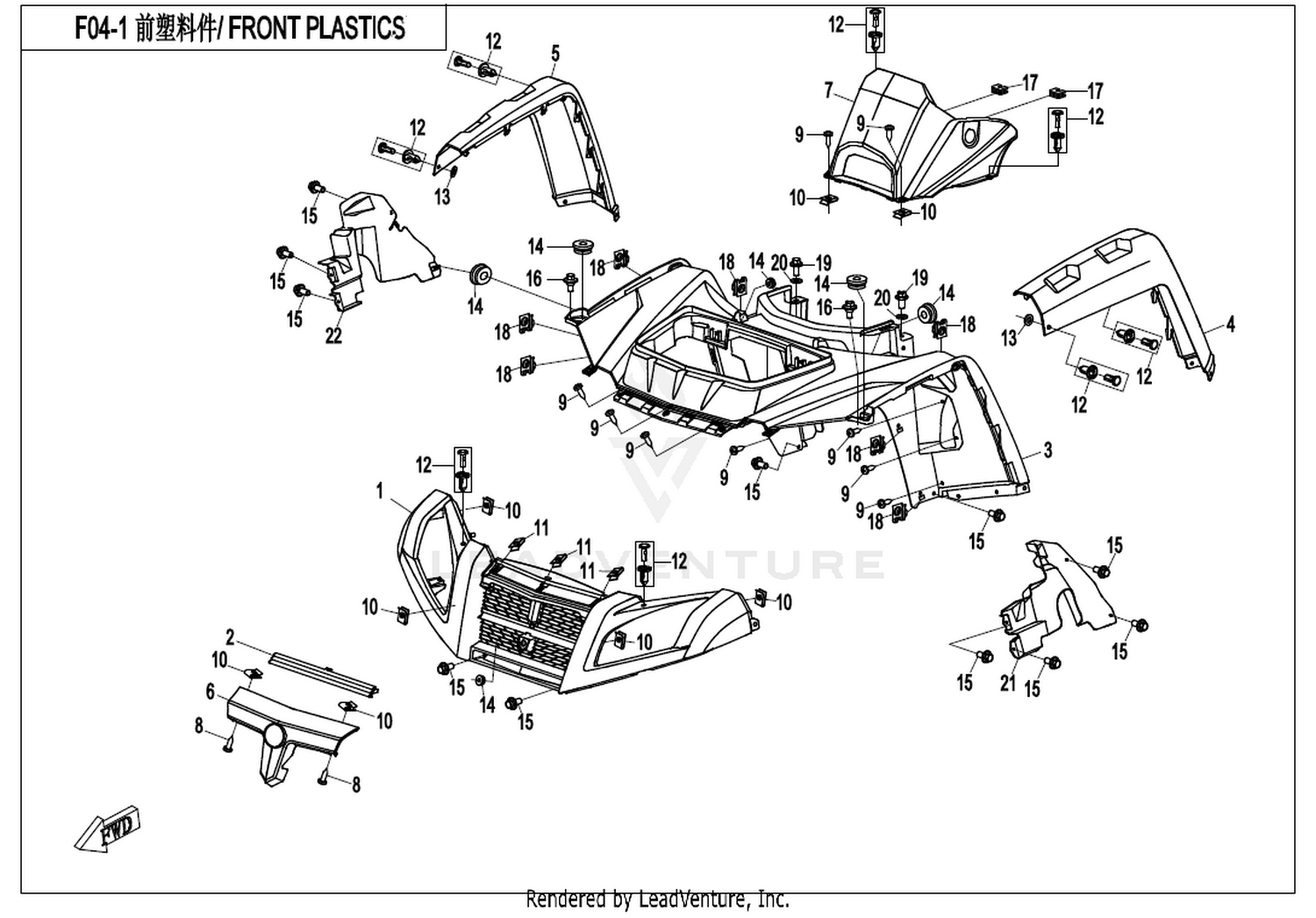

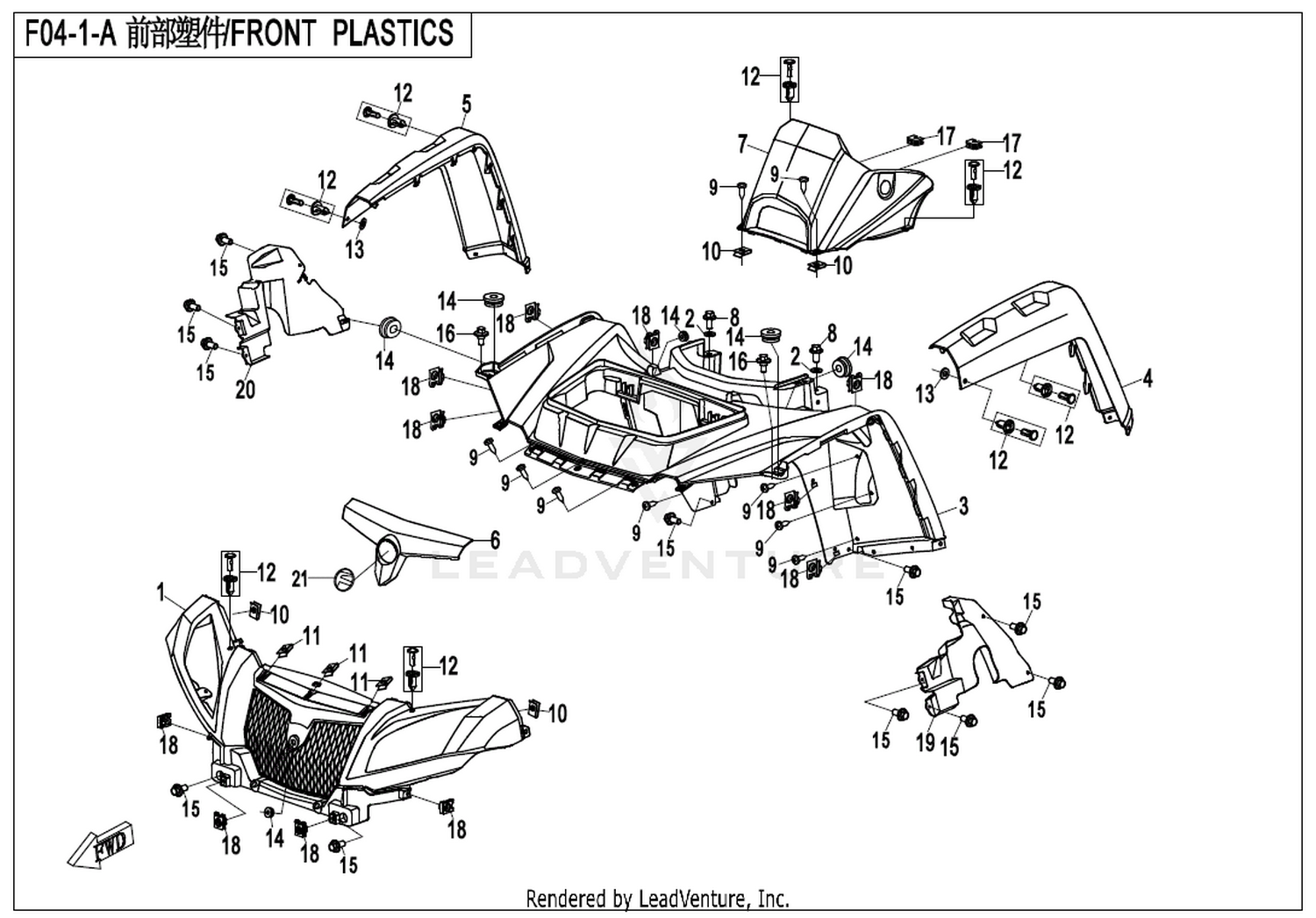

Other parts on this diagram — Front Plastics(Facelift)
- #03 7020-040101-0P500 — Front Fender Injected Pearl Blue
- #03 7020-040101-0B50 — Front Fender Titanium Grey Gloss
- #06 7020-040104-1Y600 — Front Deco Plate Crystal Orange
- #05 30006-060020870 — Bolt M6×20
- #22 0180-015003 — Rubber Sleeve
- #03 7020-040101-0P600 — Front Fender Injected Pearl Black
- #04 7020-040102 — Front Edging, Lh
- #06 7020-040104-1V200 — Front Deco Plate Pearl White
- #10 30110-480160010 — Self-Tapping Screw St4.8X16@Color Zinc Trivalent Chromium
- #08 30006-060012870 — Bolt M6X12@Black Zinc
- #12 9060-190001 — Cfmoto Logo 58X49 58X49
- #03 7020-040101-0RE00 — Front Fender True Timber Camo
- #05 7020-040103 — Front Edging, Rh
- #06 7020-040104-1P100 — Front Deco Plate Injected Black
- #19 8010-000002 — Clamp St4.2
- #10 8010-000004 — Bolt M6X14 M6X14
- #01 7020-040111-20000 — Headlight Panel
- #03 7020-040101-0P10 — Front Fender Injected Black
- #06 7020-040104-1P600 — Front Deco Plate Injected Pearl Black
- #06 7020-040104-1P500 — Front Deco Plate Injected Pearl Blue
- #04 5020-040049 — Clamp St4.8 St4.8
- #17 7020-040207 — Air Filter Guard Rubber Sleeve
- #36 30306-060112 — Washer F6
- #03 7020-040101-0Y60 — Front Fender Crystal Orange
