Verified fitment — 8 vehicles
Fitment is sourced from official parts catalogues, listed per catalogue market.
Manufacturer reference prices
Catalogue / RRP reference only — the live MotoDoc price is on the product page.
| Currency | Reference price | Type | Source |
|---|---|---|---|
| EUR | 8.43 | listing | cfmoto.quadzillaparts.co.uk |
| GBP | 7.80 | listing | cfmoto.quadzillaparts.co.uk |

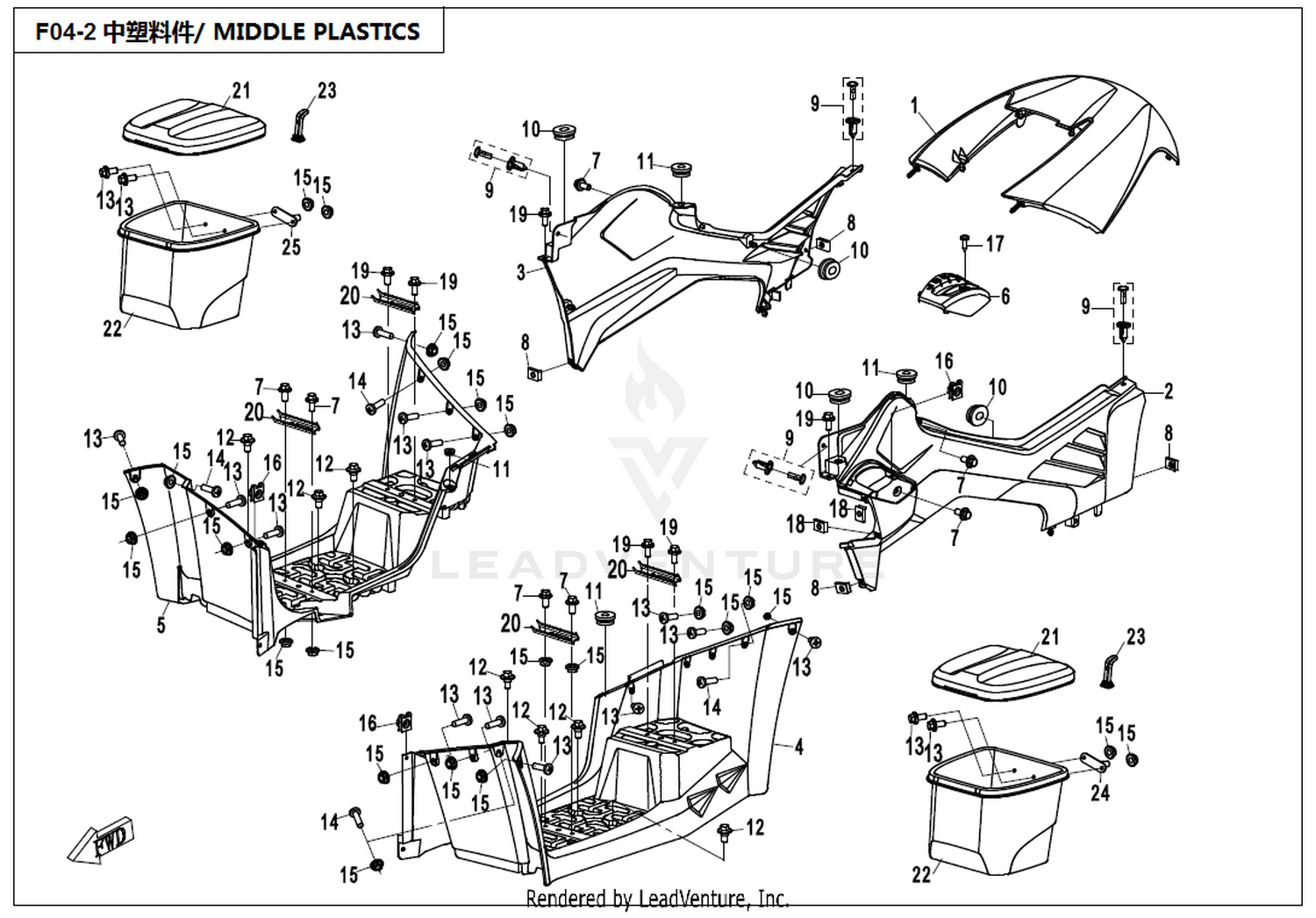

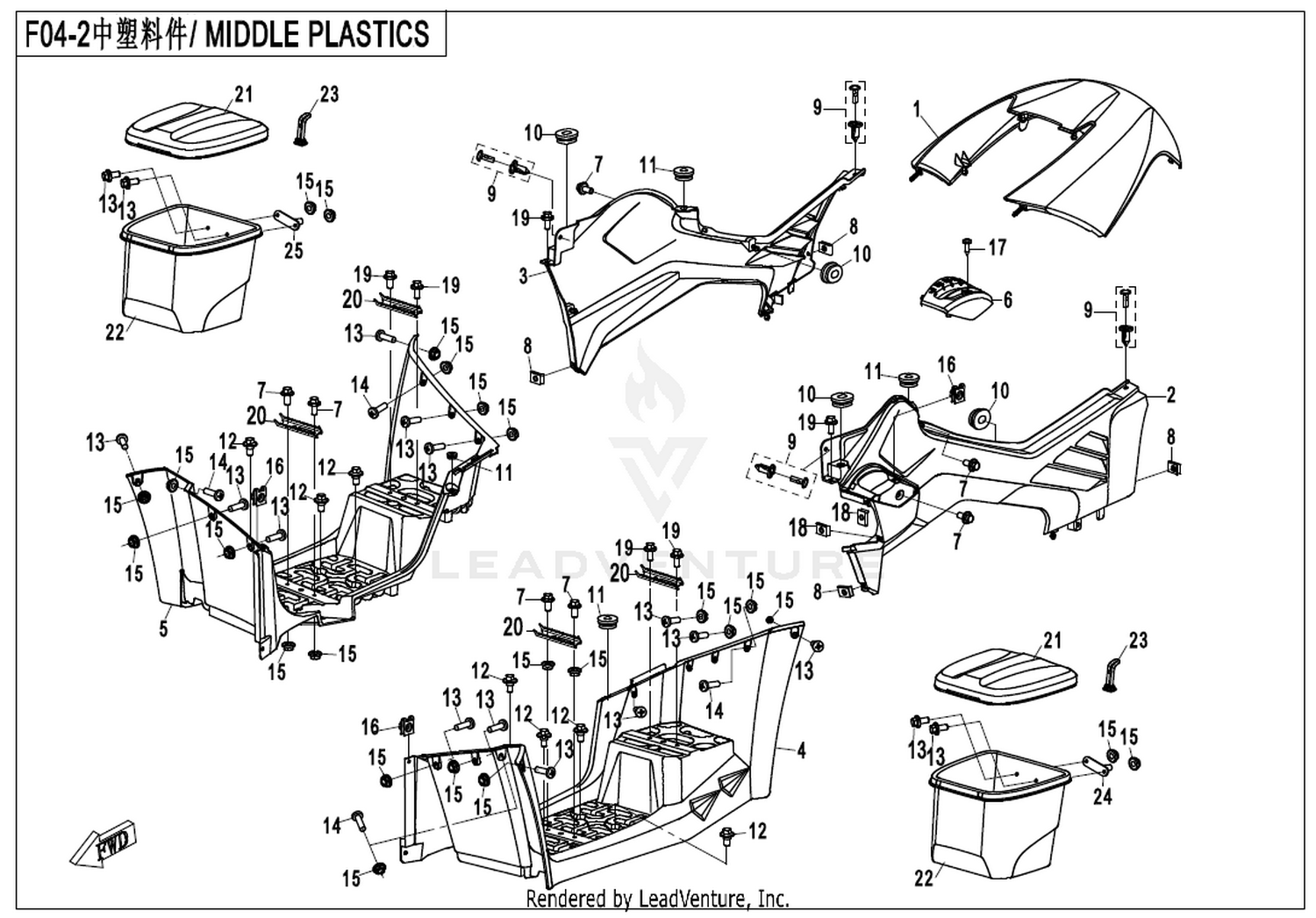

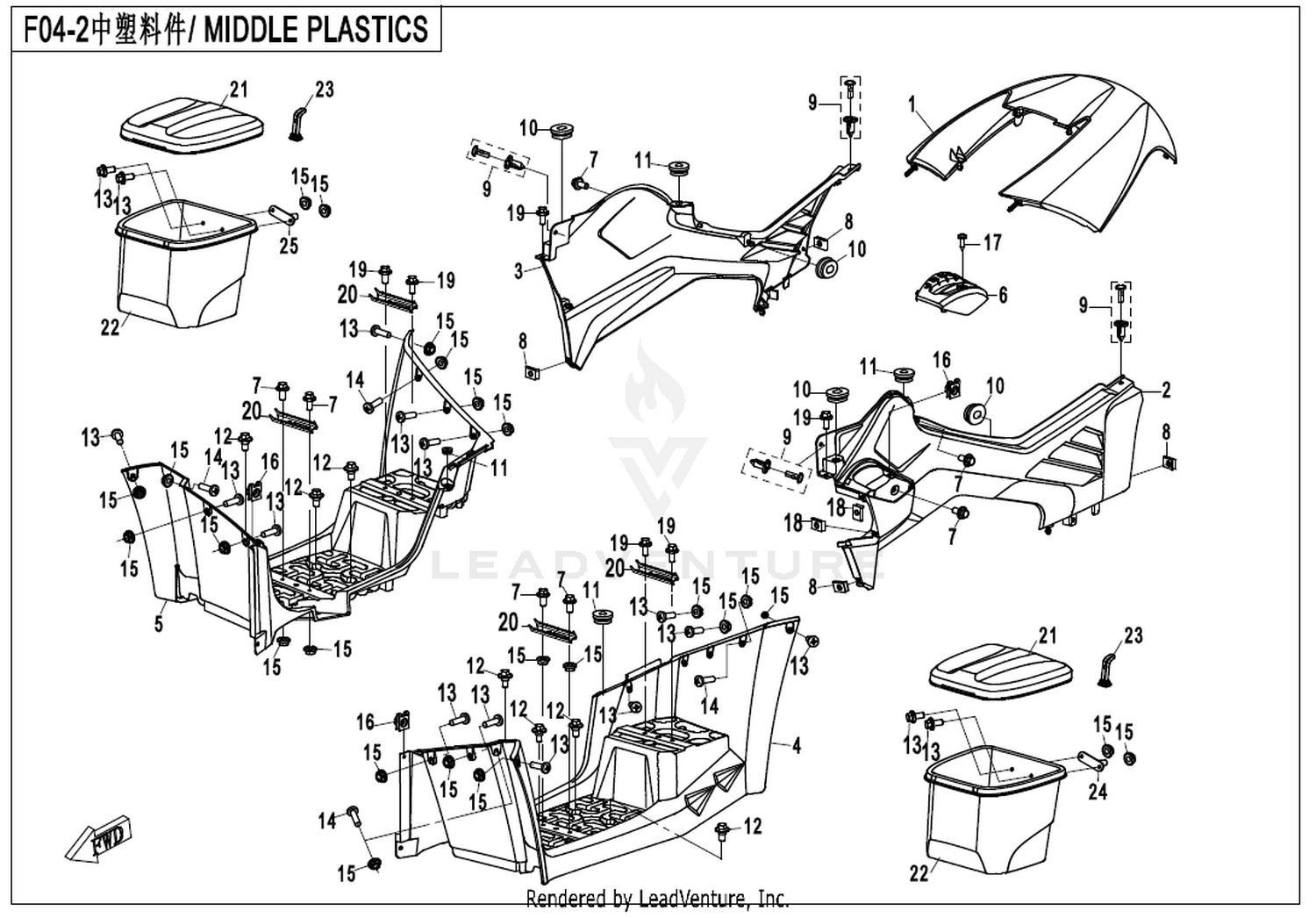

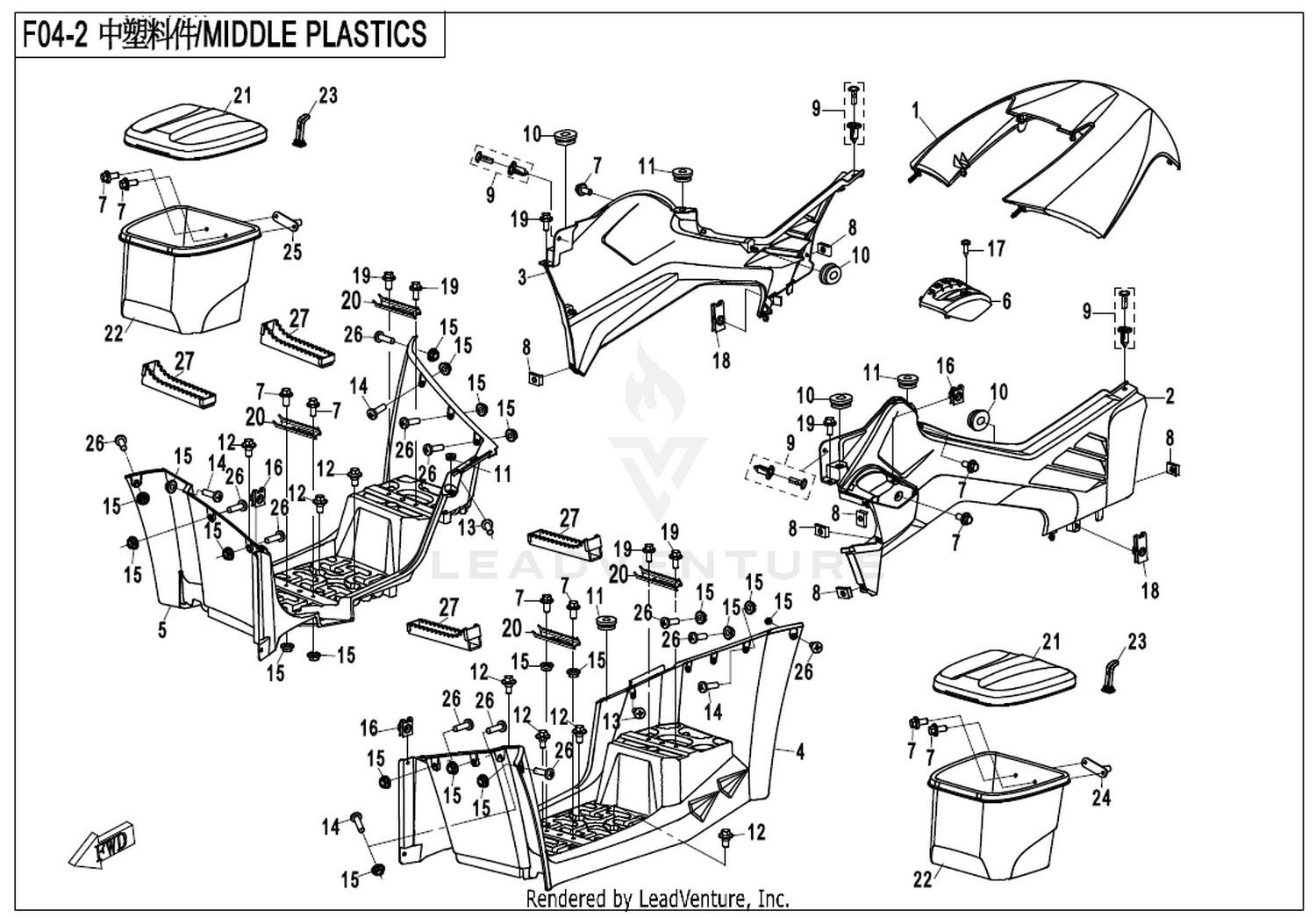

Location in exploded diagrams
Other parts on this diagram — Middle Plastics
- #01 7020-040202-0Y60 — Air Filter Guard Crystal Orange
- #01 7020-040202-0E40 — Air Filter Guard Metal Blue
- #02 7020-040203-0R40 — Lh Panel Fire Red
- #03 7020-040204-0B00 — Rh Panel Black
- #08 30006-060012870 — Bolt M6X12@Black Zinc
- #30 30112-060016410 — Screw Assy M6X16@Color Zinc Trivalent Chromium
- #05 30006-060020870 — Bolt M6×20
- #01 7020-040202-0B50 — Air Filter Guard Titanium Grey Gloss
- #02 7020-040203-0B50 — Lh Panel Titanium Grey Gloss
- #02 7020-040203-0W00 — Lh Panel New Maple Camo
- #03 7020-040204-0R40 — Rh Panel Fire Red
- #04 5020-040049 — Clamp St4.8 St4.8
- #14 30112-060020440 — Needs Description
- #20 7020-030007 — Jag, Foot Pedal Steel
- #25 7020-040290 — Side Box Rh Bracket Assy
- #01 7020-040202-0V20 — Air Filter Guard Pearl White
- #02 7020-040203-0Y60 — Lh Panel Crystal Orange
- #03 7020-040204-0W00 — Rh Panel New Maple Camo
- #03 7020-040204-0V20 — Rh Panel Pearl White
- #15 9060-040310 — Clamp Assy
- #14 30204-060810 — Nut M6
- #20 9010-030007 — Jag, Foot Pedal
- #01 7020-040202-0R40 — Air Filter Guard Fire Red
- #02 7020-040203-0V20 — Lh Panel Pearl White
