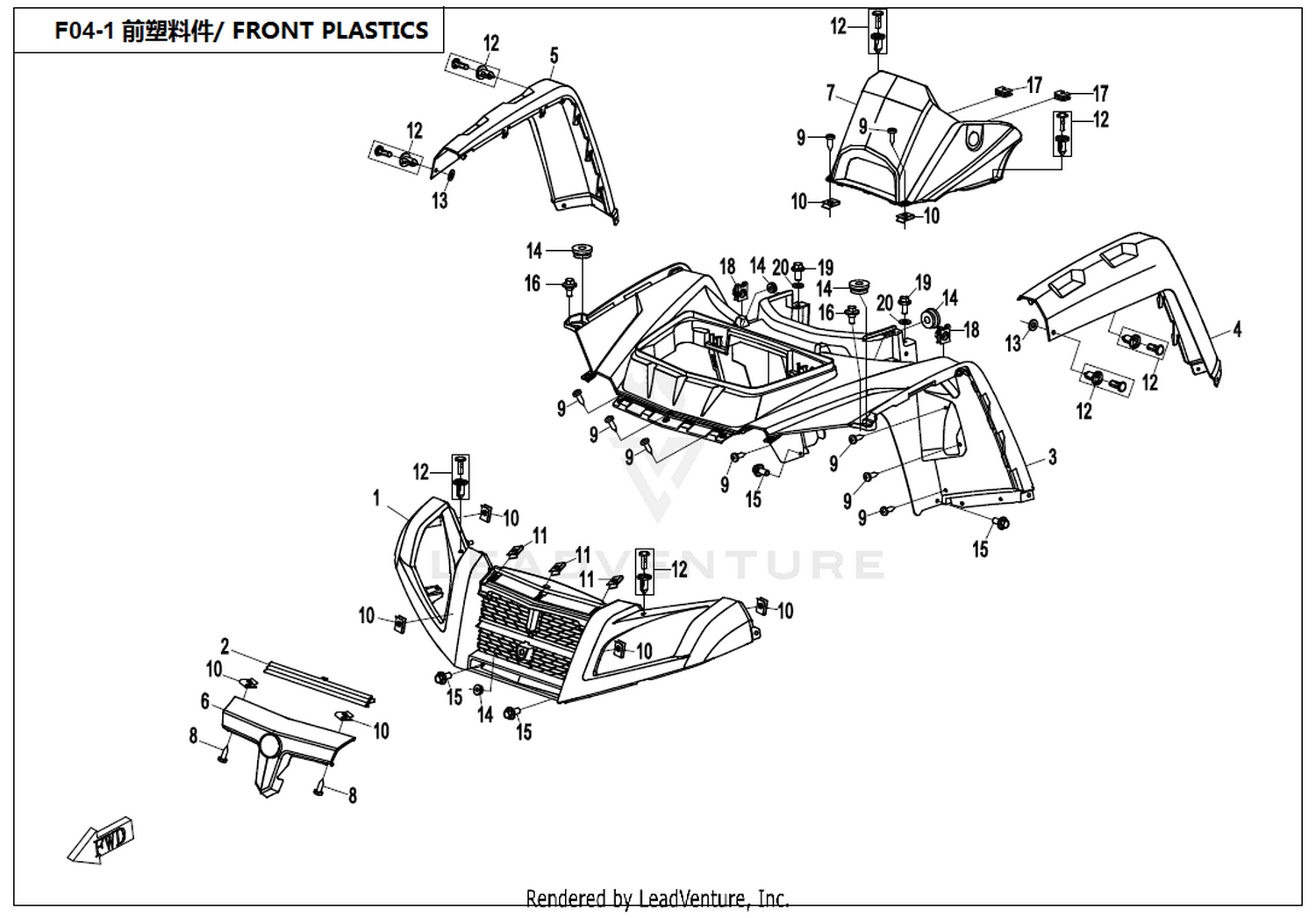

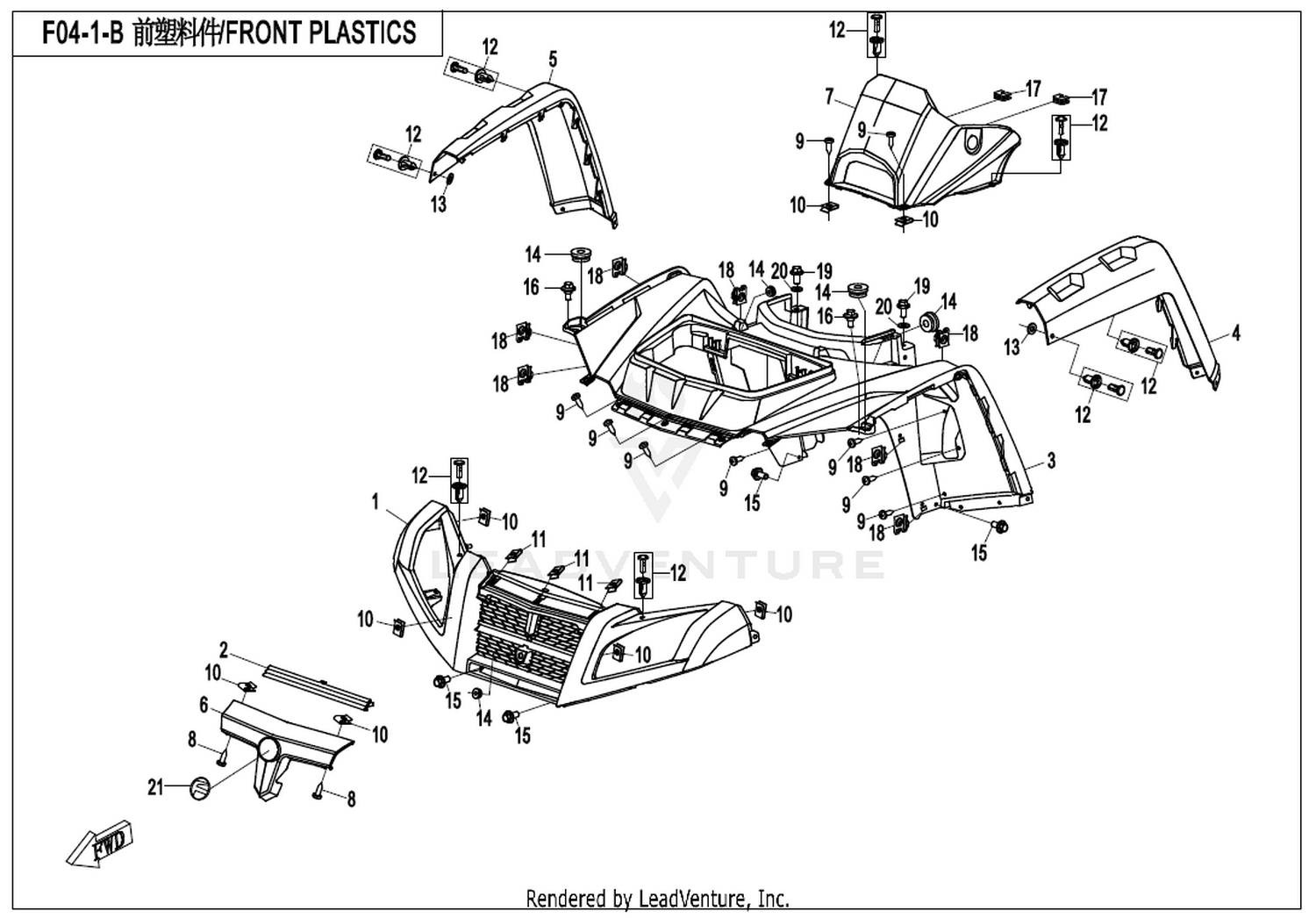

Location in exploded diagrams
Other parts on this diagram — Front Plastics
- #01 7020-040111-10000 — Headlight Panel
- #03 7020-040101-0B50 — Front Fender Titanium Grey Gloss
- #06 7020-040104-0R40 — Front Deco Plate Fire Red
- #06 30306-080112 — Washer F8
- #05 30006-060020870 — Bolt M6×20
- #02 7020-040112-0V10 — Deco Strip Silver White
- #03 7020-040101-0E40 — Front Fender Metal Blue
- #06 7020-040104-0E40 — Front Deco Plate Metal Blue
- #07 30110-421130010 — Self-Tapping Screw St4.2X13@Color Zinc Trivalent Chromium
- #22 0180-015003 — Rubber Sleeve
- #24 30306-060142 — Washer 6
- #03 7020-040101-0V20 — Front Fender Pearl White
- #03 7020-040101-0Y60 — Front Fender Crystal Orange
- #06 7020-040104-0V20 — Front Deco Plate Pearl White
- #09 30110-481160040 — Needs Description
- #08 30006-060012870 — Bolt M6X12@Black Zinc
- #03 7020-040101-0W00 — Front Fender New Maple Camo
- #04 7020-040102 — Front Edging, Lh
- #06 7020-040104-0Y60 — Front Deco Plate Crystal Orange
- #19 8010-000002 — Clamp St4.2
- #10 8010-000004 — Bolt M6X14 M6X14
- #03 7020-040101-0R40 — Front Fender Fire Red
- #05 7020-040103 — Front Edging, Rh
- #06 7020-040104-0B50 — Front Deco Plate Titanium Grey Gloss
