7000-150520POSITIVE CABLE, STARTER MOTOR — Genuine CF MOTO Part
CF MOTOoem
7000-150520 - POSITIVE CABLE, STARTER MOTOR #46
Verified fitment — 12 vehicles
Fitment is sourced from official parts catalogues, listed per catalogue market.
United Kingdom (9)
Manufacturer reference prices
Catalogue / RRP reference only — the live MotoDoc price is on the product page.
| Currency | Reference price | Type | Source |
|---|---|---|---|
| EUR | 31.51 | listing | cfmoto.quadzillaparts.co.uk |
| GBP | 29.14 | listing | cfmoto.quadzillaparts.co.uk |

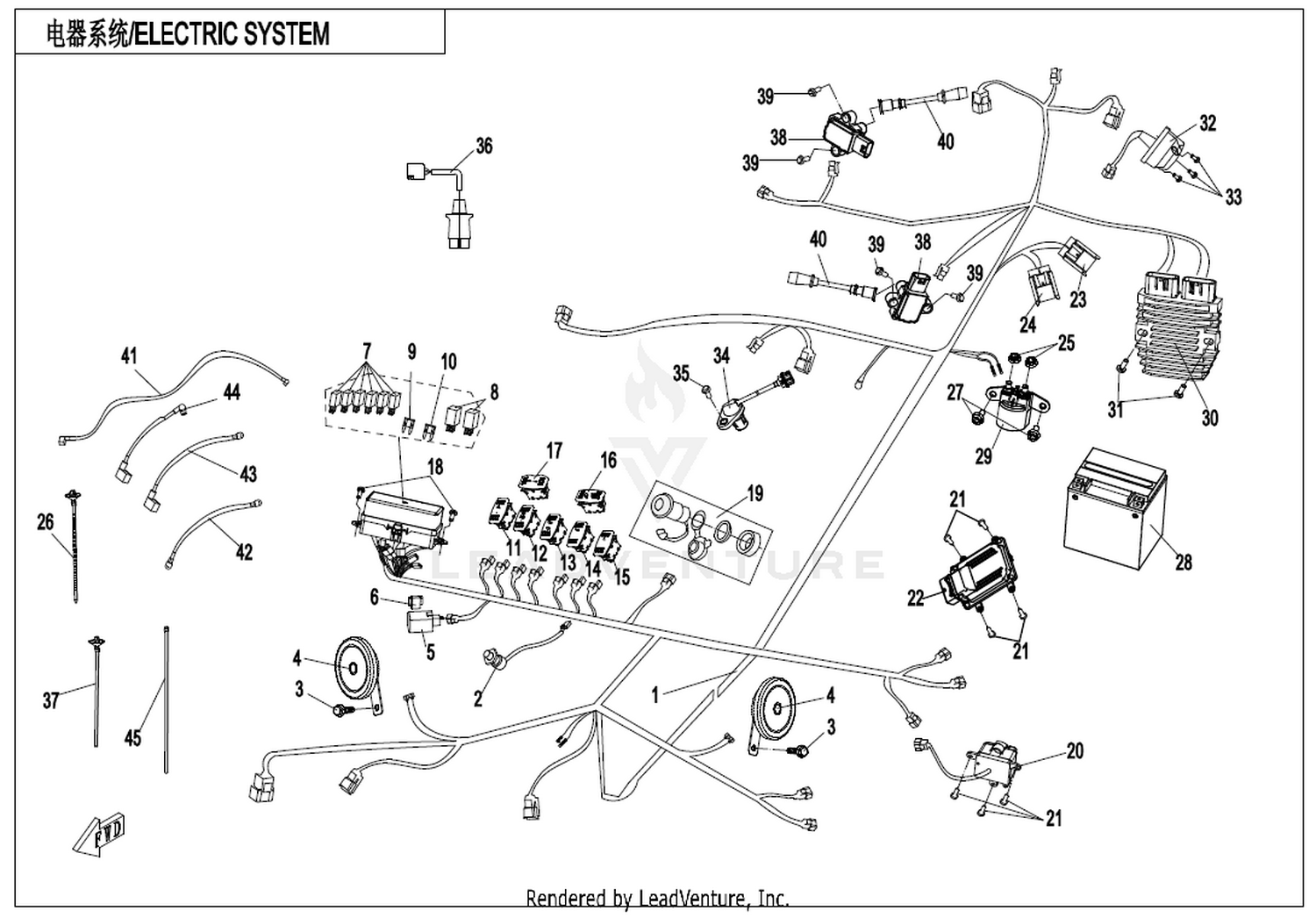

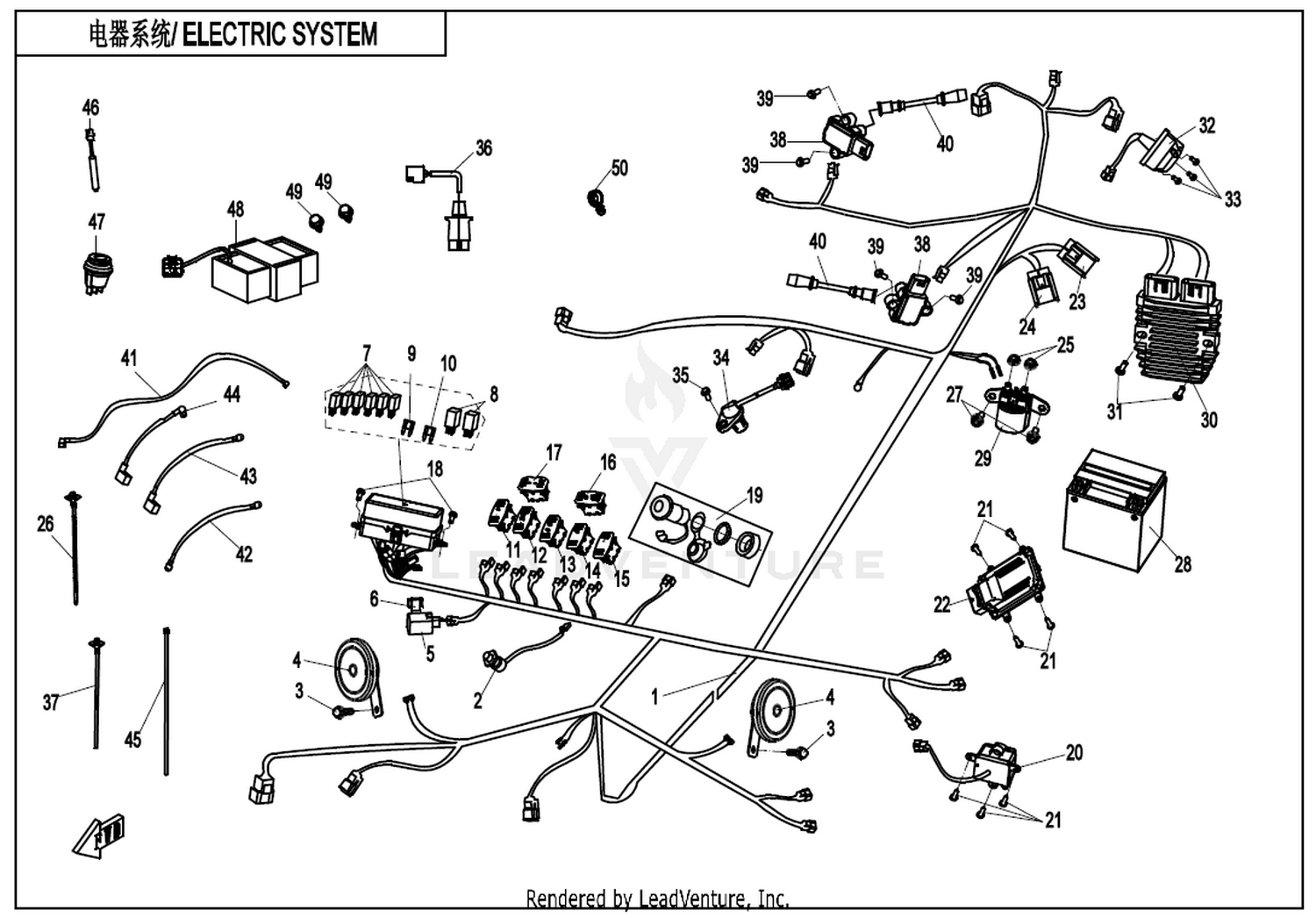

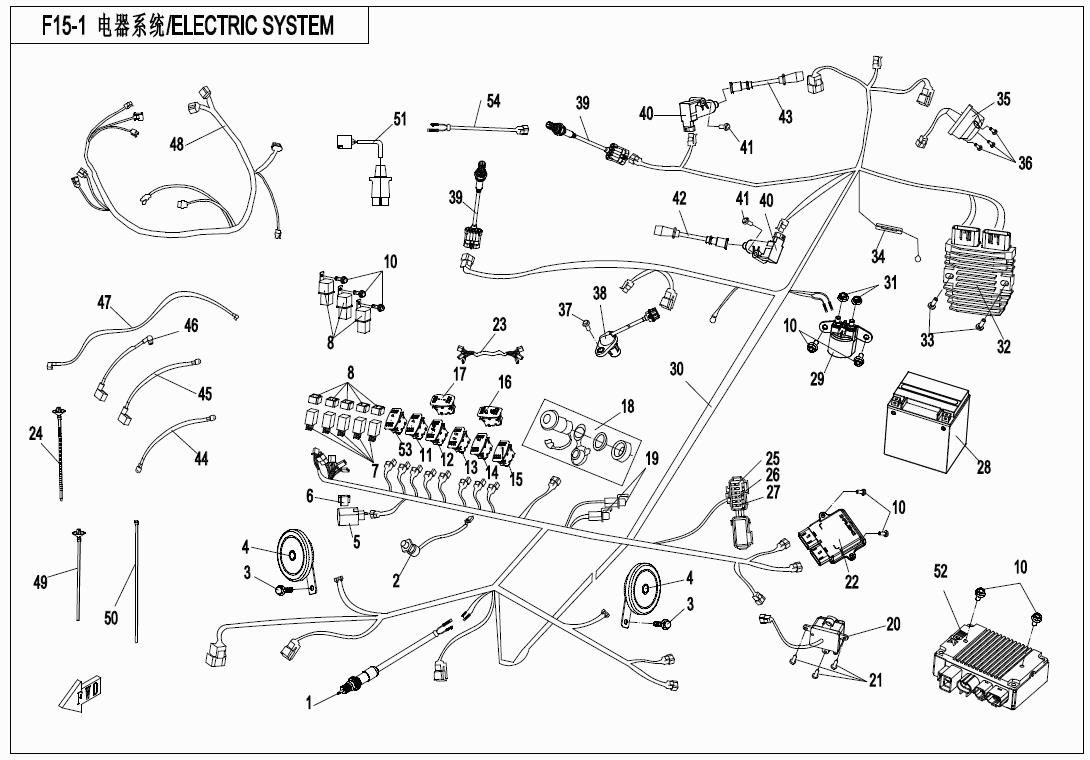

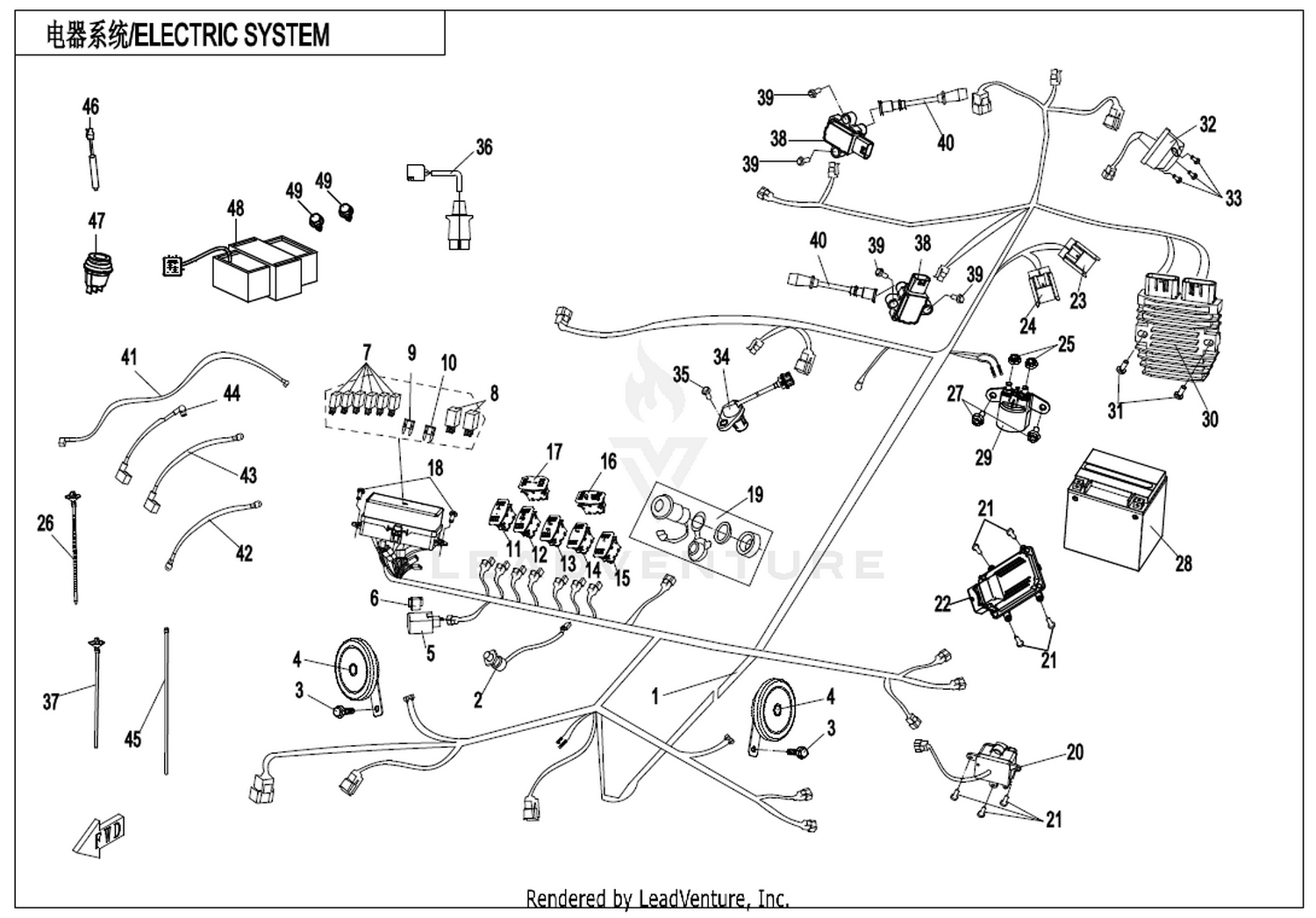

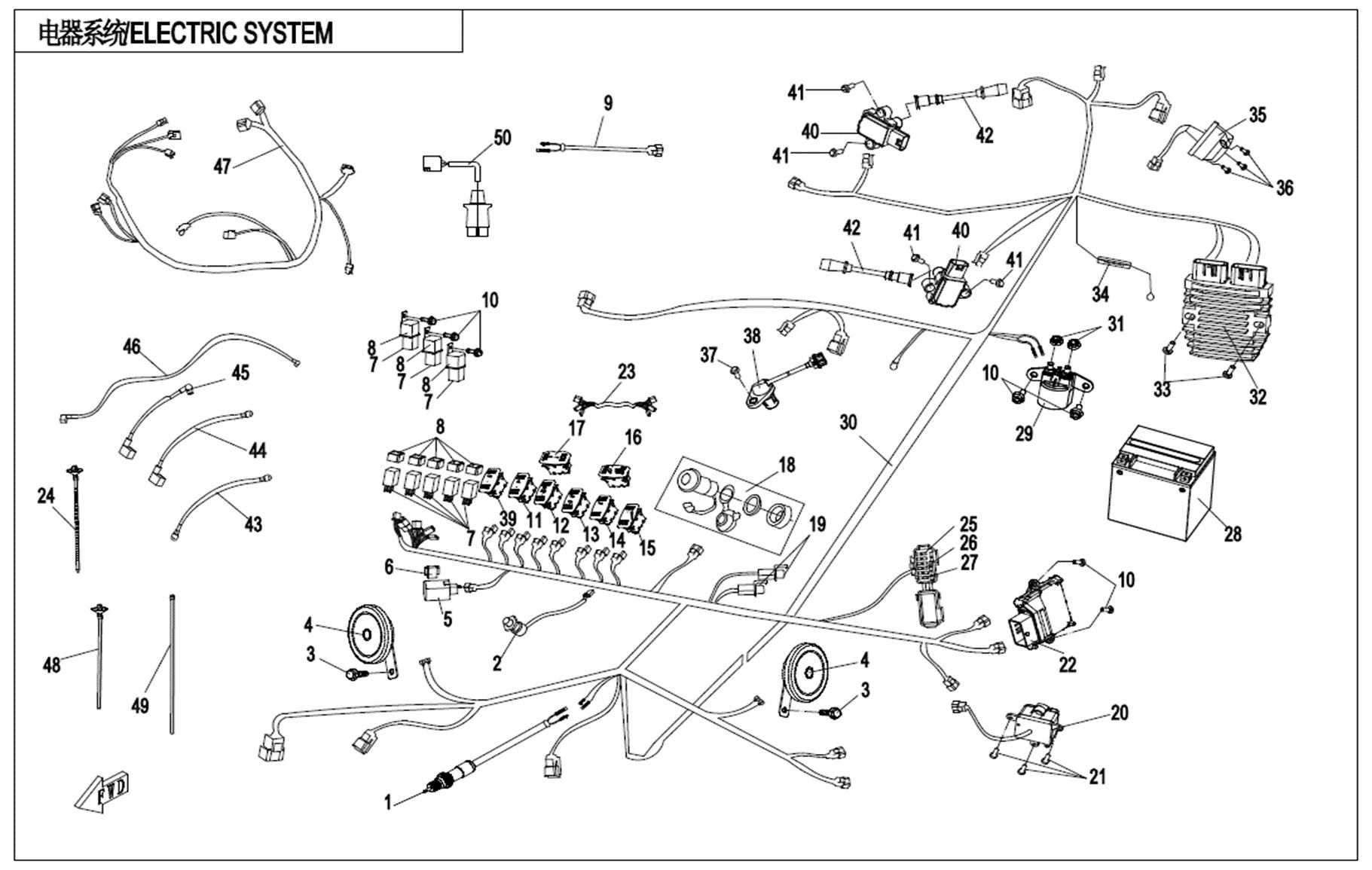

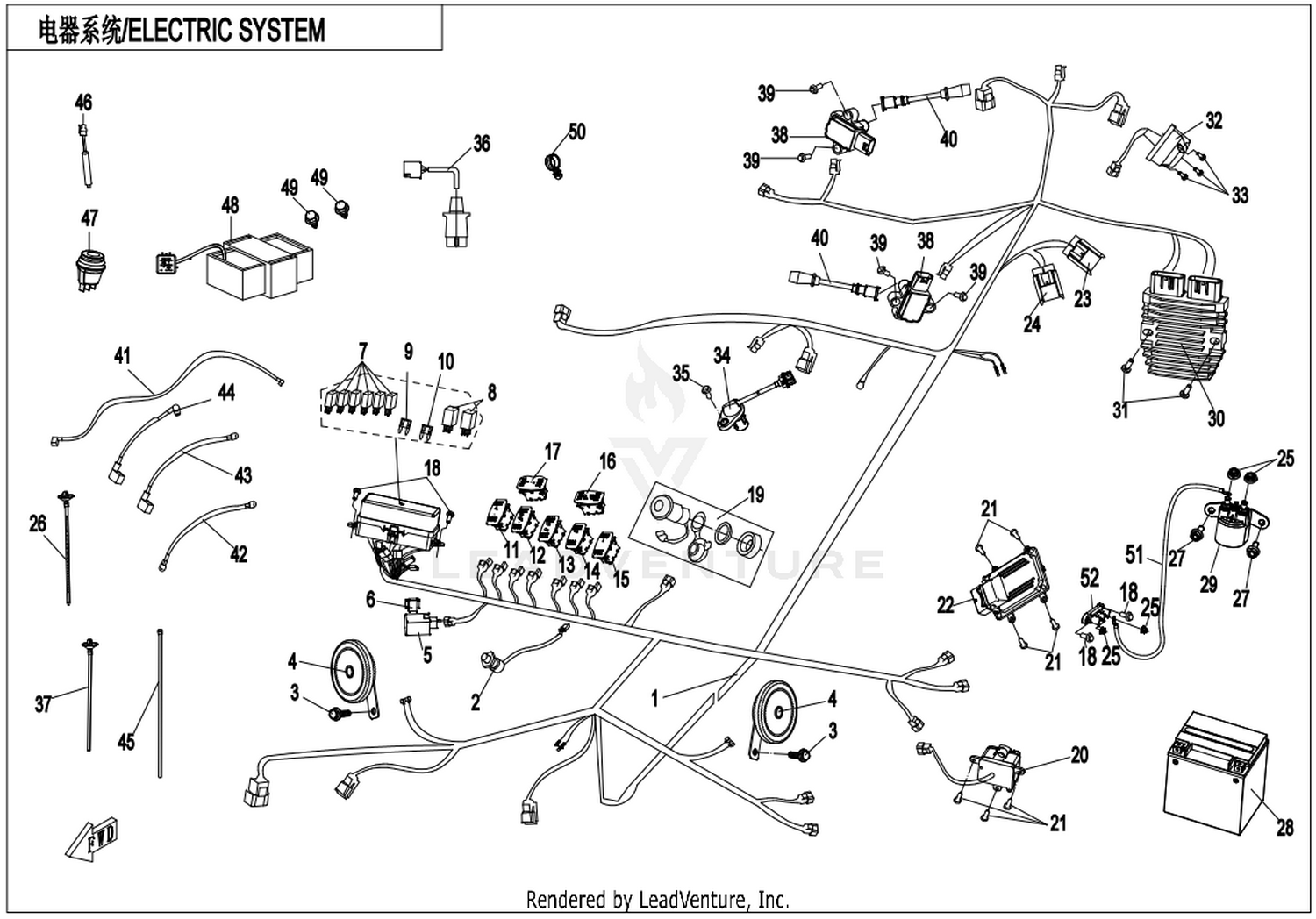

Location in exploded diagrams
Other parts on this diagram — ELECTRIC SYSTEM
- #27 806A-151305 — FUSE (15A)
- #1 9010-150500 — SWITCH, REAR BRAKE
- #2 7030-170300 — BUTTON, CLOCK (WITHOUT WIRE)
- #3 30006-080014810 — BOLT M8X14
- #4 6060-150600 — ELECTRIC HORN
- #5 4020-150340 — FLASHER
- #6 8010-150002 — CUSHION FLASHER
- #7 9010-150350 — AUXILIARY RELAY
- #8 9010-150002 — AUXILIARY RELAY RUBBER RING
- #10 30006-060012870 — BOLT M6X12 Replacing: 30006-060012810 - BOLT M6X12
- #11 7000-151400-10000 — OVERRIDING SWITCH, SUMITOMO PLUG
- #12 7000-151300-10000 — HORN SWITCH, SUMITOMO PLUG
- #13 7000-151200-10000 — DIMMER SWITCH, SUMITOMO PLUG
- #14 7000-151100-10000 — ILLUMINATION SWITCH, SUMITOMO PLUG
- #15 7000-151600-10000 — HAZARD SWITCH
- #16 7000-151000-10000 — STOP SWITCH, ENGINE, SUMITOMO PLUG
- #17 7000-151500-10000 — TURNING SWITCH, SUMITOMO PLUG
- #18 7020-150500-1000 — OUTPUT SEAT,POWER, SUMITOMO PLUG
- #19 6090-150500 — DIODE START
- #20 7030-160700-10002 — 2WD/4WD SWITCH ASSY Replacing: 7030-160700-10000 - 2WD/4WD SWITCH ASSY
- #21 30110-480160010 — SELF-TAPPING SCREW. ST4.8X16
- #22 0JY0-174000 — ECU
- #23 7000-152100 — ADAPTOR CABLE, SWITCH
- #24 7030-150005 — TIE BAND
