7000-080900Lh Caliper, Front Brake Sintered Pad — Genuine CF MOTO Part
CF MOTOoem
Verified fitment — 1 vehicle
Fitment is sourced from official parts catalogues, listed per catalogue market.
United Kingdom (1)
Manufacturer reference prices
Catalogue / RRP reference only — the live MotoDoc price is on the product page.
| Currency | Reference price | Type | Source |
|---|---|---|---|
| EUR | 55.21 | listing | cfmoto.quadzillaparts.co.uk |
| GBP | 51.05 | listing | cfmoto.quadzillaparts.co.uk |

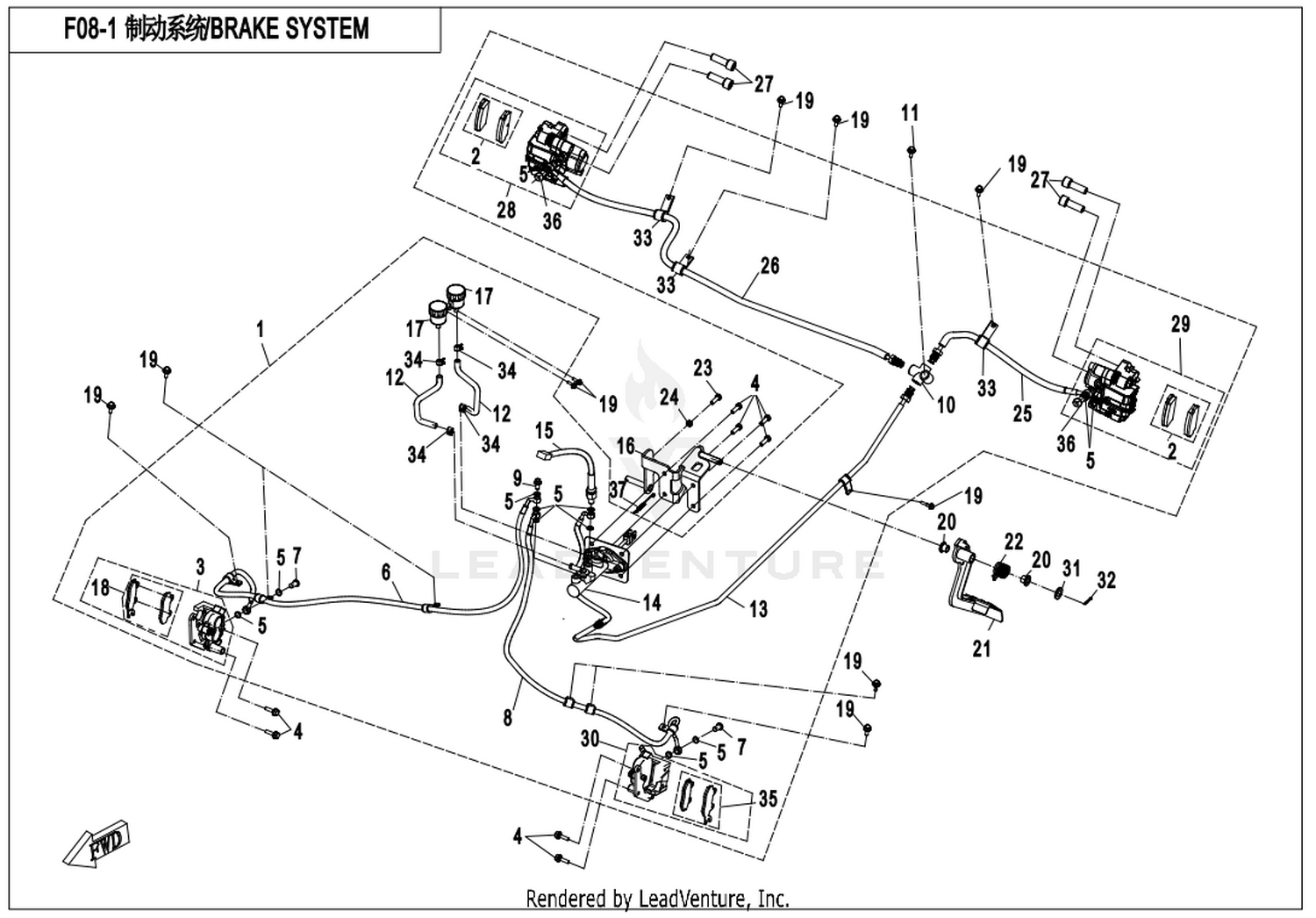

Location in exploded diagrams
Other parts on this diagram — Hydraulic Brake Assy
- #02 7000-0801A0 — Rear Brake Pad Sintered Pad
- #08 5BWA-080120 — Lower Fluid Hose, Front Brake
- #14 4060-080200 — Master Cylinder
- #21 9060-105002 — Bushing
- #26 5BWA-080160 — Rear Brake Lower Rh Fluid Hose
- #34 30903-0322210 — Cotter Pin F3.2X22@Color Zinc Trivalent Chromium
- #03 7000-080800 — Rh Caliper, Front Brake Sintered Pad
- #28 9010-080101-B000 — Banjo Bolt
- #16 7020-080160-1000 — Rear Brake Switch Sumitomo Plug
- #43 5BWV-081300-1001 — Brake Pedal Assy
- #08 30102-102035810 — Screw M10×1.25×35
- #43 9010-080104 — Circlip
- #11 30006-080025810 — Bolt M8×25
- #10 7000-080102 — T-Joint
- #48 9060-081200-1000 — Fixing Bracket, Brake Pedal
- #24 9060-080003 — Foot Brake Return Spring
- #28 7000-080170-10000 — Rear Brake Caliper, Rh Sintered Pad
- #12 9010-080405 — Clamp
- #05 5190-080104 — Seal Gasket
- #06 30006-060030810 — Bolt M6×30
- #17 9030-080110 — Fluid Reservoir
- #23 30107-060040410 — Screw M6X40@Trivalent Chromium
- #29 7000-080150-10000 — Rear Brake Caliper, Lh Sintered Pad
- #35 7000-0809A0 — Front Brake Pad, Lh Sintered Pad
