Verified fitment — 1 vehicle
Fitment is sourced from official parts catalogues, listed per catalogue market.
United Kingdom (1)

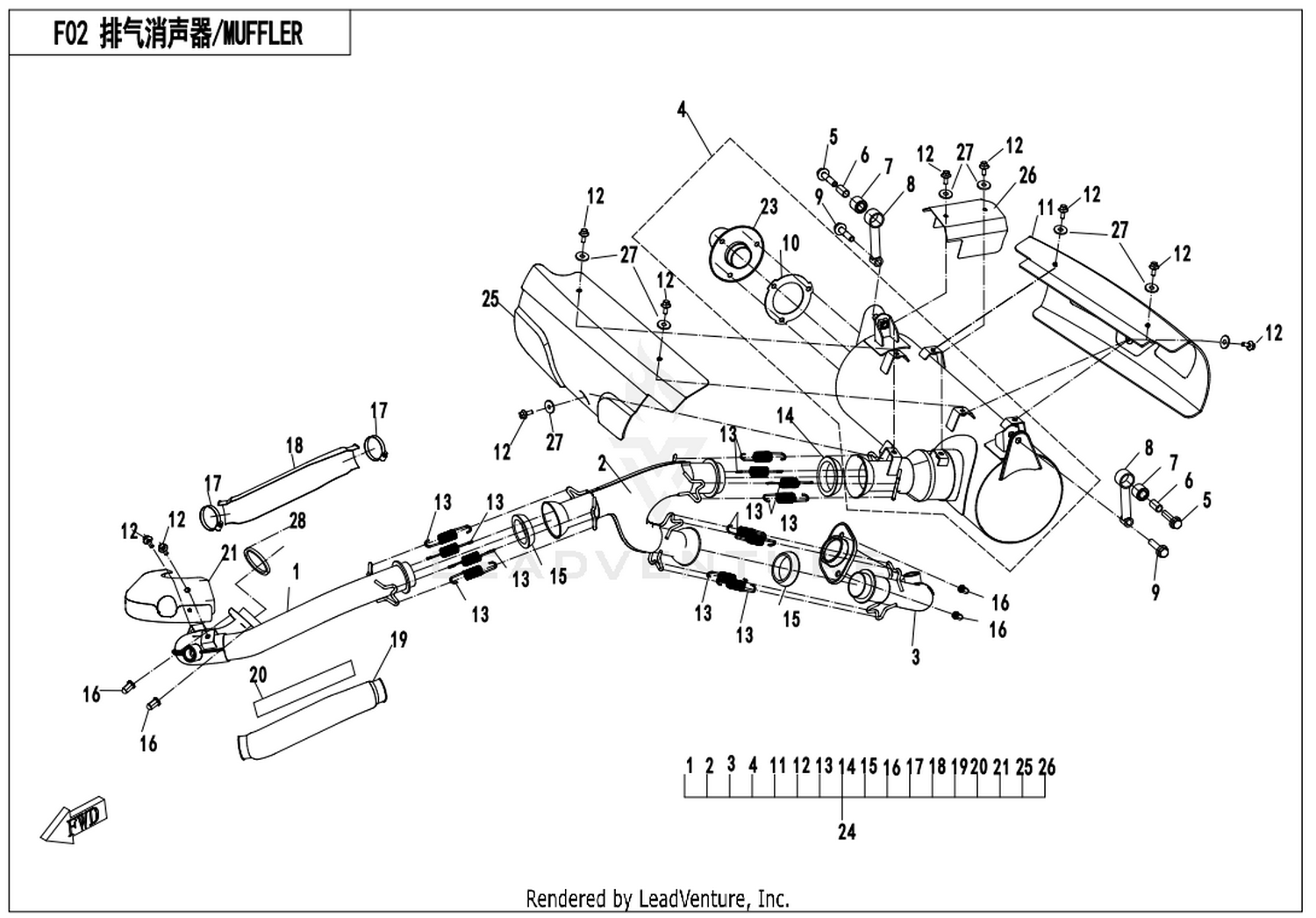

Location in exploded diagrams

Other parts on this diagram — Muffler Comp
- #14 30006-080040810 — Bolt M8×40
- #09 7000-020004 — Outer Deco Cover, Muffler Body
- #17 30604-340040 — Clamp
- #24 7000-0210A0 — Muffler Assy
- #06 7000-020006 — Bushing
- #08 30006-060012870 — Bolt M6X12@Black Zinc
- #18 7000-020003 — Heat Insulation Plate 3, Exhaust Pipe
- #25 7000-020007-10000 — Inner Heat Insulation Cover, Muffler Body
- #01 7000-021100-00001 — Front Exhaust Pipe,Muffler
- #07 9010-020001 — Rubber Cushion, Muffler
- #12 9030-020002 — Spring
- #19 7000-020002 — Heat Insulation Plate 2, Exhaust Pipe
- #26 7000-020008 — Heat Shield, Catalyst
- #06 7030-021002 — Collar, Big
- #02 7000-021200-00001 — T-Joint Pipe,Muffler
- #20 7000-020005 — Heat Insulator
- #22 30305-060112 — Washer F6@Color Zinc Trivalent Chromium
- #03 7000-021300-00001 — Rear Exhaust Pipe, Muffler
- #08 30006-080035810 — Bolt M8×35
- #23 9AWA-021003-00002 — Small Graphite Ring
- #21 7000-020030 — Heat Insulator, Exhaust Pipe
- #01 0800-022300 — Exhaust Pipe Gasket Assy
- #04 7000-021400-40003 — Muffler Body Assy
- #10 7000-021001 — Gasket
