6NTG-050802RH BRACKET, FRONT REFLECTOR — Genuine CF MOTO Part
CF MOTOoemFactory supply status: 启用
Verified fitment — 6 vehicles
Fitment is sourced from official parts catalogues, listed per catalogue market.

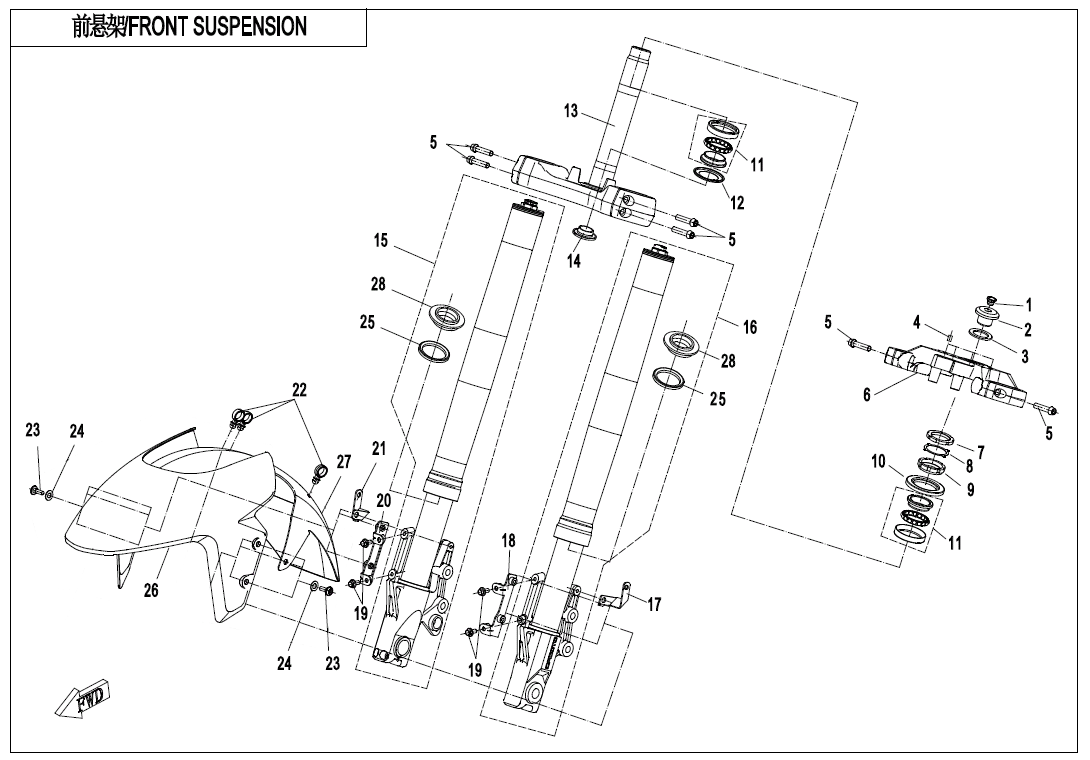

Location in exploded diagrams

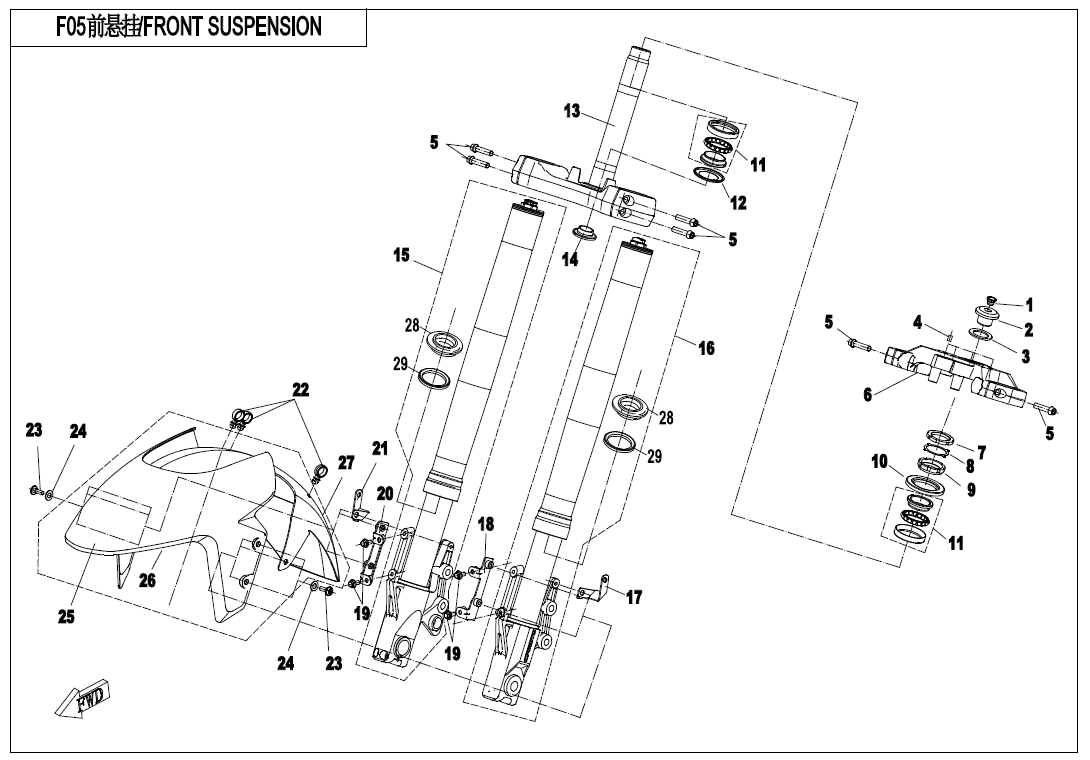

Other parts on this diagram — 前悬架 FRONT SUSPENSION
- #09 A000-050007 — LOCK NUT 2
- #01 A000-050005 — RUBBER PLUG 1
- #02 6NTA-050003 — LOCK SCREW, UPPER TRIPLE CLAMP
- #03 A000-050004 — WASHER
- #04 30406-00501 — ROLLER NEEDLE P5x7.8
- #05 A000-050018 — INNER HEX SCREW M8x35
- #06 6NTA-050001-0V100 — UPPER TRIPLE CLAMP
- #07 A000-050006 — LOCK NUT 1
- #08 A000-050008 — WASHER
- #10 A000-050009 — DUST CAP, UPPER RETAINER
- #11 A000-050100 — STEERING BEARING ASSY
- #12 A000-050400 — ANTI-DUST CAP, LOWER RETAINING RING
- #13 6NTG-050300-0V100 — LOWER TRIPLE CLAMP, FRONT FORK
- #14 A000-050011 — RUBBER PLUG 2
- #15 6NTA-050600 — FRONT RH SHOCK ABSORBER
- #16 6NTA-050500 — FRONT LH SHOCK ABSORBER
- #17 6NTG-050801 — LH BRACKET, FRONT REFLECTOR
- #18 6NTG-050700 — LH BRACKET, FRONT FENDER
- #19 30006-060020810 — BOLT
- #20 6NTG-050800 — RH BRACKET, FRONT FENDER
- #22 A000-050015 — WIRE CLIP, FRONT BRAKE FLUID HOSE
- #23 A000-060002 — CHAIN GUARD SCREW
- #24 6NTG-050002 — NYLON GASKET Dia 8
- #25 6NTG-050010-0B200 — FRONT FENDER ASSY
