6NTG-030200BRACKET, REAR FENDER — Genuine CF MOTO Part
CF MOTOoemFactory supply status: 启用
电泳黑色+亚光黑
Verified fitment — 5 vehicles
Fitment is sourced from official parts catalogues, listed per catalogue market.

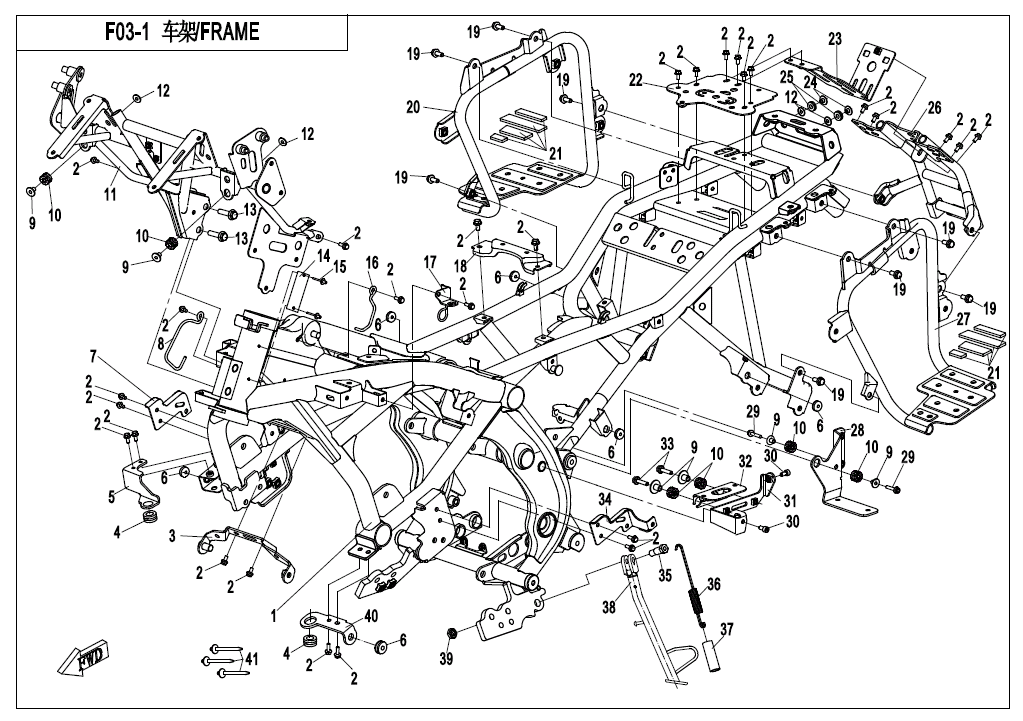

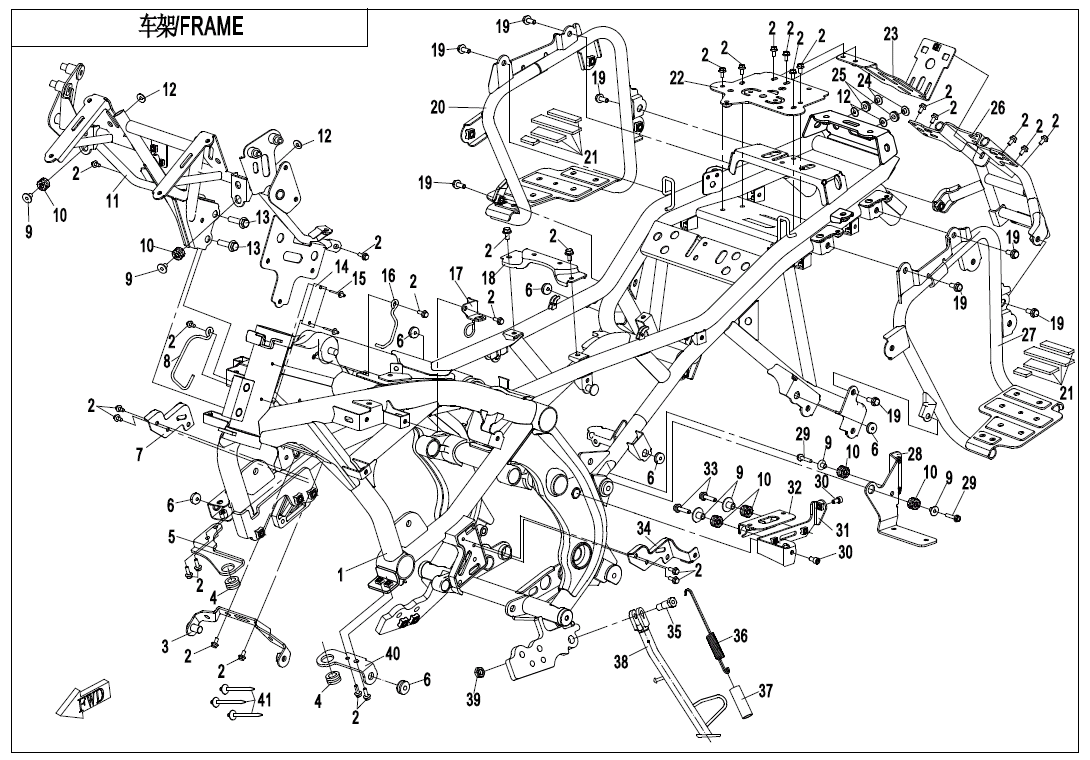

Location in exploded diagrams
Other parts on this diagram — 车架 FRAME
- #02 30006-060012810 — BOLT
- #05 6NTG-035002 — RH BRACKET, RADIATOR
- #08 A000-030002 — RH CLAMP, MAIN CABLE
- #15 30902-0420820 — RIVET
- #17 A000-030110 — BRACKET, FLASHER
- #27 6NTG-220100 — SUPPORT, LH SIDE BOX
- #33 30006-060025810 — BOLT
- #40 6NTG-035001 — LH BRACKET, RADIATOR
- #41 7030-150005 — TIE BAND
- #01 6NTA-031000-0BB00 — FRAME ASSY
- #03 6NTG-030160 — UPPER BRACKET, RADIATOR
- #04 A000-180005 — RADIATOR SHOCK ABSORBER RUBBER 2
- #06 A000-040302 — RUBBER DAMPER
- #07 6NTG-030120 — BRACKET, RH FRONT PANEL
- #09 5020-031002 — FRONT LICENSE BRACKET RUBBER SLEEVE BUS
- #10 5020-031001 — RUBBER SLEEVE, FRONT LICENSE BRACKET
- #35 A000-030006 — SIDE STAND BOLT
- #11 6NTG-030400 — FRONT BRACKET ASSY
- #12 30305-060122 — WASHER
- #13 30006-102040810 — BOLT
- #14 6NTA-190011 — VIN PLATE
- #16 A000-030001 — LH CLAMP, MAIN CABLE
- #18 A000-030150-00001 — MOUNT BRACKET, FUEL TANK
- #34 6NTG-030110 — BRACKET, LH FRONT PANEL
