6KM0-1202A0HIGH-PRESSURE FUEL HOSE ASSY — Genuine CF MOTO Part
CF MOTOoemFactory supply status: In supplier's stock
Verified fitment — 8 vehicles
Fitment is sourced from official parts catalogues, listed per catalogue market.
Europe (6)
China (1)
MY (1)

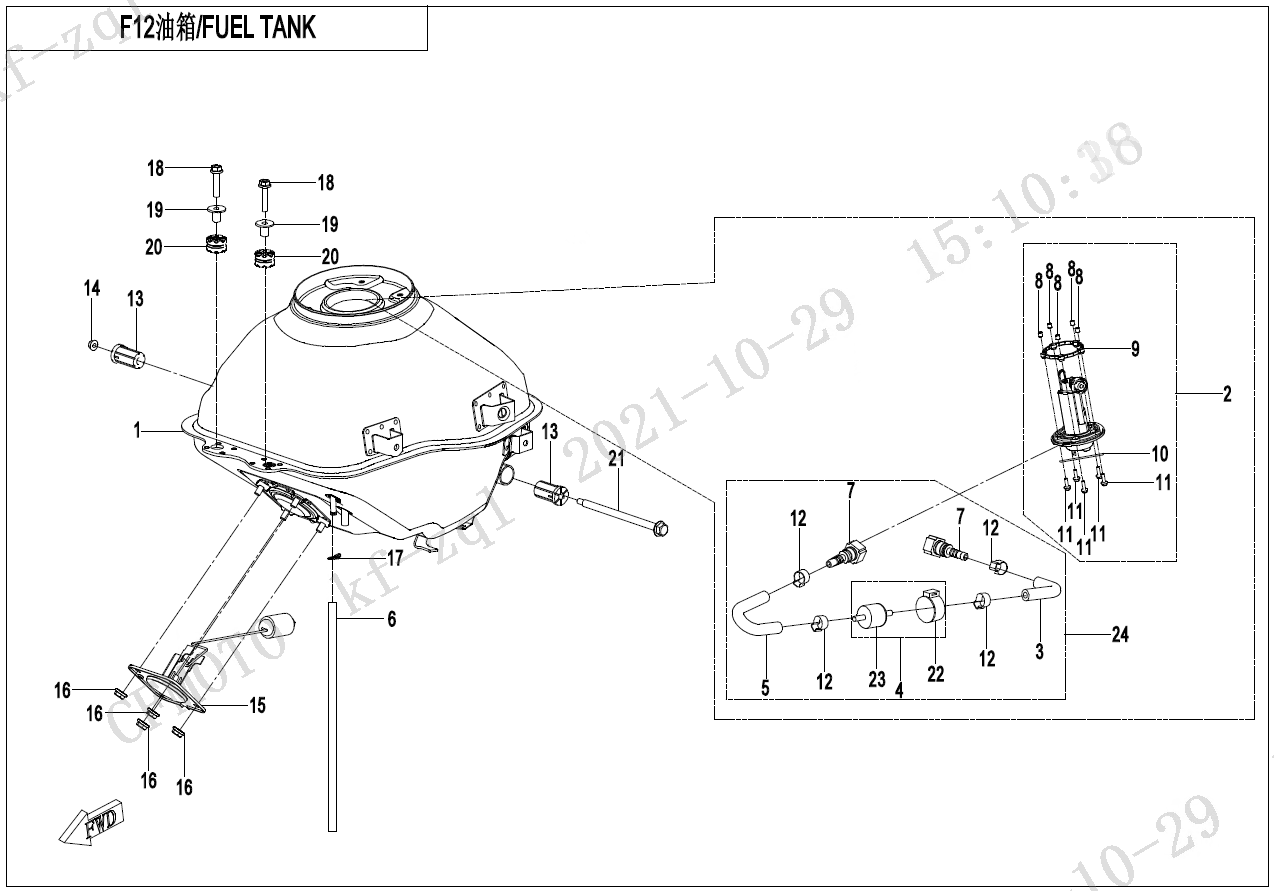

Location in exploded diagrams
Other parts on this diagram — FUEL TANK - F12
- #02 6KJV-150900-8001 — FUEL PUMP ASSY
- #03 6KM0-120220 — HIGH-PRESSURE FUEL HOSE ASSY 2
- #04 6090-120220 — EFI FUEL FILTER ASSY
- #05 6KM0-120210 — HIGH-PRESSURE FUEL HOSE ASSY 1
- #08 6KJ0-150903 — BUSHING
- #09 6KJ0-150902 — TOP COVER SEALING WASHER
- #10 6KJ0-150901 — TOP COVER LOCK PAD
- #11 30006-050020810 — BOLT
- #12 6070-120400 — CLAMP(Φ14.5)
- #13 6KM0-120002 — RUBBER BUSHING, FUEL TANK
- #14 30204-060810 — NUT
- #15 6KMV-170200-BD00-M1 — FUEL LEVEL SENSOR
- #16 30202-060110 — NUT
- #17 30601-111010 — CLAMP
- #18 30006-060025810 — BOLT
- #19 6KM0-120010 — T-TYPE BUSHING ASSY
- #20 5020-031001 — RUBBER SLEEVE, FRONT LICENSE BRACKET
- #21 6KM0-120001-10000 — ROTATION SHAFT, FUEL TANK
- #22 6090-120221 — EFI FUEL FILTER RUBBER SLEEVE
- #23 805A-120004 — EFI FUEL FILTER
