6KJ0-080300REAR BRAKE PEDAL ASSY — Genuine CF MOTO Part
CF MOTOoemFactory supply status: 停用
1 | 6KJ0-080300 | PEDAL, REAR BRAKE | 1 | 0 in warehouse | $ 67.90 | Back order
Supersession history
⚠️ This part number has been superseded by 6KJ0-080300-10000 (source: 150NK CF150-3-2017款). Order the replacement number for new stock.
Verified fitment — 3 vehicles
Fitment is sourced from official parts catalogues, listed per catalogue market.
New Zealand (2)
China (1)
Manufacturer reference prices
Catalogue / RRP reference only — the live MotoDoc price is on the product page.
| Currency | Reference price | Type | Source |
|---|---|---|---|
| NZD | 67.90 | listing | cfmotonelson.co.nz |

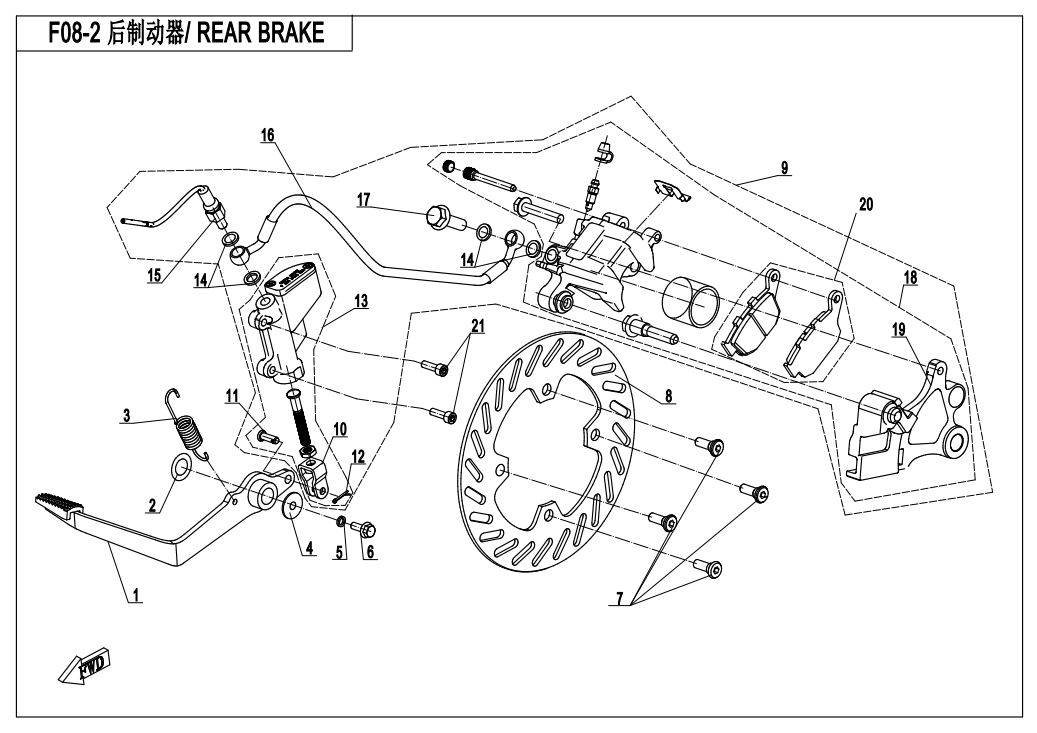

Location in exploded diagrams
Other parts on this diagram — REAR BRAKE
- #2 A000-080007 — GASKET 215X24X1
- #3 6100-080005 — RETURN SPRING
- #4 A000-080006 — GASKET 17X24X1.6
- #5 30303-060112 — WASHER
- #6 30006-060016810 — BOLT M6X16
- #7 6KJ0-080005 — BOLT, FRONT BRAKE DISC
- #8 6KJ0-080002 — REAR BRAKE DISC
- #9 6KJ0-080200 — REAR HYDRAULIC BRAKE
- #10 6KJ0-080227 — BRACKET, PUSH ROD
- #11 30904-0802210 — PIN SHAFT
- #12 30903-0201610 — COTTER PIN. 2.0X16
- #13 6KJ0-080210 — REAR BRAKE PUMP ASSY
- #14 A000-080104 — SEAL GASKET
- #15 6KJ0-080270 — HYDRAULIC INDUCTION SWITCH
- #16 6KJ0-080240 — REAR BRAKE HOSE
- #17 A000-080103 — BANJO BOLT
- #18 6KJ0-080250 — CALIPER, REAR BRAKE
- #19 6KJ0-080262 — MOUNTING BRACKET
- #20 6KJ0-0802A0 — BRAKE PAD
- #21 30102-060022810 — SCREW
