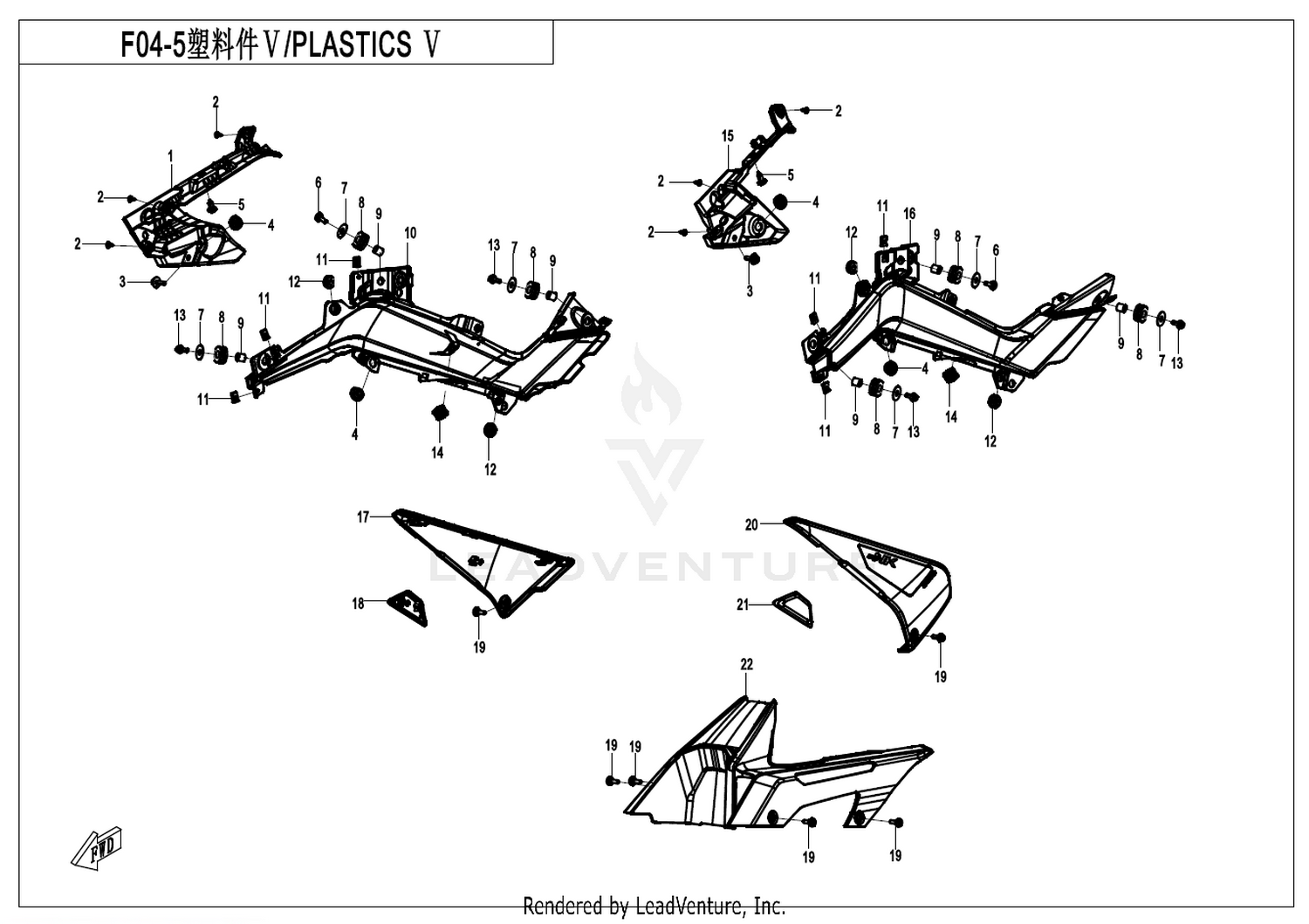

Location in exploded diagrams
Other parts on this diagram — Plastics5
- #01 6KIV-041301-2001 — Reservoir Rh Inner Panel
- #06 30004-060020810 — Bolt Assy
- #17 A000-040302 — Rubber Damper
- #17 6KIV-043101-2000 — Frame Rh Panel
- #22 6KIV-060007-2001 — Rear Inner Fender
- #07 30110-421130010 — Self-Tapping Screw St4.2X13@Color Zinc Trivalent Chromium
- #22 30305-060112 — Washer F6@Color Zinc Trivalent Chromium
- #05 30006-060020870 — Bolt M6×20
- #18 6KIV-041501-2000 — Frame Rh Deco Cover
- #04 30006-060016870 — Bolt M6×16
- #05 6090-040302 — Cushion Sleeve
- #11 5020-031001 — Rubber Sleeve, Front License Bracket
- #21 6NQ#-000205-6001 — Chain Guard Screw
- #04 8080-040064 — Front Fender Damper
- #06 6090-040303 — Bushing
- #15 6KIV-041201-2000 — Reservoir Lh Inner Panel
- #20 6KIV-043001-2000 — Frame Lh Panel
- #15 9060-040310 — Clamp Assy
- #10 6KIV-041710-2000 — Rh Panel Assy Nebula Black With Decal
- #15 6KIV-041201-2001 — Reservoir Lh Inner Panel
- #14 A000-040703 — Inner Hex Screw M6X20
- #01 6KIV-041301-2000 — Reservoir Rh Inner Panel
- #19 8010-000002 — Clamp St4.2
- #16 6KIV-041610-2000 — Lh Panel Assy Nebula Black With Decal
