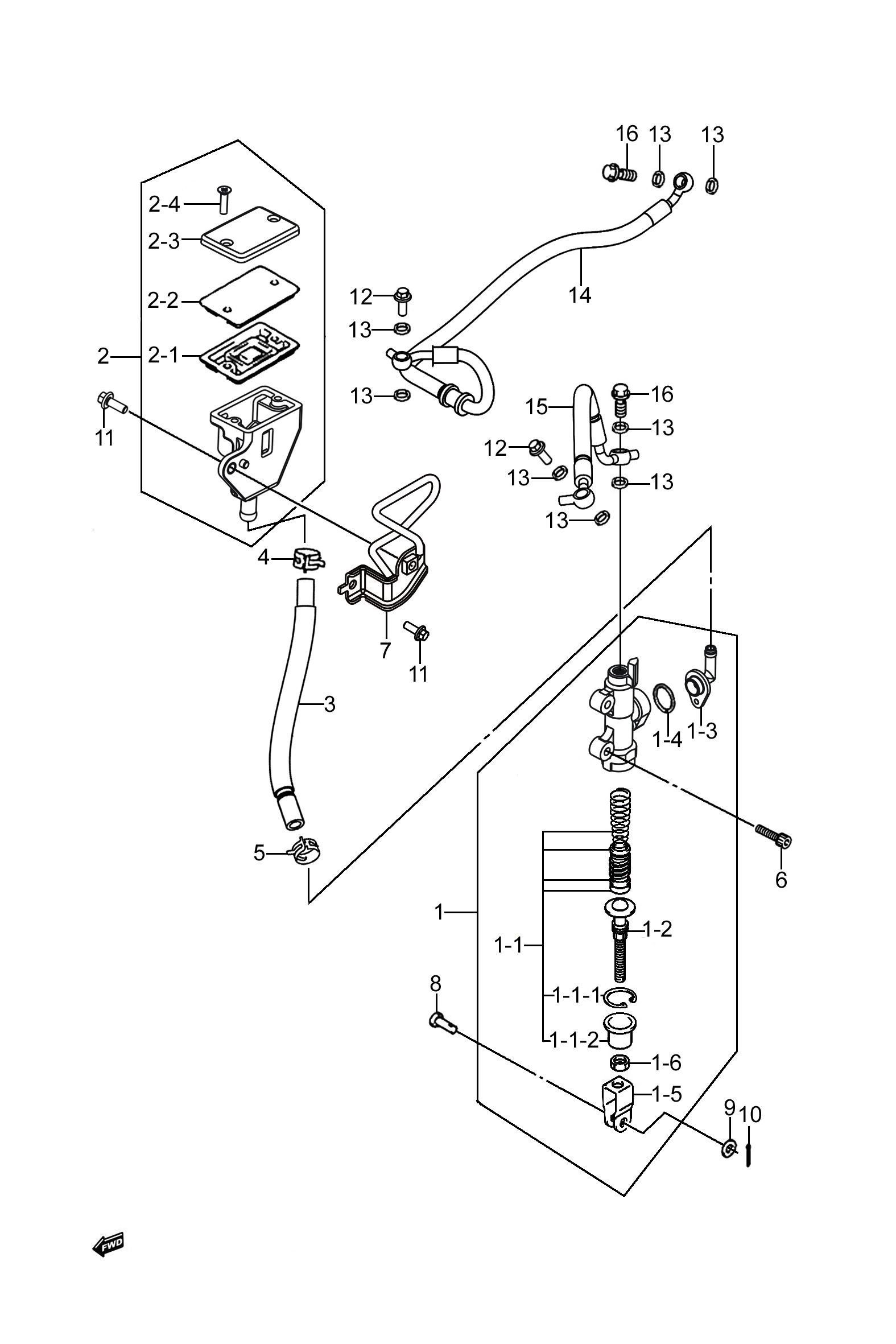

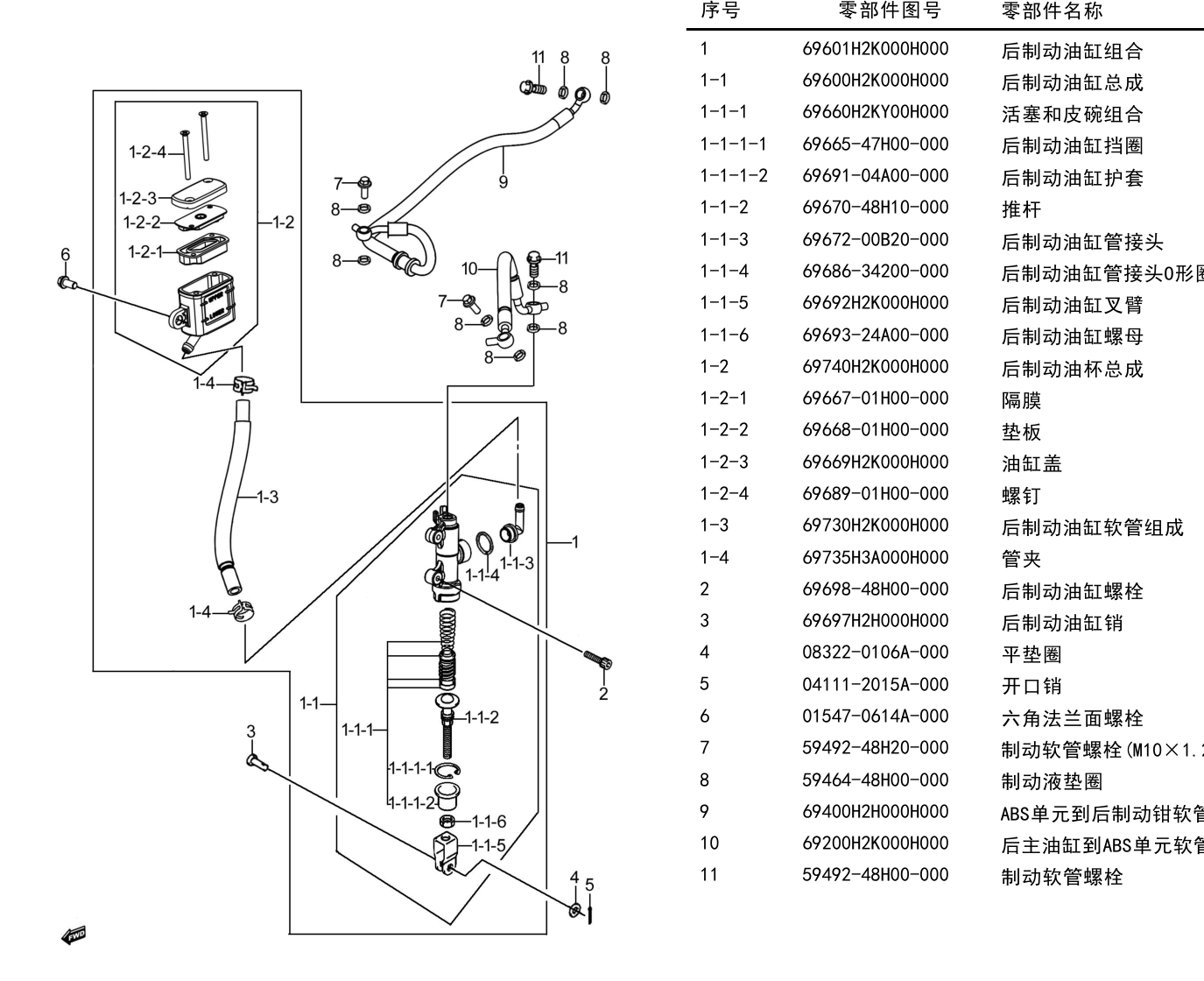

Location in exploded diagrams
Other parts on this diagram — 后制动油缸
- #1 69601H2K000H000 — 后制动油缸组合
- #1-3 69730H2K000H000 — 后制动油缸软管组成
- #1-4 69735H3A000H000 — 管夹
- #2 69698-48H00-000 — 后制动油缸螺栓
- #4 08322-0106A-000 — 平垫圈
- #5 04111-2015A-000 — 开口销
- #10 69200H2K000H000 — 后主油缸到ABS单元软管总成
- #11 59492-48H00-000 — 制动软管螺栓
- #1-1 69600H2K000H000 — 后制动油缸总成
- #1-2 69740H2K000H000 — 后制动油杯总成
- #1 1-1-1-1
- #1 1-1-1-2
- #6 01547-0614A-000 — 六角法兰面螺栓
- #7 59492-48H20-000 — 制动软管螺栓(M10×1.25)
- #8 59464-48H00-000 — 制动液垫圈
- #9 69400H2H000H000 — ABS单元到后制动钳软管总成
