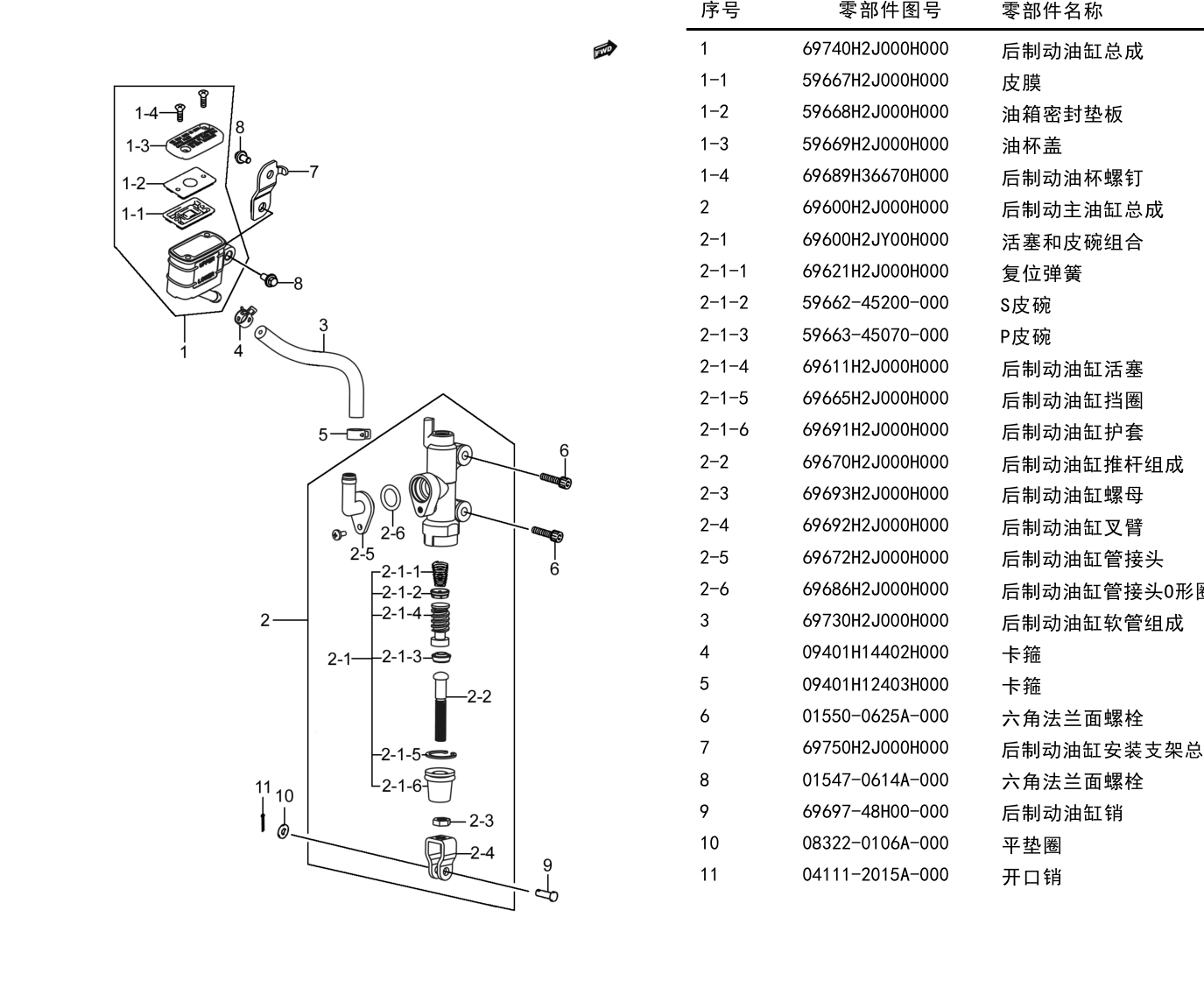

Location in exploded diagrams
Other parts on this diagram — 后制动油缸
- #2-1 69600H2JY00H000 — 活塞和皮碗组合
- #1 69740H2J000H000 — 后制动油缸总成
- #1-2 59668H2J000H000 — 油箱密封垫板
- #1-3 59669H2J000H000 — 油杯盖
- #1-4 69689H36670H000 — 后制动油杯螺钉
- #2 69600H2J000H000 — 后制动主油缸总成
- #2-2 69670H2J000H000 — 后制动油缸推杆组成
- #2-4 69692H2J000H000 — 后制动油缸叉臂
- #2-5 69672H2J000H000 — 后制动油缸管接头
- #2-6 69686H2J000H000 — 后制动油缸管接头O形圈
- #3 69730H2J000H000 — 后制动油缸软管组成
- #4 09401H14402H000 — 卡箍
- #5 09401H12403H000 — 卡箍
- #6 01550-0625A-000 — 六角法兰面螺栓
- #7 69750H2J000H000 — 后制动油缸安装支架总成
- #8 01547-0614A-000 — 六角法兰面螺栓
- #9 69697-48H00-000 — 后制动油缸销
- #10 08322-0106A-000 — 平垫圈
- #11 04111-2015A-000 — 开口销
- #1-1 59667H2J000H000 — 皮膜
