Verified fitment — 1 vehicle
Fitment is sourced from official parts catalogues, listed per catalogue market.
China (1)

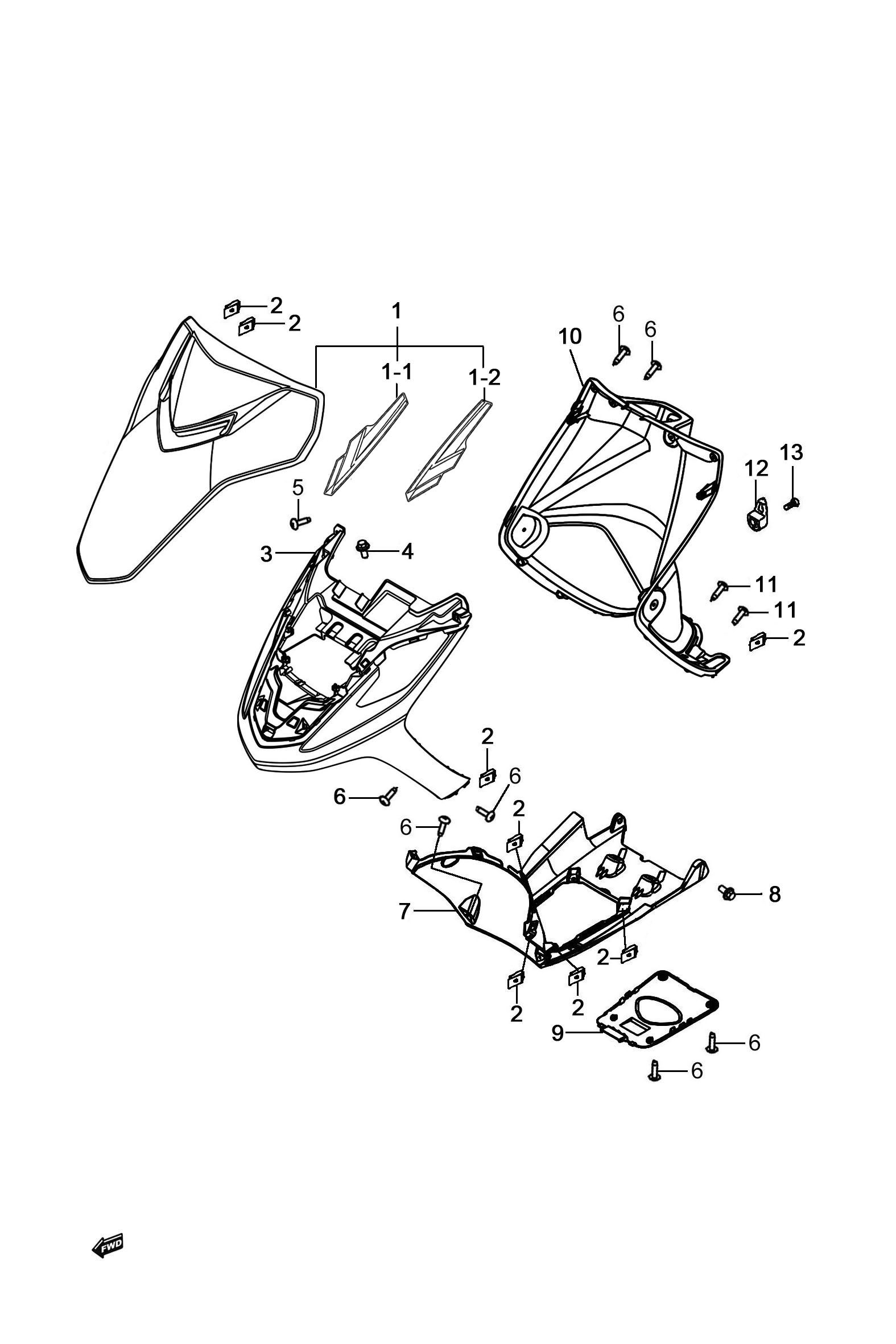

Location in exploded diagrams
Other parts on this diagram — 护罩组
- #1 48011H7Y000HF01 — 前斜板组合(珍珠白)
- #1 48011H7Y000HF03 — 前斜板组合(珍珠黑)
- #1 48011H7Y000HF06 — 前斜板组合(透明红)
- #1 48011H7Y000HF07 — 前斜板组合(炫酷蓝)
- #1-1 68645H7Y000HTL4 — 前斜板右贴条(TL4)
- #1-1 68645H7Y000HTL5 — 前斜板右贴条(TL5)
- #1-1 68645H7Y000HTL6 — 前斜板右贴条(TL6)
- #1-1 68645H7Y000HTL7 — 前斜板右贴条(TL7)
- #1-1 68645H7Y000HUD7 — 前斜板右贴条(UD7)
- #1-2 68655H7Y000HTL4 — 前斜板左贴条(TL4)
- #1-2 68655H7Y000HTL6 — 前斜板左贴条(TL6)
- #1-2 68655H7Y000HTL7 — 前斜板左贴条(TL7)
- #1-2 68655H7Y000HUD7 — 前斜板左贴条(UD7)
- #2 09148-05L08-000 — 锁片螺母
- #3 48137H7Y000H000 — 前下护罩
- #4 09111-06066-000 — 螺栓
- #5 92125-33GC0-000 — 前货箱盖内衬板安装螺钉
- #6 03241-0516B-000 — 十字槽自攻螺钉
- #7 48139H7N001H000 — 底盖
- #8 01550-0612A-000 — 六角法兰面螺栓
- #9 48138H7N001H000 — 底盖后体
- #10 92111H7Y001H000 — 前货箱体
- #11 03541-0416B-000 — 十字槽自攻螺钉
- #12 92171-32G00-000 — 前货箱体挂钩
