Verified fitment — 1 vehicle
Fitment is sourced from official parts catalogues, listed per catalogue market.
China (1)
Location in exploded diagrams

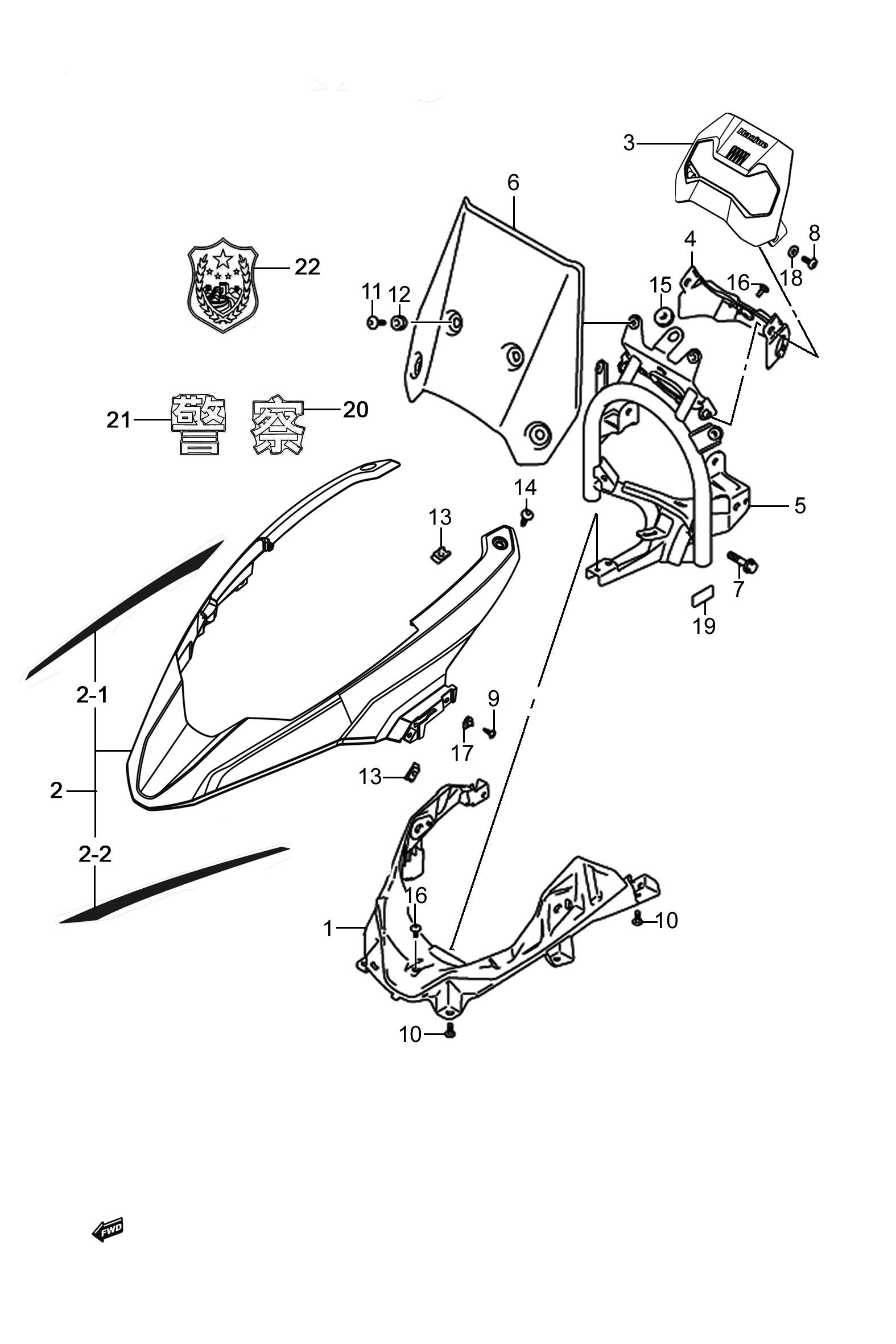

Other parts on this diagram — 导流罩组
- #1 94411-21K00-000 — 导流罩体
- #2 94044H21K10HF01 — 上导流罩组合(公安白)
- #2-1 68186H28J00HMGA — 右侧导流罩贴条
- #2-2 68196H28J00HMGA — 左侧导流罩贴条
- #3 94421H28F00H000 — 仪表上罩
- #4 94422-21K00-000 — 仪表下罩
- #5 94510-21K00-000 — 导流罩支架组成
- #6 94611-21K10-000 — 挡风玻璃
- #7 01550-0845A-000 — 六角法兰面螺栓
- #8 94423-21K00-000 — 仪表罩螺钉
- #9 03541-0512A-000 — 十字槽球头自攻钉
- #10 03541-0516A-000 — 十字槽球头自攻钉
- #11 09139-06190-000 — 特殊形状螺钉
- #12 09320-09016-000 — 减震垫
- #13 35155-48H00-000 — 前照灯卡片
- #14 94492-20K00-000 — 导流罩体螺钉
- #15 09320-08513-000 — 减震垫
- #16 94474-48HB0-000 — 下导流罩螺钉
- #17 47399-48H00-000 — 锁片螺母
- #18 09160-06130-000 — 金属平垫圈
- #19 47846-48H00-000 — 减震垫
- #21 68481H7C3J0HMGA — 警察左贴条
- #22 68922H48H10H000 — 警车车徽
