Verified fitment — 8 vehicles
Fitment is sourced from official parts catalogues, listed per catalogue market.
China (5)
Manufacturer reference prices
Catalogue / RRP reference only — the live MotoDoc price is on the product page.
| Currency | Reference price | Type | Source |
|---|---|---|---|
| GBP | 0.77 | listing | motogbshop.co.uk |
Location in exploded diagrams

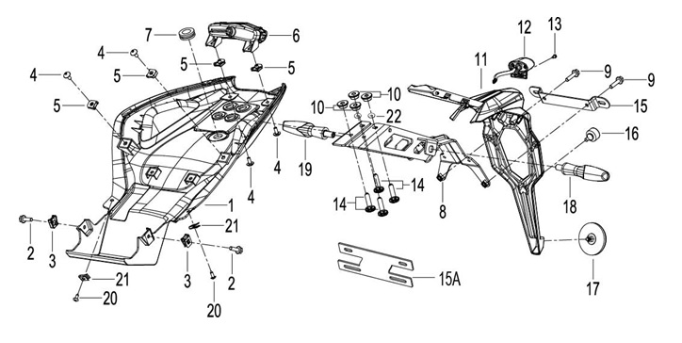

Other parts on this diagram — 后泥板 FENDER ASSY.
- #1 65730P620001 — 后挡泥板前部组件
- #2 08003P620000 — 内六角花形法兰面台阶螺钉M6×15
- #3 08001P620000 — 内六角花形法兰面螺钉M5×12
- #4 65624P160000 — 卡螺母M5
- #5 65711L430000 — 后上泥板隔套
- #6 08252PAK0000 — 后牌照支架I
- #7 160306030030 — 六角内梅花螺栓
- #8 B0507420130G — 十字槽大球面头自攻螺钉ST4.2×13
- #9 160306030050 — 六角内梅花螺栓
- #10 58430J000000 — 线夹组件
- #11 160306030010 — 六角内梅花螺栓
- #12 B0417060004H — 自锁螺母M6
- #13 08257PAK0000 — 后牌照支架安装板
- #13 08257PAK0001 — 后牌照支架安装板
- #14 81500PAK0000 — 后左转向灯
- #15 81700PAK0000 — 后右转向灯
- #16 82900N490000 — 牌照灯
- #17 65913PAK0000 — 后摄像头安装板
- #18 65313PAK0000 — 摄像头安装孔堵头
- #19 65705PAK0000 — 后牌照板
- #20 51103V030000 — 座垫缓冲橡胶圈
- #21 86500B720001 — 后反射体
- #22 08252V020000 — 后牌照安装板
- #23 160306030020 — 六角内梅花螺栓
