Verified fitment — 1 vehicle
Fitment is sourced from official parts catalogues, listed per catalogue market.
China (1)
Location in exploded diagrams

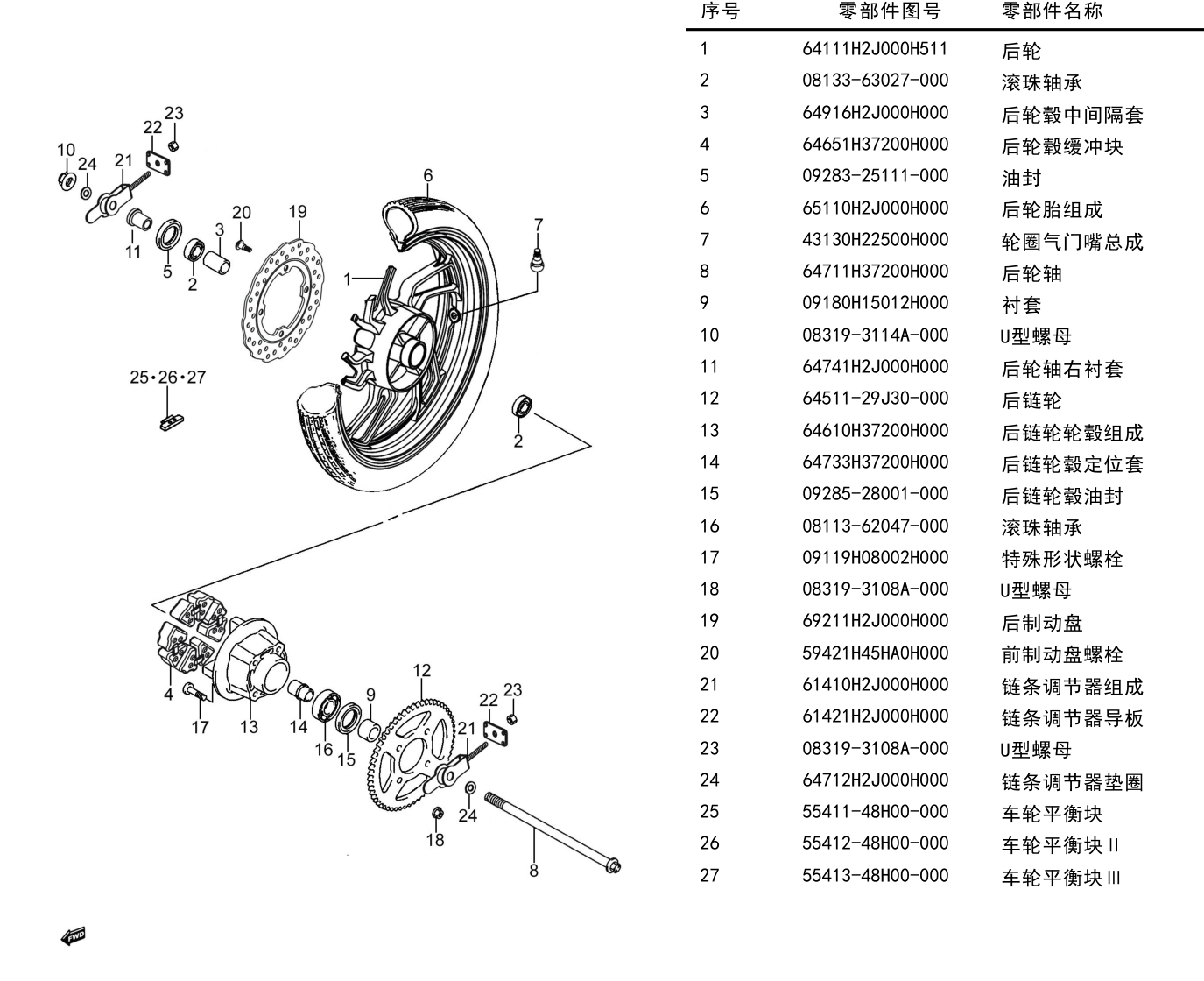

Other parts on this diagram — 后轮组
- #25 55411-48H00-000 — 车轮平衡块
- #26 55412-48H00-000 — 车轮平衡块Ⅱ
- #27 55413-48H00-000 — 车轮平衡块Ⅲ
- #5 09283-25111-000 — 油封
- #7 43130H22500H000 — 轮圈气门嘴总成
- #8 64711H37200H000 — 后轮轴
- #9 09180H15012H000 — 衬套
- #10 08319-3114A-000 — U型螺母
- #11 64741H2J000H000 — 后轮轴右衬套
- #12 64511-29J30-000 — 后链轮
- #13 64610H37200H000 — 后链轮轮毂组成
- #14 64733H37200H000 — 后链轮毂定位套
- #15 09285-28001-000 — 后链轮毂油封
- #16 08113-62047-000 — 滚珠轴承
- #17 09119H08002H000 — 特殊形状螺栓
- #18 08319-3108A-000 — U型螺母
- #22 61421H2J000H000 — 链条调节器导板
- #24 64712H2J000H000 — 链条调节器垫圈
- #1 64111H2J000H511 — 后轮
- #2 08133-63027-000 — 滚珠轴承
- #3 64916H2J000H000 — 后轮毂中间隔套
- #4 64651H37200H000 — 后轮毂缓冲块
- #19 69211H2J000H000 — 后制动盘
- #20 59421H45HA0H000 — 前制动盘螺栓
