Verified fitment — 3 vehicles
Fitment is sourced from official parts catalogues, listed per catalogue market.

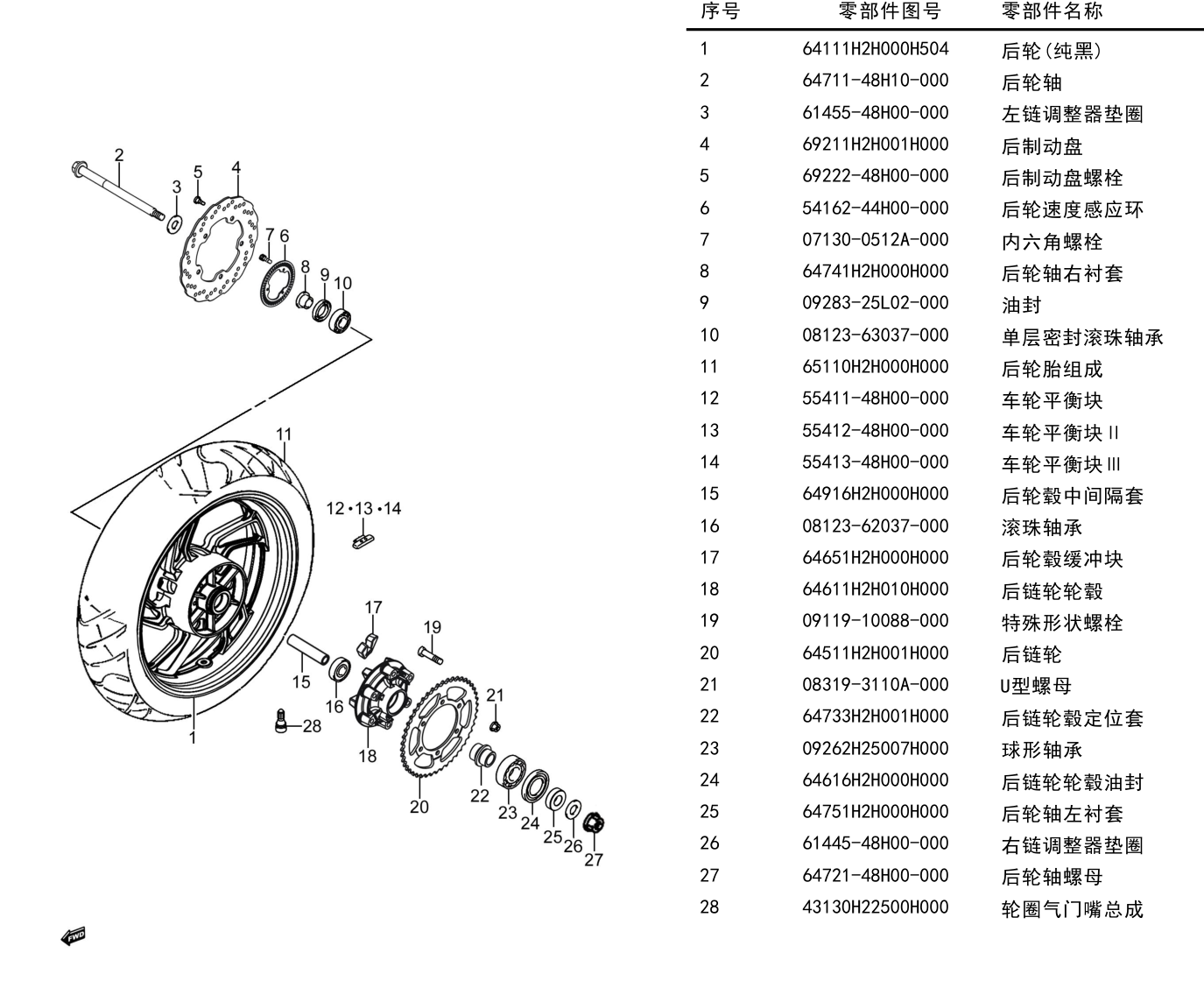

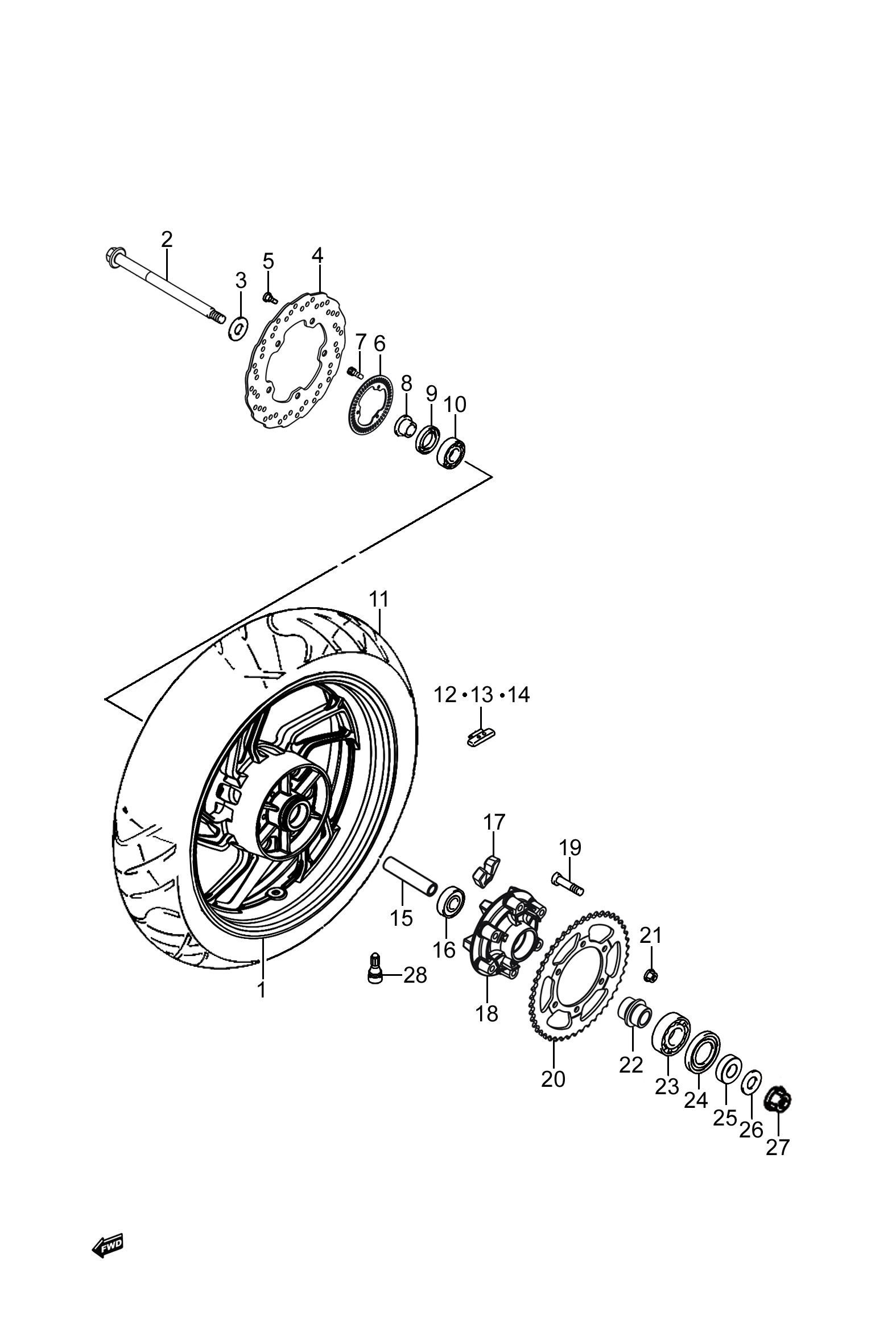

Location in exploded diagrams
Other parts on this diagram — 后轮组
- #8 64741H2H000H000 — 后轮轴右衬套
- #9 09283-25L02-000 — 油封
- #10 08123-63037-000 — 单层密封滚珠轴承
- #11 65110H2H000H000 — 后轮胎组成
- #15 64916H2H000H000 — 后轮毂中间隔套
- #16 08123-62037-000 — 滚珠轴承
- #17 64651H2H000H000 — 后轮毂缓冲块
- #18 64611H2H001H000 — 后链轮轮毂
- #19 09119-10088-000 — 特殊形状螺栓
- #20 64511H2H001H000 — 后链轮
- #21 08319-3110A-000 — U型螺母
- #22 64733H2H001H000 — 后链轮毂定位套
- #23 09262H25007H000 — 球形轴承
- #24 64616H2H000H000 — 后链轮轮毂油封
- #26 61445-48H00-000 — 右链调整器垫圈
- #27 64721-48H00-000 — 后轮轴螺母
- #28 43130H22500H000 — 轮圈气门嘴总成
- #12 55411-48H00-000 — 车轮平衡块
- #13 55412-48H00-000 — 车轮平衡块Ⅱ
- #14 55413-48H00-000 — 车轮平衡块Ⅲ
- #1 64111H2H000H504 — 后轮(纯黑)
- #2 64711-48H10-000 — 后轮轴
- #3 61455-48H00-000 — 左链调整器垫圈
- #4 69211H2H000H000 — 后制动盘
