Verified fitment — 2 vehicles
Fitment is sourced from official parts catalogues, listed per catalogue market.
China (2)
Location in exploded diagrams

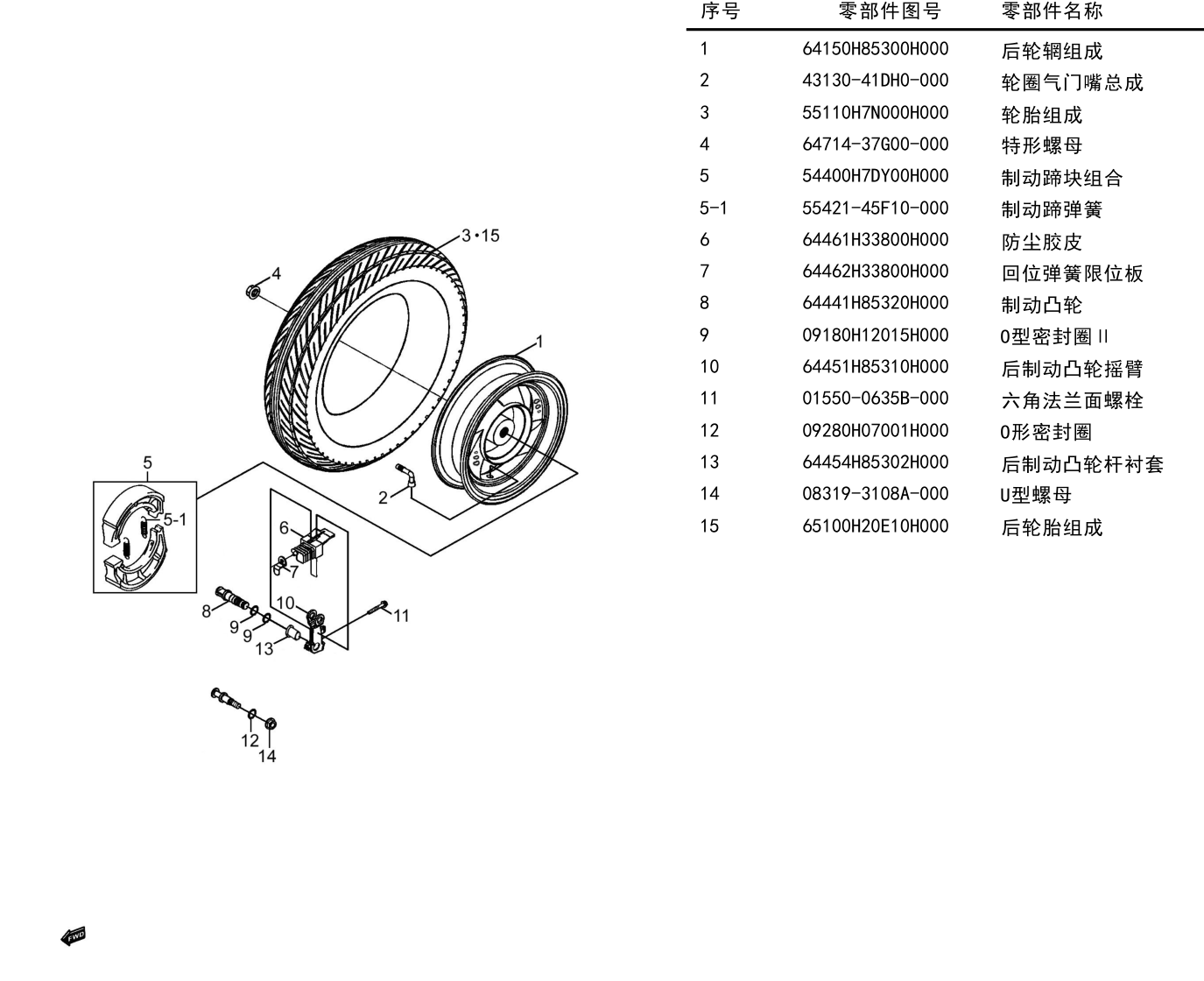

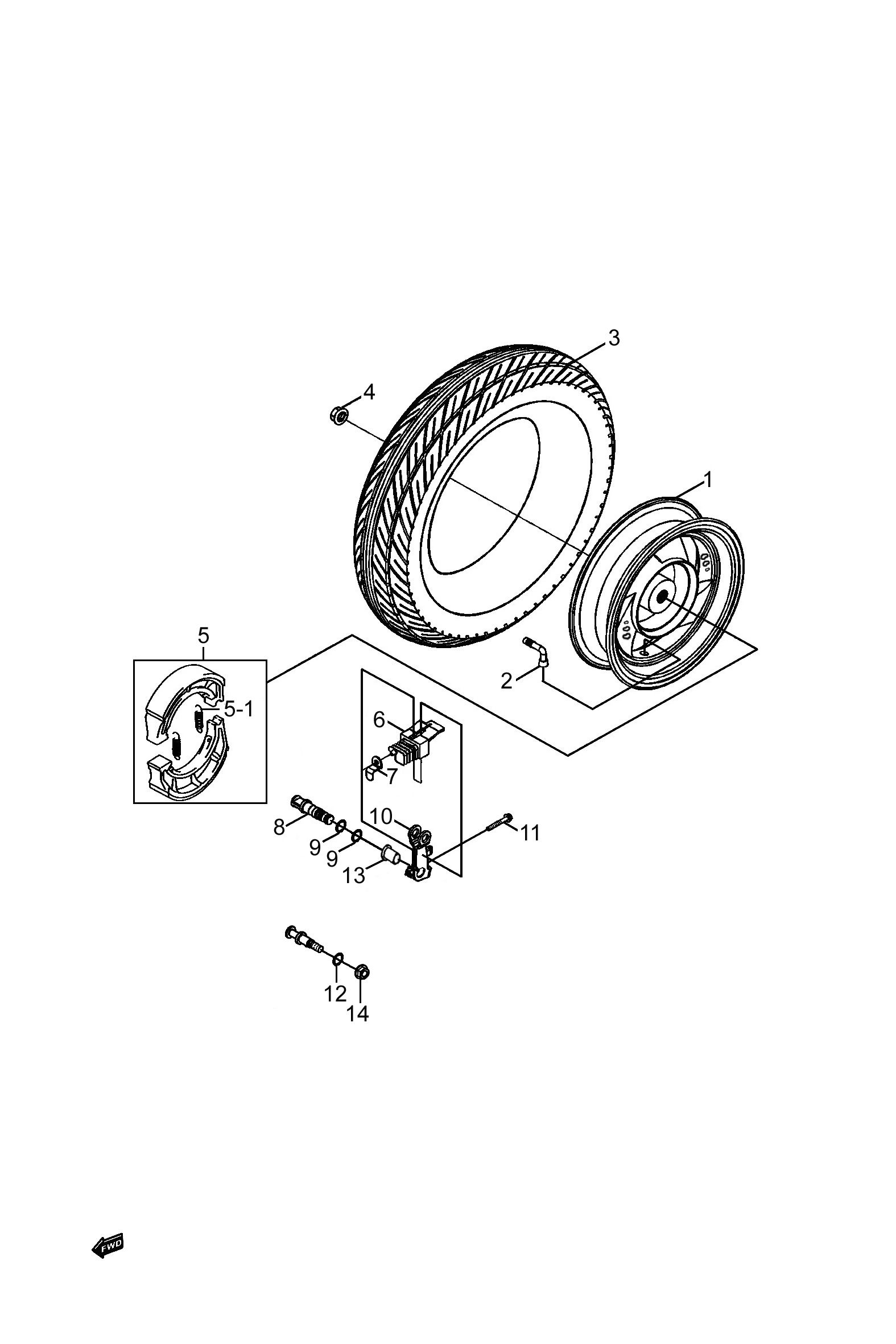

Other parts on this diagram — 后轮组
- #1 64150H7N020H000 — 后轮辋组成
- #2 43130-41DH0-000 — 轮圈气门嘴总成
- #3 65110H7N000H000 — 后轮胎组成
- #4 64714-37G00-000 — 特形螺母
- #5 54400H7YY00H000 — 制动蹄组合(耐磨·无石棉)
- #5-1 55421-45F10-000 — 制动蹄弹簧
- #7 64462H33800H000 — 回位弹簧限位板
- #8 64441H85321H000 — 后制动凸轮
- #9 09180H12015H000 — O型密封圈Ⅱ
- #10 64451H85310H000 — 后制动凸轮摇臂
- #11 01550-0635B-000 — 六角法兰面螺栓
- #12 09280H07001H000 — O形密封圈
- #13 64454H85302H000 — 后制动凸轮杆衬套
- #14 08319-3108A-000 — U型螺母
