Verified fitment — 1 vehicle
Fitment is sourced from official parts catalogues, listed per catalogue market.
United Kingdom (1)
Location in exploded diagrams

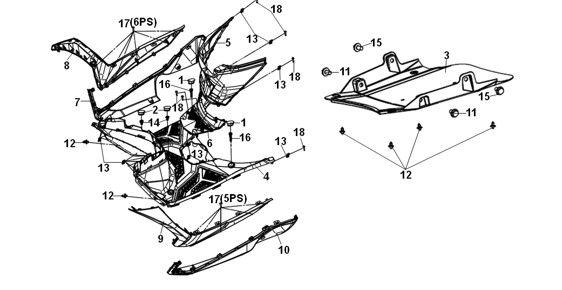

Other parts on this diagram — Floor Panel & Side Cover
- 9390344370 — Sym Jet 14 125 EVO E5 TAPPING SCREW 4x12
- 9390334370 — Sym Jet 14 125 EVO E5 TAPPING SCREW 4*12
- 934040603007 — Sym Jet 14 125 EVO E5 BOLT WASHER 6X30
- 934040601607 — Sym Jet 14 125 EVO E5 BOLT WASHER 6X16
- 934040601207 — Sym Jet 14 125 EVO E5 WASHER BOLT 6X12
- 90302SA4010 — Sym Jet 14 125 EVO E5 SPRING NUT 4MM
- 90302SA4900 — Sym Jet 14 125 EVO E5 SPRING NUT 4MM
- 90115REA000TW — Sym Jet 14 125 EVO E5 PLASTIC NUT6MM
- 90115REA000 — Sym Jet 14 125 EVO E5 PLASTIC NUT 6MM
- 90111J01000 — Sym Jet 14 125 EVO E5 FLANGE BOLT 6MM
- 83630ZJA000KC — Sym Jet 14 125 EVO E5 LH. FR. SIDE COVER (BK-007U) Gloss Black
- 83630ZJA000AE — Sym Jet 14 125 EVO E5 LH. FR. SIDE COVER (GY-7450U) Matt Grey
- 83620ZJA000 — Sym Jet 14 125 EVO E5 L.SIDE COVER
- 83530ZJA000KC — Sym Jet 14 125 EVO E5 RH. FR. SIDE COVER (BK-007U) Matt Black
- 83530ZJA000AE — Sym Jet 14 125 EVO E5 RH. FR. SIDE COVER (GY-7450U) Matt Grey
- 83520ZJA000 — Sym Jet 14 125 EVO E5 R. SIDE COVER
- 80152ZJA000 — Sym Jet 14 125 EVO E5 LWR.CENTER COVER
- 80151ZJA000 — Sym Jet 14 125 EVO E5 UP.CENTER COVER
- 50613ZJA000 — Sym Jet 14 125 EVO E5 UNDER COVER
- 50612ZGA000 — Sym Jet 14 125 EVO E5 CAP B FLR STEP
- 50612APA000 — Sym Jet 14 125 EVO E5 CAP FLR STEP
