Verified fitment — 1 vehicle
Fitment is sourced from official parts catalogues, listed per catalogue market.
United Kingdom (1)
Location in exploded diagrams

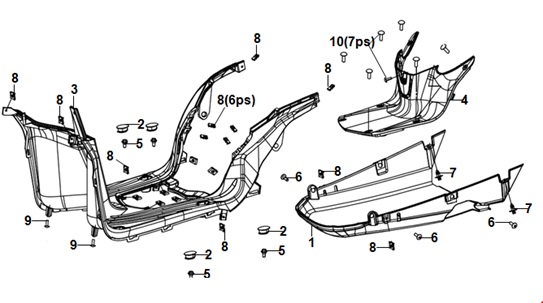

Other parts on this diagram — Floor Panel And Centre Cover
- 9390344340 — Sym Symphony 125 E5 TAPPING SCREW 4x12
- 90302SA4010 — Sym Symphony 125 E5 SPRING NUT 4MM
- 90302SA4900 — Sym Symphony 125 E5 SPRING NUT 4MM
- 90115REA000 — Sym Symphony 125 E5 PLASTIC NUT 6MM
- 90115REA000TW — Sym Symphony 125 E5 PLASTIC NUT6MM
- 90115ATA000 — Sym Symphony 125 E5 FLANGE BOLT 6*16
- 90111AAA000 — Sym Symphony 125 E5 FR. COVER COLLAR
- 80152XWA000 — Sym Symphony 125 E5 CENTER COVER
- 50612APA000 — Sym Symphony 125 E5 CAP FLR STEP
- 50611XWA000 — Sym Symphony 125 E5 UNDER COVER
