64310LM1000Sym CRUiSYM 300 E5 FLOOR PANEL (BK-001U) Matt Black — Genuine Sym Part

Verified fitment — 1 vehicle

Fitment is sourced from official parts catalogues, listed per catalogue market.

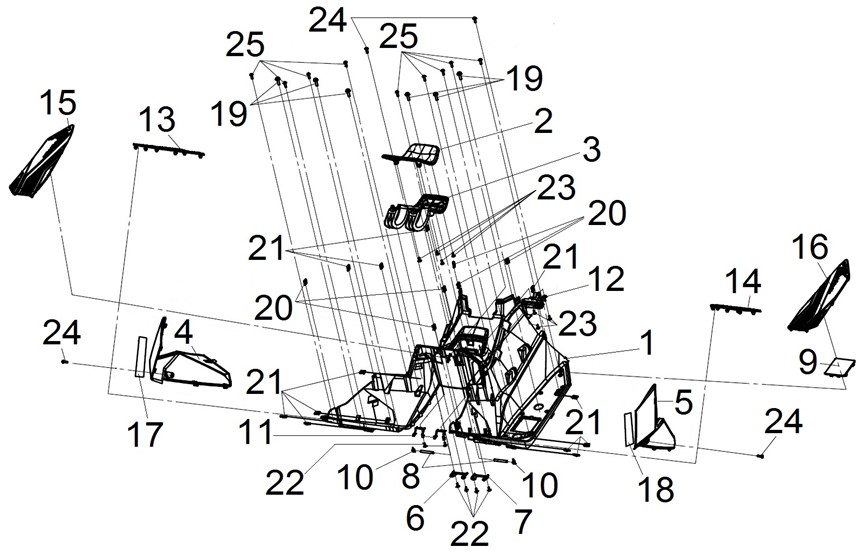

Location in exploded diagrams

Other parts on this diagram — FLOOR PANEL

• 9390345380 — Sym CRUiSYM 300 E5 TAPPING SCREW 5*16
• 9390344480 — Sym CRUiSYM 300 E5 TAPPING SCREW 4*16
• 9390335280 — Sym CRUiSYM 300 E5 TAPPING SCREW 5*12
• 9390334320 — Sym CRUiSYM 300 E5 TAPPING SCREW 4*12
• 90308X04000 — Sym CRUiSYM 300 E5 SPRING NUT 5MM
• 90302M92000 — Sym CRUiSYM 300 E5 SPRING NUT 4MM
• 90111HKD900 — Sym CRUiSYM 300 E5 BOLT FLANGE
• 87132LM1000T2 — Sym CRUiSYM 300 E5 L MARK 300 STRIPE TYPE2
• 87131LM1000T2 — Sym CRUiSYM 300 E5 R MARK 300 STRIPE TYPE2
• 64324LM1000 — Sym CRUiSYM 300 E5 L FLOOR MAT B (BK-001U) Matt Black
• 64323LM1000 — Sym CRUiSYM 300 E5 R FLOOR MAT B (BK-001U) Matt Black
• 64322LM1000 — Sym CRUiSYM 300 E5 L FLOOR MAT A (BK-001U) Matt Black
• 64321LM1000 — Sym CRUiSYM 300 E5 R FLOOR MAT A (BK-001U) Matt Black
• 64320LM1000H1 — Sym CRUiSYM 300 E5 FUEL LID LOCK ASSY
• 64319LM1000 — Sym CRUiSYM 300 E5 FUEL STOP SRRING
• 64318LM1000 — Sym CRUiSYM 300 E5 FUEL LID SPRING
• 64318L3A000 — Sym CRUiSYM 300 E5 RES. TANK LID
• 64317L3A000 — Sym CRUiSYM 300 E5 LID HINGE PIN
• 64316L3A000 — Sym CRUiSYM 300 E5 L. LID HINGE STAY
• 64315L3A000 — Sym CRUiSYM 300 E5 R. LID HINGE STAY
• 64314LM1000KB — Sym CRUiSYM 300 E5 L. FLOOR FAIRING
• 6431GLK1000KB — Sym CRUiSYM 300 E5 R. FLOOR FAIRING ASSY TYPE2 (BK-001C) Gloss Black
• 64313LM1000KB — Sym CRUiSYM 300 E5 R. FLOOR FAIRING
• 64312LM1000 — Sym CRUiSYM 300 E5 FLOOR LID STIFFENER (BK-001U)
