Verified fitment — 2 vehicles
Fitment is sourced from official parts catalogues, listed per catalogue market.
China (2)
Location in exploded diagrams

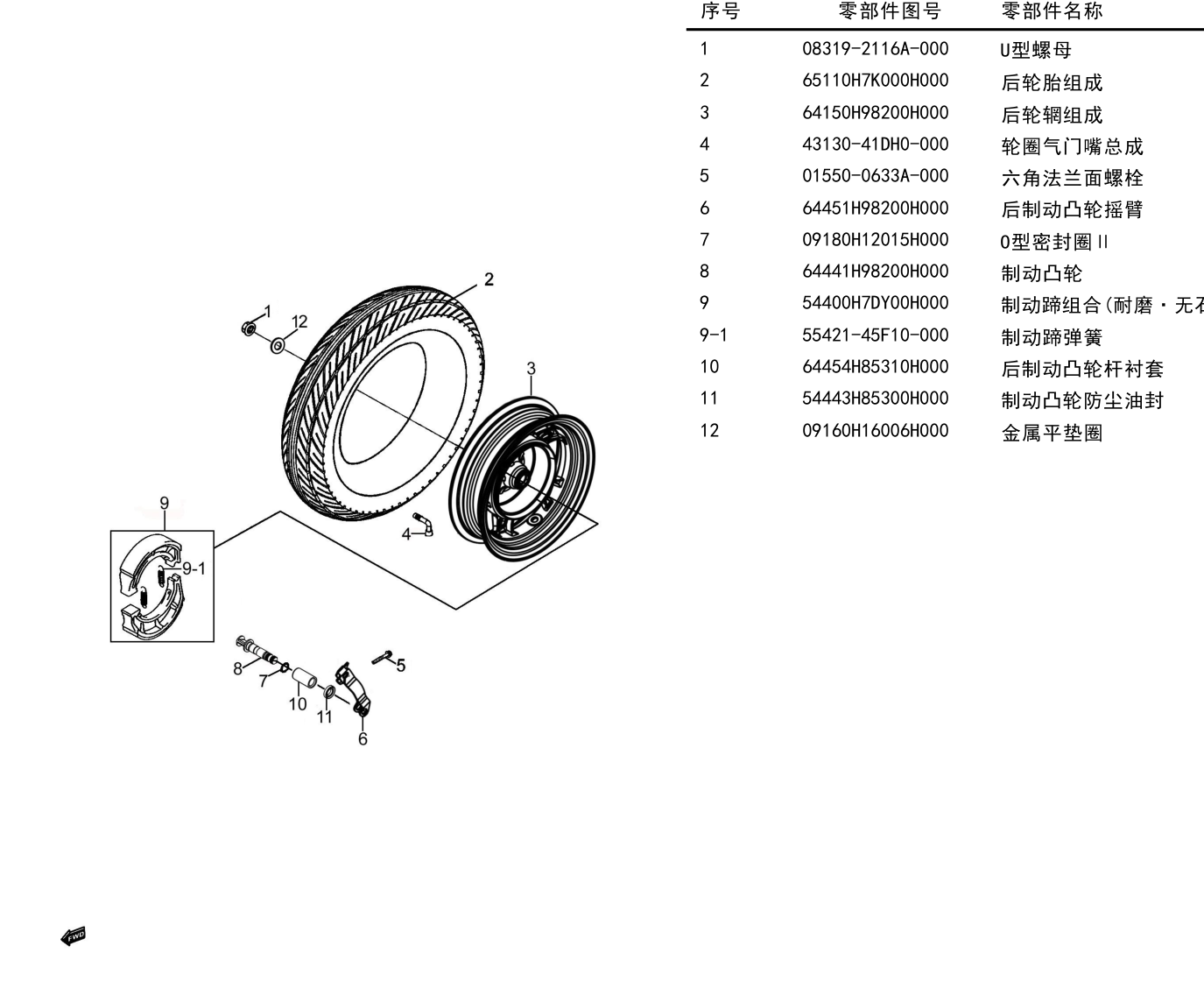

Other parts on this diagram — 后轮组
- #2 65110H7K000H000 — 后轮胎组成
- #4 43130-41DH0-000 — 轮圈气门嘴总成
- #5 01550-0633A-000 — 六角法兰面螺栓
- #6 64451H98200H000 — 后制动凸轮摇臂
- #7 09180H12015H000 — O型密封圈Ⅱ
- #8 64441H98200H000 — 制动凸轮
- #9 54400H7DY00H000 — 制动蹄组合(耐磨·无石棉)
- #9-1 55421-45F10-000 — 制动蹄弹簧
- #10 64454H85310H000 — 后制动凸轮杆衬套
- #11 54443H85300H000 — 制动凸轮防尘油封
- #12 09160H16006H000 — 金属平垫圈
- #1 08319-2116A-000 — U型螺母
