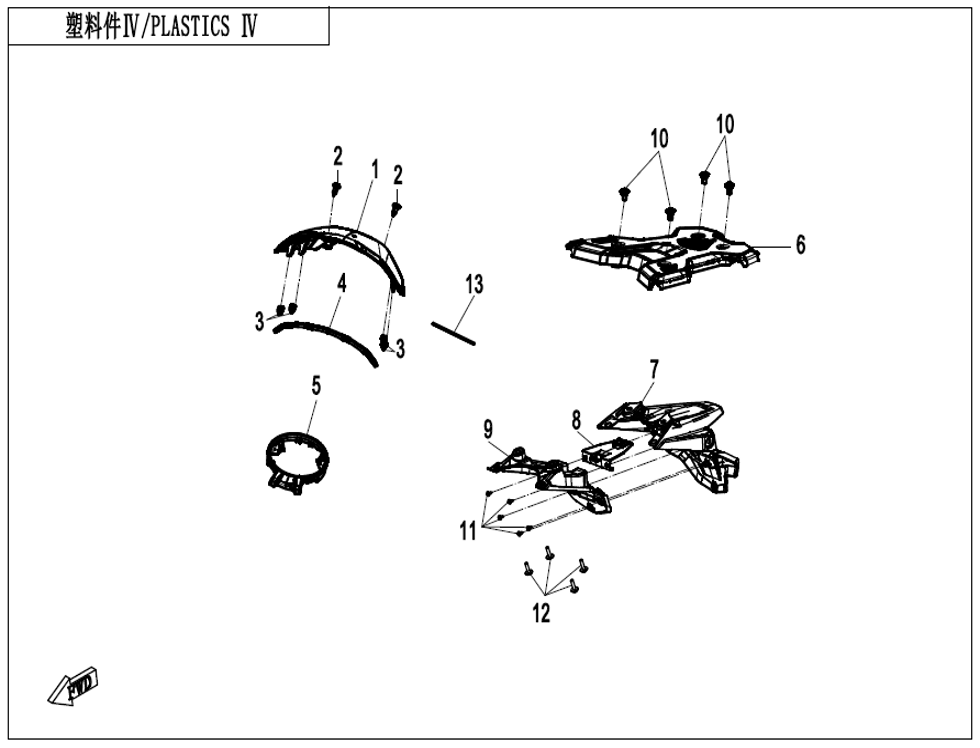

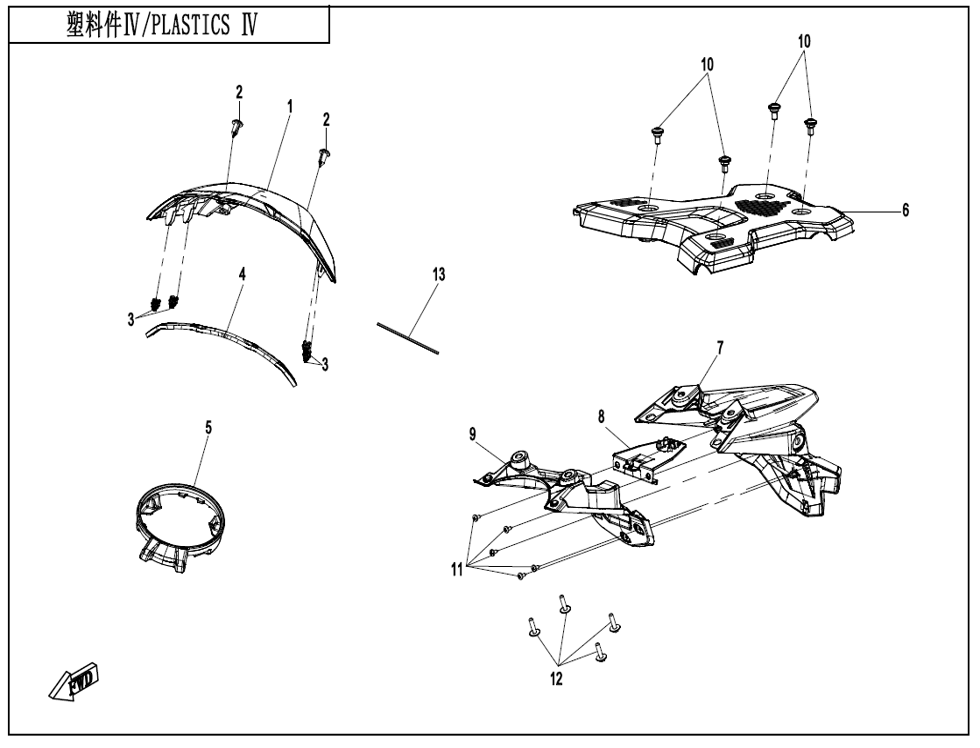

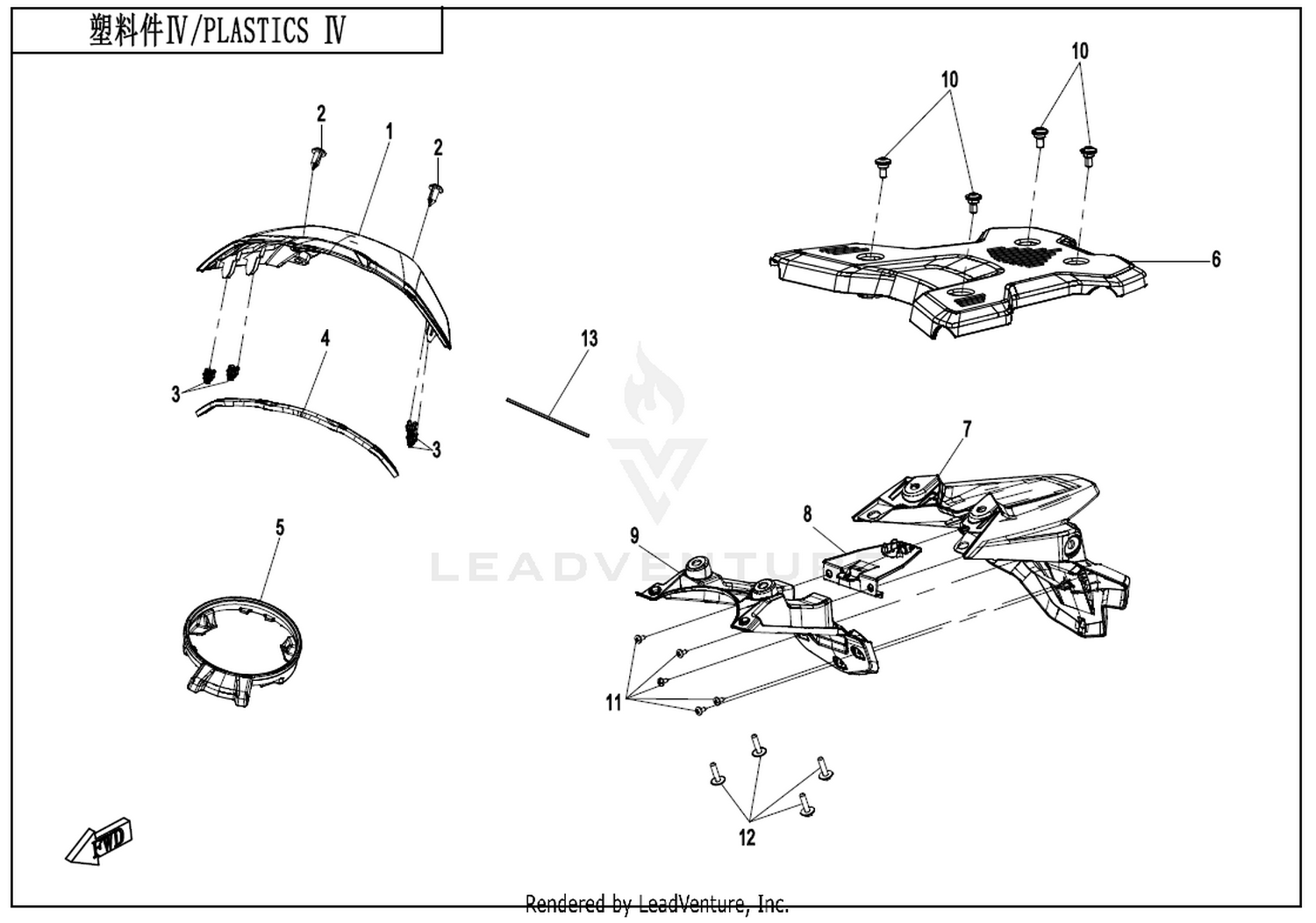

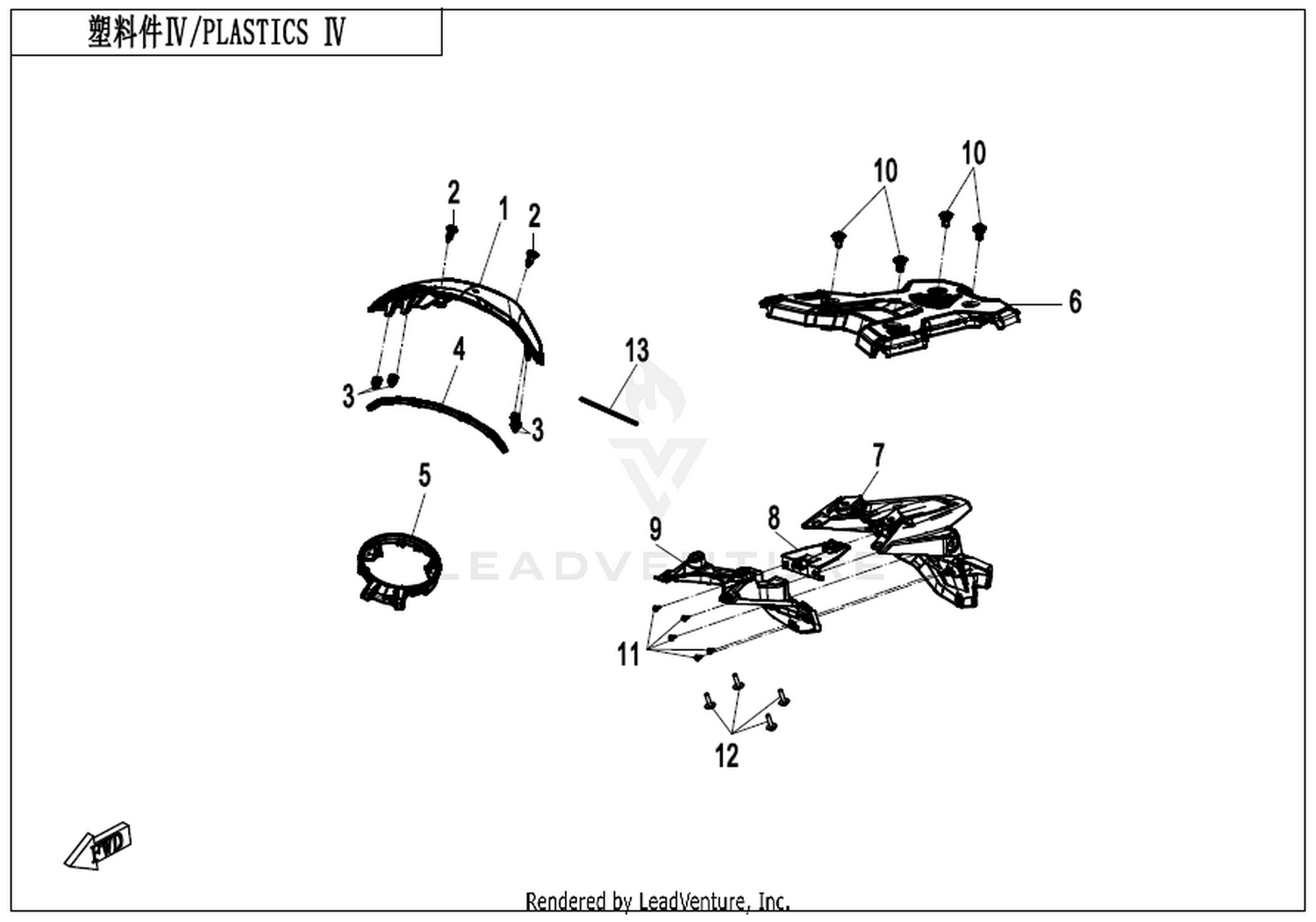

Location in exploded diagrams
Other parts on this diagram — 4 Plastics 4
- #09 6AQV-040802-6000 — Inner Plate, Rear Fender
- #10 5BWV-040017-5000 — Inner Hex Stepped Bolt M5X12
- #15 9060-040310 — Clamp Assy
- #12 6KM#-160420-8001 — Sponge Mat
- #05 6WWV-046301-8002 — Fuel Tank Lock Cover
- #11 30110-420130070 — Self-Tapping Screw St4.2X13@Black Zinc-Plated
- #19 8010-090005 — Bolt M6X16 M6X16
- #01 6WWV-042101-8001-0BV00 — Battery Box Upper Cover Plate Midnight Black
- #06 6WWV-043701-8000 — Cover, Rear Armrest
- #07 6AQV-040801-6000 — Rear Fender
- #13 6WWV-047701-8000 — Battery Box Upper Cover Plate Sponge
- #08 6AQV-040803-6000 — Rear License Light Bracket
