Verified fitment — 3 vehicles
Fitment is sourced from official parts catalogues, listed per catalogue market.

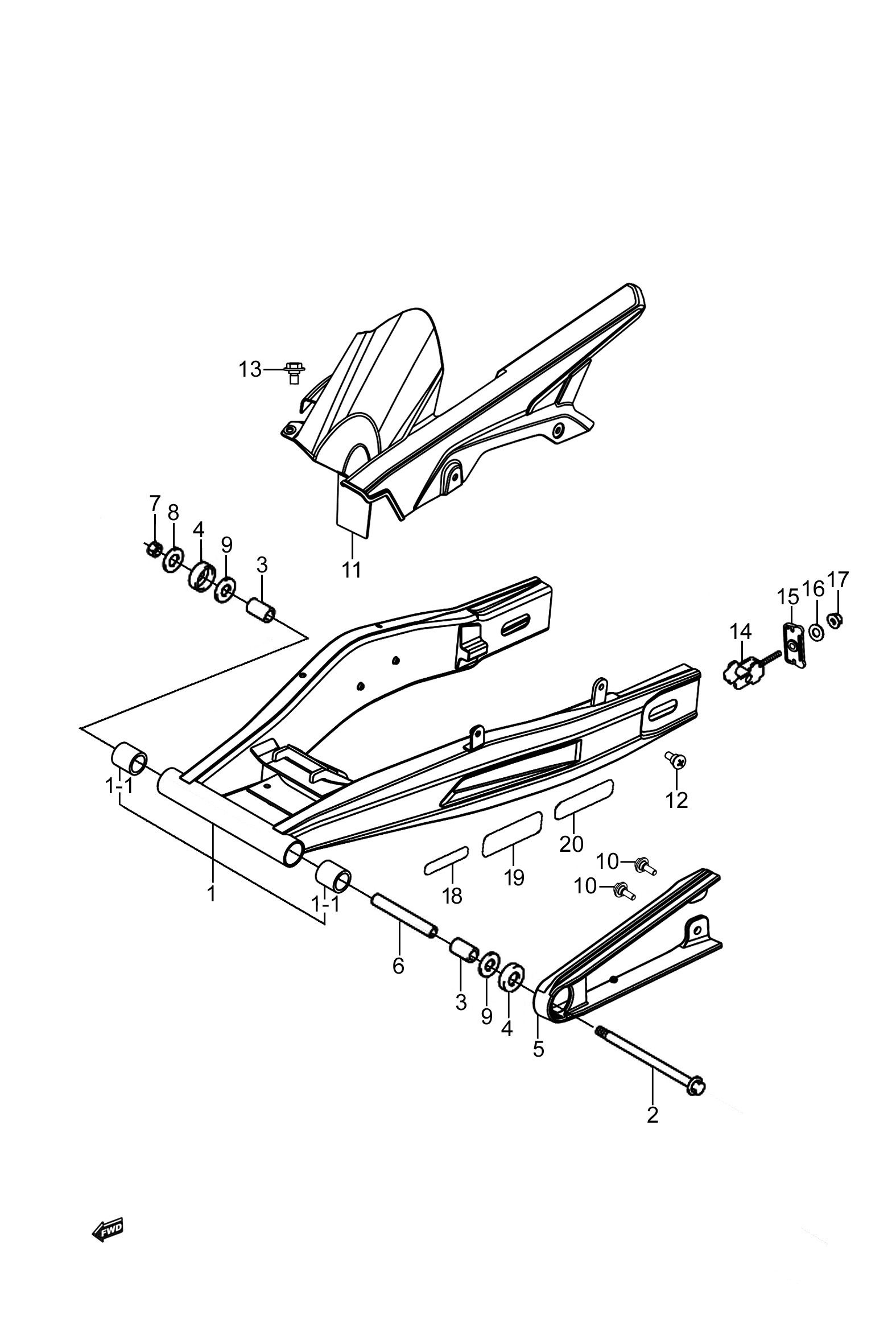

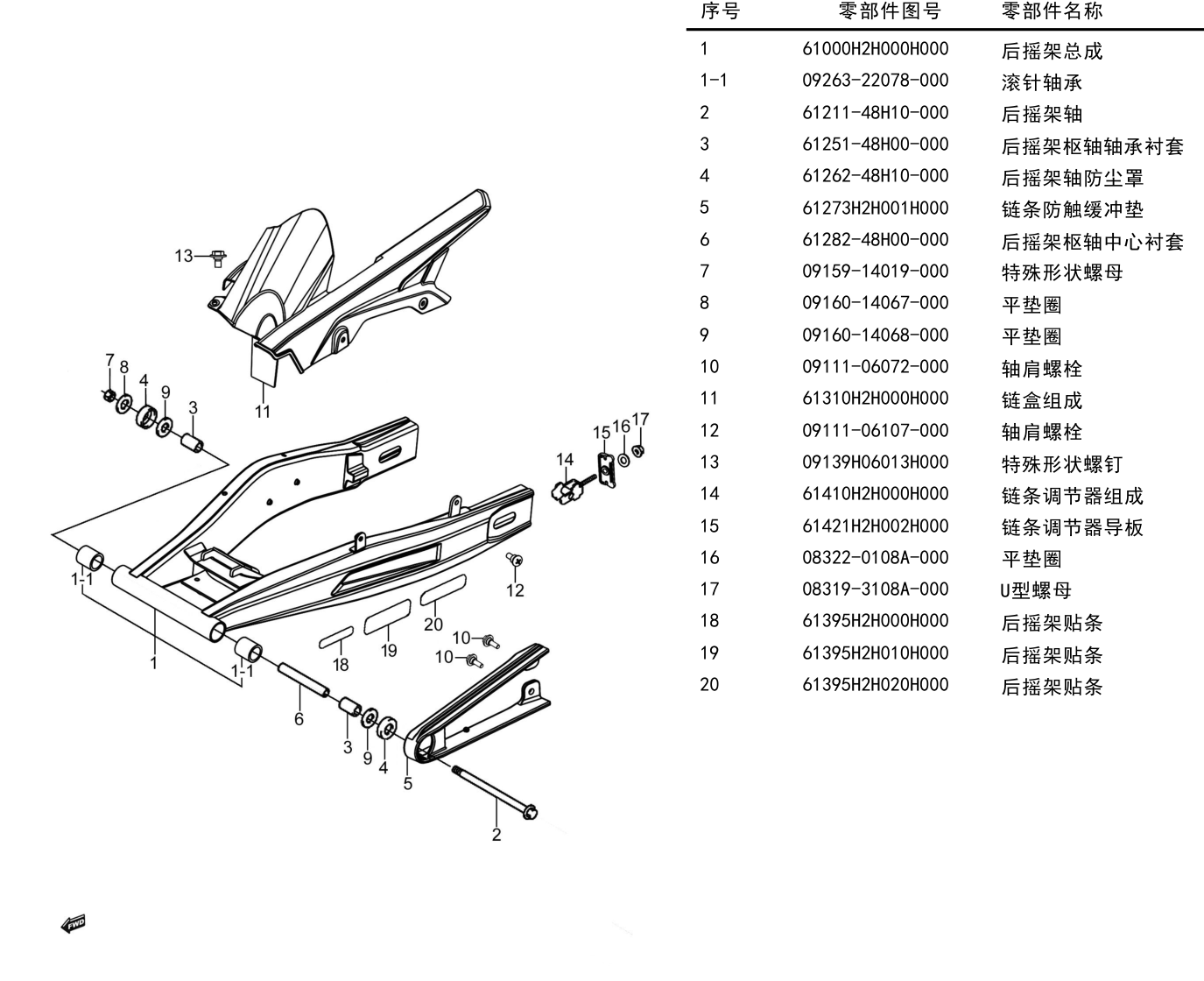

Location in exploded diagrams
Other parts on this diagram — 后摇架组
- #18 61395H2H000H000 — 后摇架贴条
- #19 61395H2H010H000 — 后摇架贴条
- #1 61000H2H000H000 — 后摇架总成
- #1-1 09263-22078-000 — 滚针轴承
- #2 61211-48H10-000 — 后摇架轴
- #3 61251-48H00-000 — 后摇架枢轴轴承衬套
- #4 61262-48H10-000 — 后摇架轴防尘罩
- #5 61273H2H001H000 — 链条防触缓冲垫
- #6 61282-48H00-000 — 后摇架枢轴中心衬套
- #7 09159-14019-000 — 特殊形状螺母
- #8 09160-14067-000 — 平垫圈
- #9 09160-14068-000 — 平垫圈
- #10 09111-06072-000 — 轴肩螺栓
- #11 61310H2H000H000 — 链盒组成
- #12 09111-06107-000 — 轴肩螺栓
- #13 09139H06013H000 — 特殊形状螺钉
- #14 61410H2H000H000 — 链条调节器组成
- #15 61421H2H002H000 — 链条调节器导板
- #16 08322-0108A-000 — 平垫圈
- #17 08319-3108A-000 — U型螺母
