Verified fitment — 1 vehicle
Fitment is sourced from official parts catalogues, listed per catalogue market.
United Kingdom (1)
Location in exploded diagrams

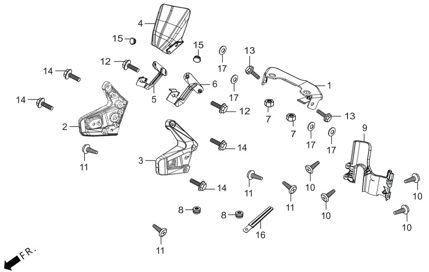

Other parts on this diagram — F1A - Front Fairings
- 90504KWA940S — Hero XPulse 200 WASHER SCREEN
- 91410ABW000S — Hero XPulse 200 CLIP 3X130
- 90862AAB300S — Hero XPulse 200 PLUG,FLY SCREEN
- 960010602000S — Hero XPulse 200 BOLT, FLANGE, SH. 6 X 20
- 960010601600S — Hero XPulse 200 BOLT, FLANGE SH. 6 X 16
- 960010601000S — Hero XPulse 200 BOLT FLANGE SH. 6?10
- 91509GE2760S — Hero XPulse 200 SCREW, WASHER, 5 X 11.5
- 93500050101AS — Hero XPulse 200 SCREW, PAN, 5X10
- 83402ABW000S — Hero XPulse 200 PANEL INNER
- 77209KAG900S — Hero XPulse 200 RUBBER, SEAT STAY MOUNT
- 94001060000SS — Hero XPulse 200 NUT, HEX., 6 MM
- 64142ABWK00S — Hero XPulse 200 STAY SCREEN WIND L COMP
- 64141ABWK00S — Hero XPulse 200 STAY SCREEN WIND R COMP
- 64140ABWL00S — Hero XPulse 200 SCREEN WIND
- 61314ABW900S — Hero XPulse 200 BRACKET HEADLIGHT L
- 61313ABW900S — Hero XPulse 200 BRACKET HEADLIGHT R
