Verified fitment — 5 vehicles
Fitment is sourced from official parts catalogues, listed per catalogue market.

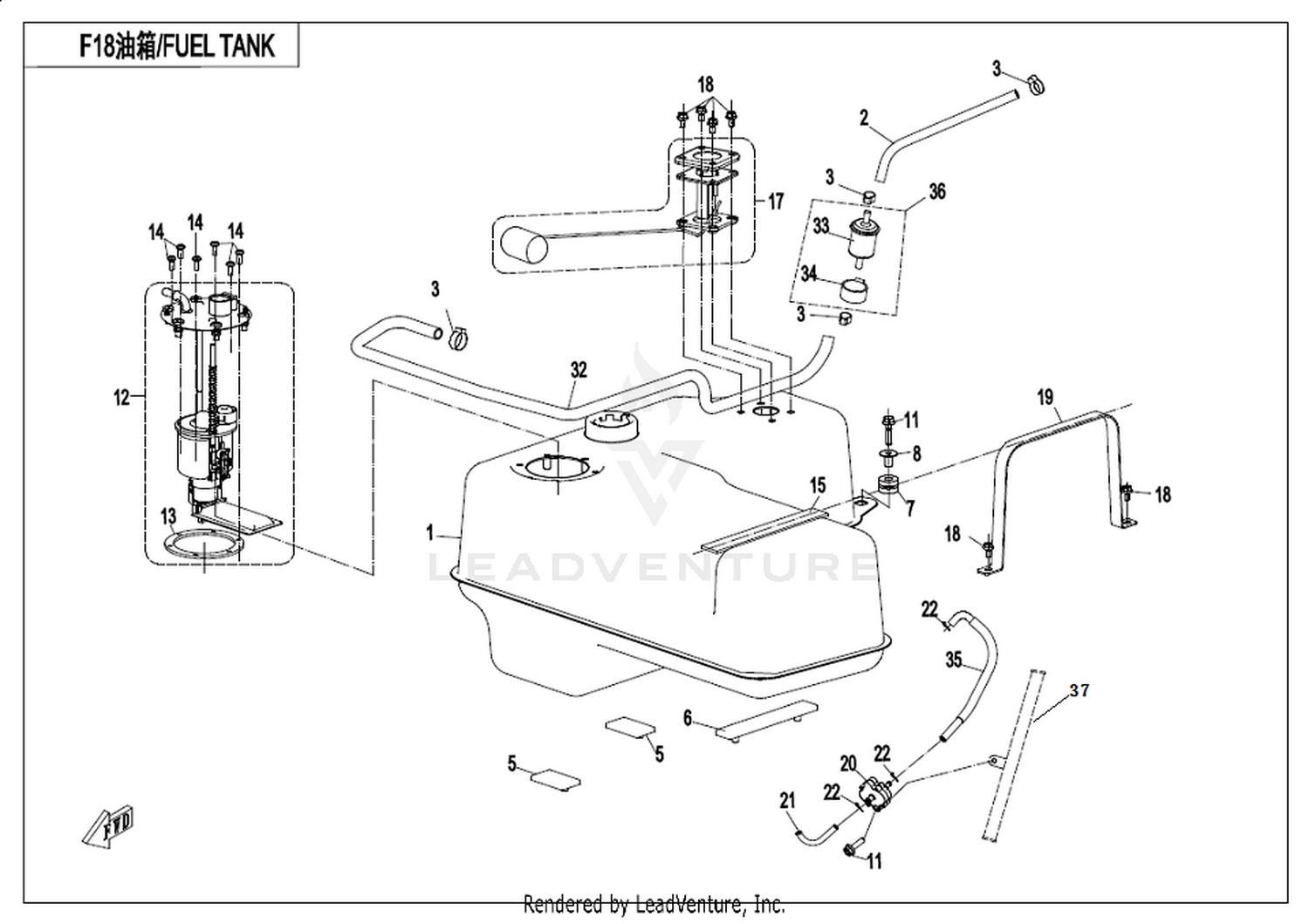

Location in exploded diagrams
Other parts on this diagram — Fuel Tank
- #10 9060-120001 — Lh Strip, Fuel Tank
- #17 9060-170200 — Fuel Sensor Assy
- #17 9060-120002 — Cushion Strip, Fuel Tank
- #10 30601-109010 — Clamp A9
- #10 30105-050016410 — Screw M5X16@Color Zinc-Plated
- #17 9060-170200-20000 — Fuel Sensor Assy Sumitomo Plug
- #10 805A-120004 — Efi Fuel Filter
- #01 9060-121000-1000 — Fuel Tank
- #11 5020-031001 — Rubber Sleeve, Front License Bracket
- #03 5190-020102 — Rubber Damper
- #08 30006-060012870 — Bolt M6X12@Black Zinc
- #11 6090-120221 — Efi Fuel Filter Rubber Sleeve
- #02 9060-120004-00001 — Efi High-Pressure Fuel Hose
- #10 5020-031002 — Rubber Sleeve Liner For Front License Bracket
- #16 901F-120002 — Efi Fuel Pipe Sleeve
- #19 9060-037651 — Bracket, Fuel Tank
- #35 8030-120512 — Fuel Hose 2
- #32 9060-120005-00001 — Efi Fuel Hose 2
- #13 30006-060025840 — Needs Description
- #17 9060-170200-30000 — Fuel Sensor Assy Sumitomo Plug
- #09 7020-120260 — Two-Way Valve
- #15 6090-120220 — Efi Fuel Filter Assy
- #17 9060-170200-1000 — Fuel Sensor Assy
- #21 6070-120400 — Clamp(F14.5) Dia14.5
