5UWB-031000-30000FRAME ASSY — Genuine CF MOTO Part
CF MOTOoem
5UWB-031000-30000 - FRAME ASSY #1
Verified fitment — 7 vehicles
Fitment is sourced from official parts catalogues, listed per catalogue market.

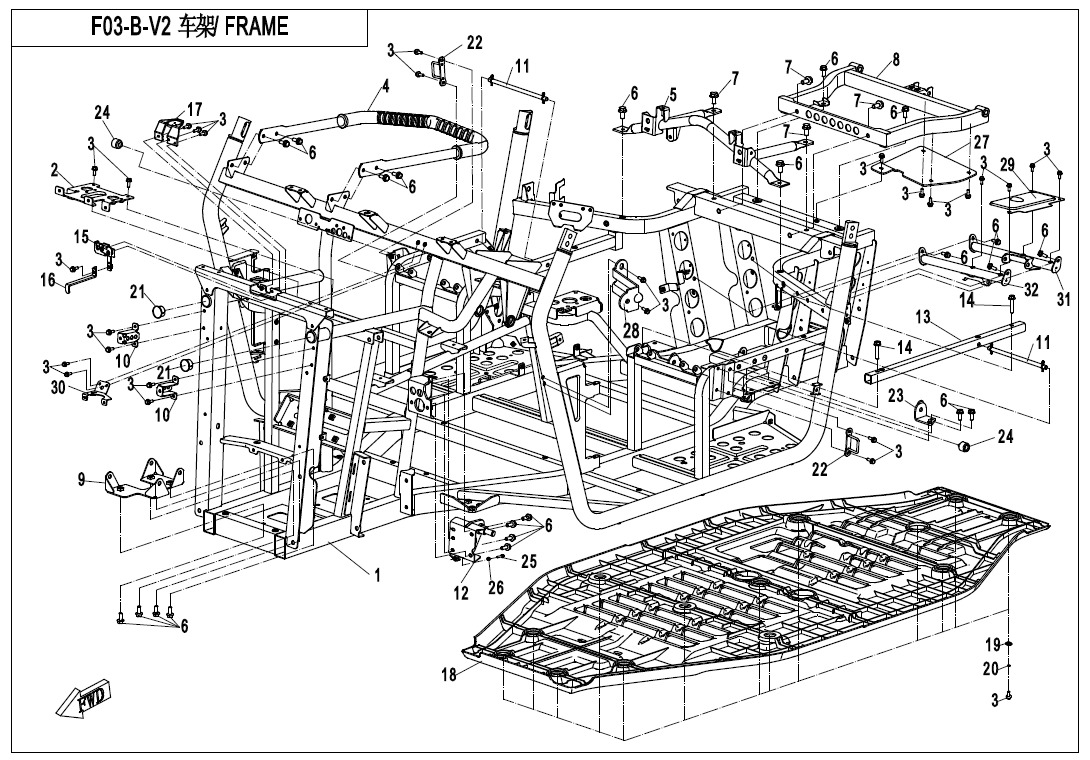

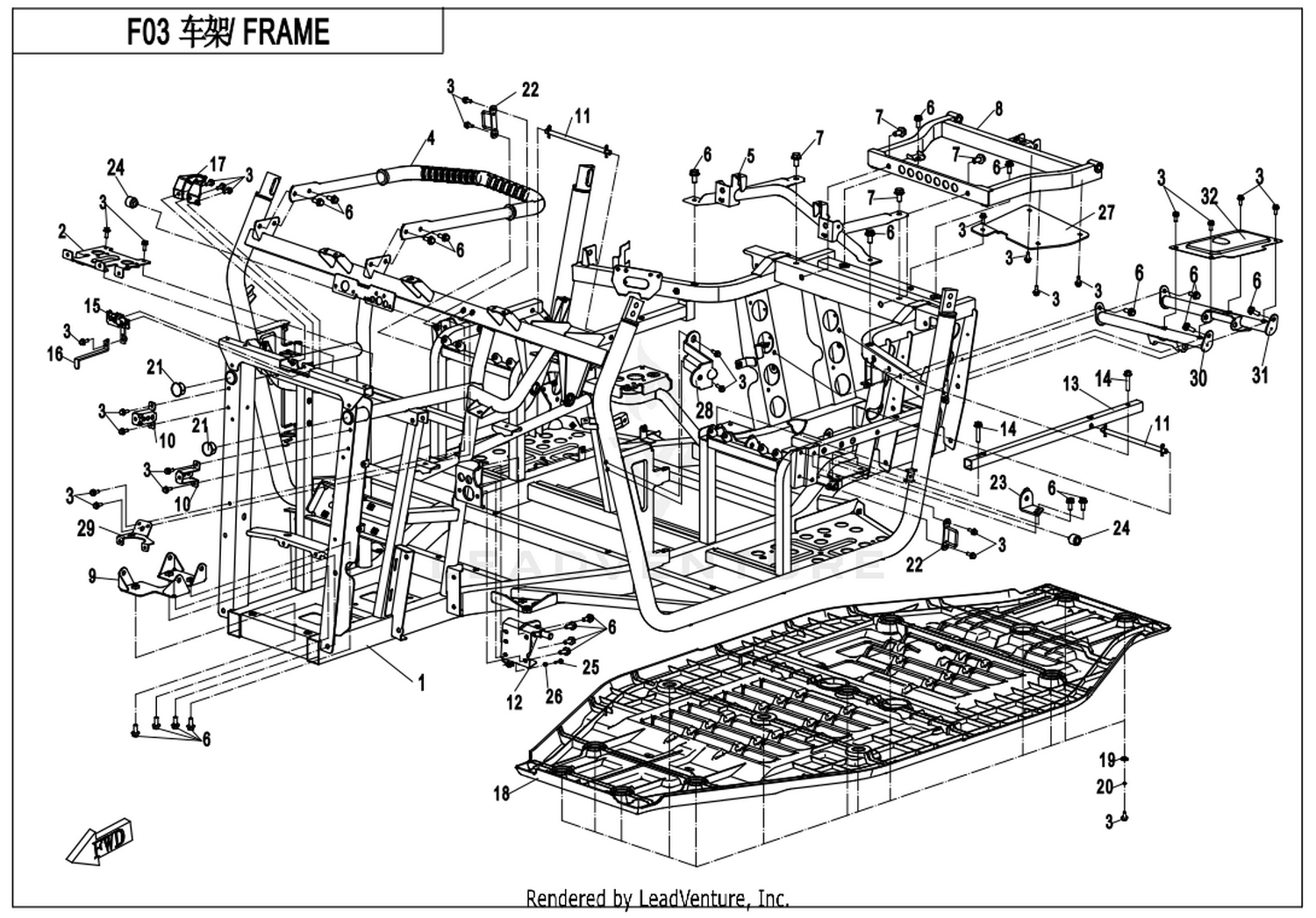

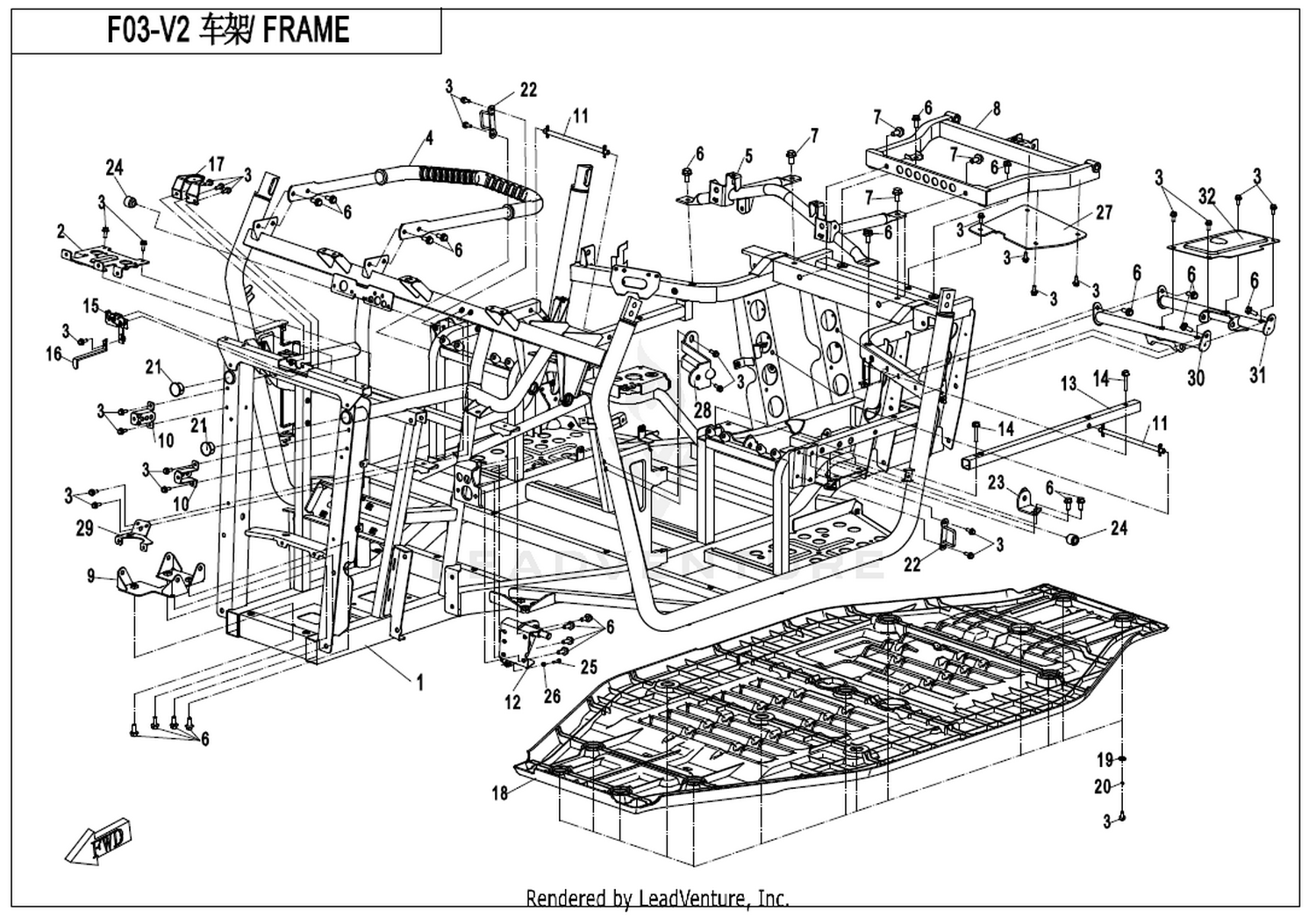

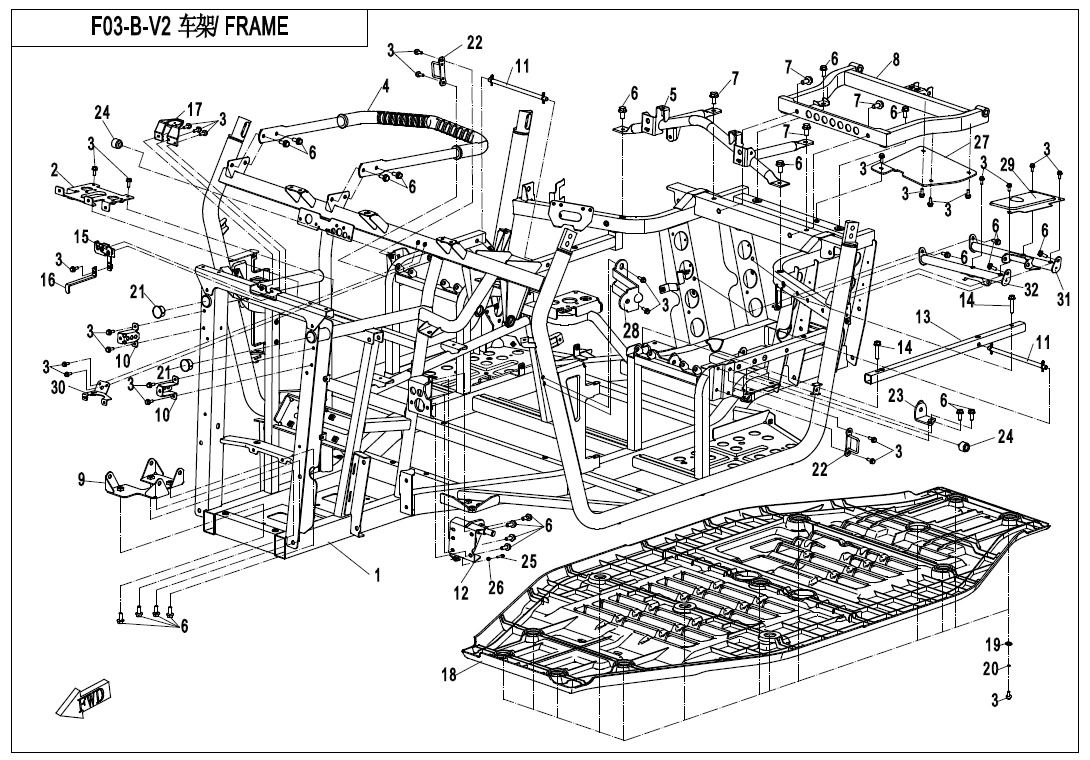

Location in exploded diagrams
Other parts on this diagram — FRAME
- #23 7030-038711 — REAR JOINT ENGINE
- #19 9060-040028 — BASE PLATE GASKET
- #20 30303-060112 — WASHER
- #21 9060-038123 — FRAME PLUG
- #22 7030-370700 — LOCK HOOK
- #2 7030-037110 — UPPER BRACKET?RADIATOR
- #3 30006-060016810 — BOLT M6X16
- #4 7030-037210-10000 — FRONT ARMREST
- #5 7030-037400-30000 — BRACKET ASSY, SEAT BELT BUCKLE
- #6 30006-080020810 — BOLT M8X20
- #7 30006-102025810 — BOLT M10X1.25X25
- #8 7030-037600-10000 — BRACKET, CARGO BOX ELECTROPHORESIS BLACK
- #9 7030-038110-10000 — BRACKET FRONT AXLE
- #10 7030-038210 — BRACKET, FRONT TOP COVER
- #11 7030-037810 — ROD, SEAT LOCK
- #12 7030-039110 — BRACKET, FOOT PEDAL ELECTROPHORESIS BLACK
- #13 7030-037710 — INNER BEAM, LH SEAT ELECTROPHORESIS BLACK
- #14 30006-080040810 — BOLT M8X40
- #15 7030-010200 — LOCK, FRONT COVER
- #16 7030-010201 — LEVER,FRONT COVER LOCK
- #17 7030-040192 — SUPPORT PLATE SERING
- #18 7030-040711-10000 — BASE PLATE
- #24 9030-370901-10001 — CUSHION RUBBER
- #25 30006-060025810 — BOLT M6X25
