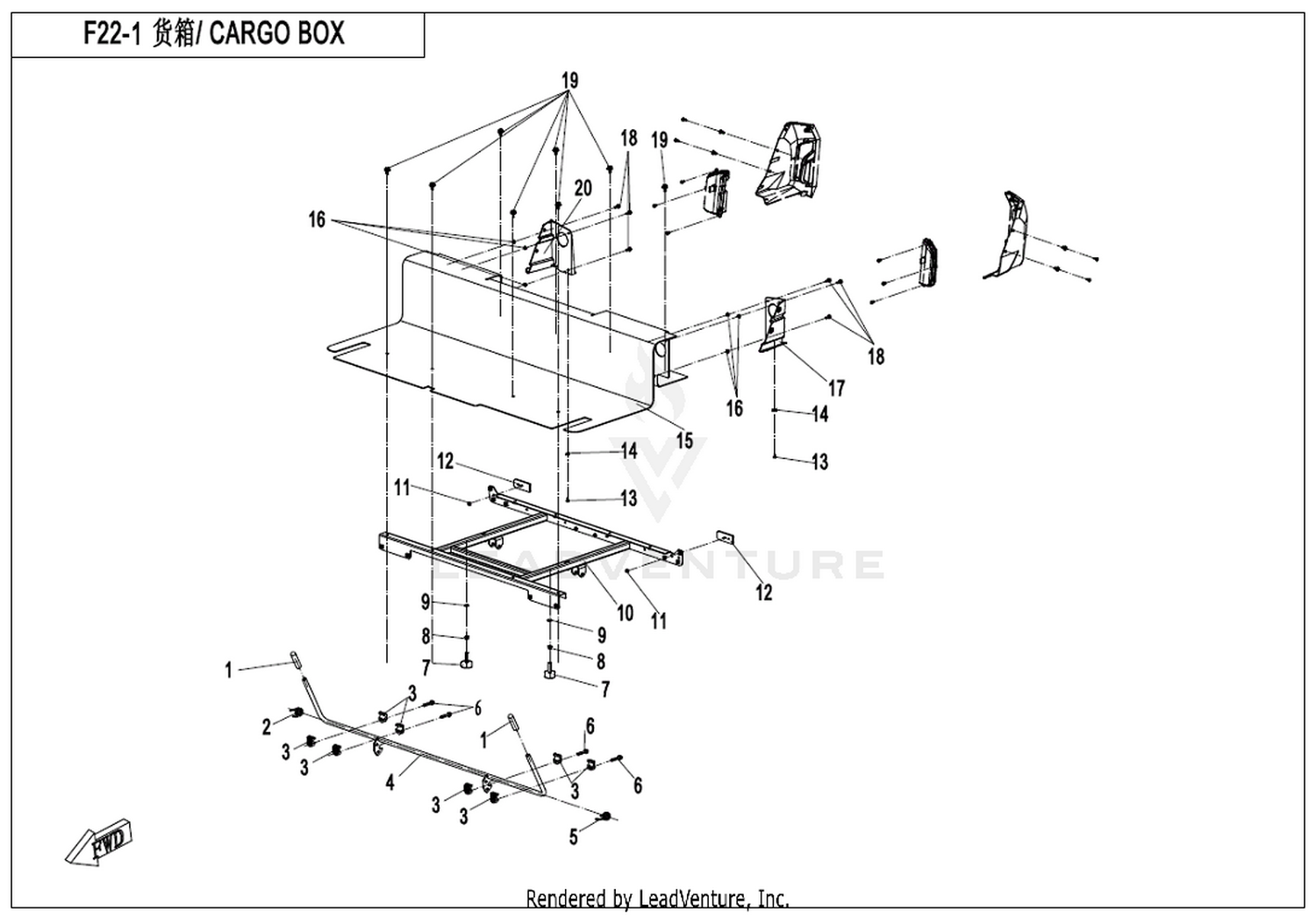

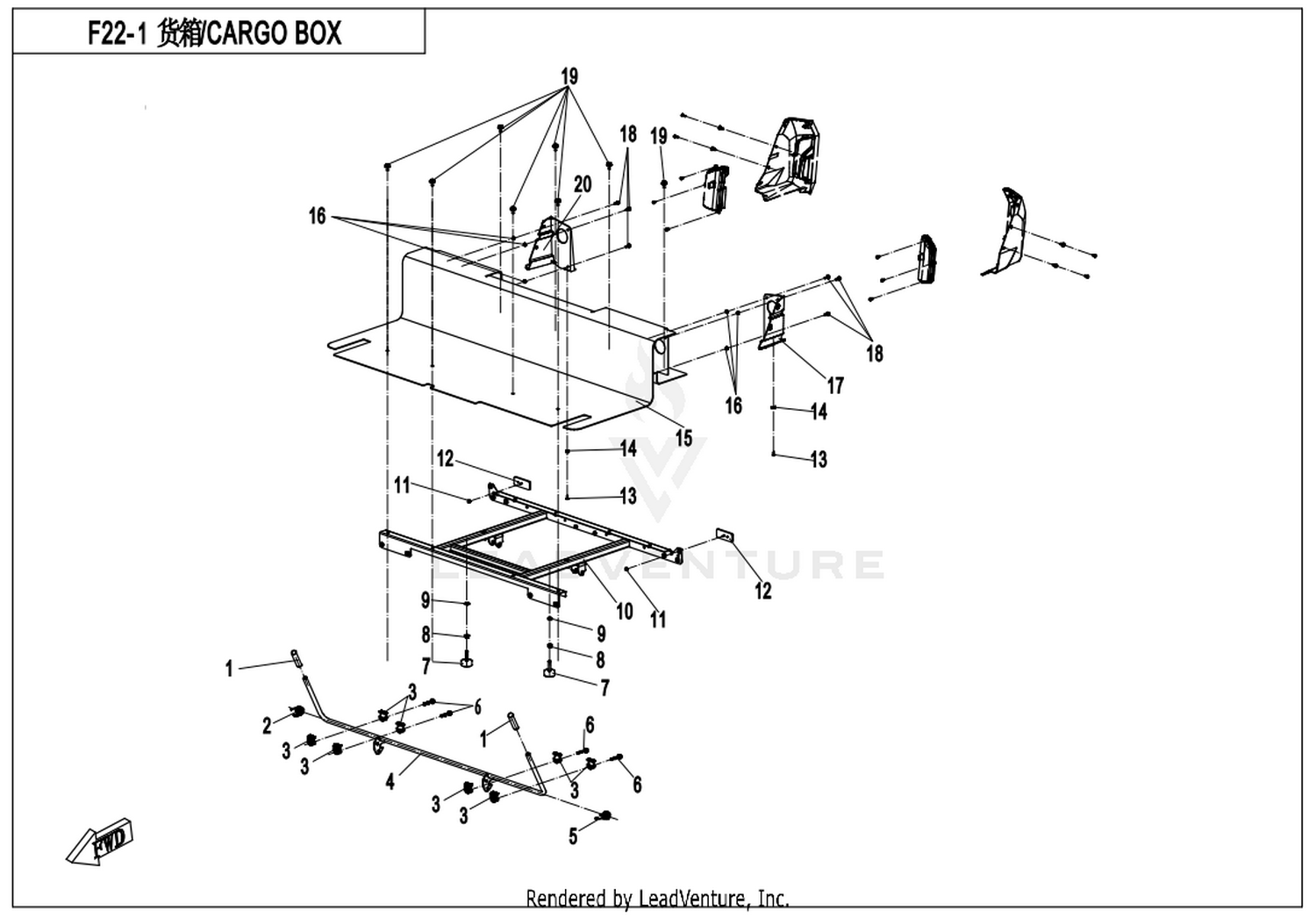

Location in exploded diagrams








Other parts on this diagram — Cargo Box
- #42 7030-221122 — Rh Return Spring, Hook
- #20 30200-080810 — Nut M8
- #19 8010-000002 — Clamp St4.2
- #05 7030-221123 — Collar, Rotate Shaft
- #07 30303-080112 — Washer F8@Color Zinc Trivalent Chromium
- #15 5UW2-220111 — Rear Rack
- #40 7030-221110 — Rotation Shaft
- #31 7030-221200-10001 — Bracket,Cargo Box
- #48 30200-060810 — Nut M6
- #37 7030-221121 — Lh Return Spring, Hook
- #10 30200-050810 — Nut M5
- #17 5UW2-220112 — Bracket, Lh Tail Light
- #19 30006-080045810 — Bolt M8X45@Color Zinc Trivalent Chromium
- #08 5190-160230-00002 — Rear Reflector
- #04 30006-060016870 — Bolt M6×16
- #09 7030-220104 — Rotate Sleeve
- #34 7030-221710 — Cargo Box Adjusting Rubber Damper
- #11 30110-420160010 — Self-Tapping Screw St4.2×16
- #01 30006-080016810 — Bolt M8X16@Color Zinc Trivalent Chromium
