5HY0-230010REINFORCEMENT BRACKET, WINCH BRACKET — Genuine CF MOTO Part
CF MOTOoem
5HY0-230010 - REINFORCEMENT BRACKET, WINCH BRACKET #17
Verified fitment — 25 vehicles
Fitment is sourced from official parts catalogues, listed per catalogue market.
Australia (16)
- 2023 CF MOTO UFORCE 1000 EPS
- 2024 CF MOTO UFORCE 1000 EPS
- 2025 CF MOTO UFORCE 1000 EPS
- 2021 CF MOTO UFORCE 1000 EPS HUNTER
- 2022 CF MOTO UFORCE 1000 EPS HUNTER
- 2023 CF MOTO UFORCE 1000 EPS HUNTER
- 2024 CF MOTO UFORCE 1000 EPS HUNTER
- 2025 CF MOTO UFORCE 1000 EPS HUNTER
- 2026 CF MOTO UFORCE 1000 EPS HUNTER
- 2022 CF MOTO UFORCE 1000 EPS TREK
- 2023 CF MOTO UFORCE 1000 EPS TREK
- 2024 CF MOTO UFORCE 1000 EPS TREK
- 2025 CF MOTO UFORCE 1000 EPS TREK
- 2022 CF MOTO UFORCE 1000XL EPS
- 2023 CF MOTO UFORCE 1000XL EPS
- 2025 CF MOTO UFORCE 1000XL EPS
Manufacturer reference prices
Catalogue / RRP reference only — the live MotoDoc price is on the product page.
| Currency | Reference price | Type | Source |
|---|---|---|---|
| EUR | 59.57 | listing | cfmoto.quadzillaparts.co.uk |
| GBP | 55.08 | listing | cfmoto.quadzillaparts.co.uk |

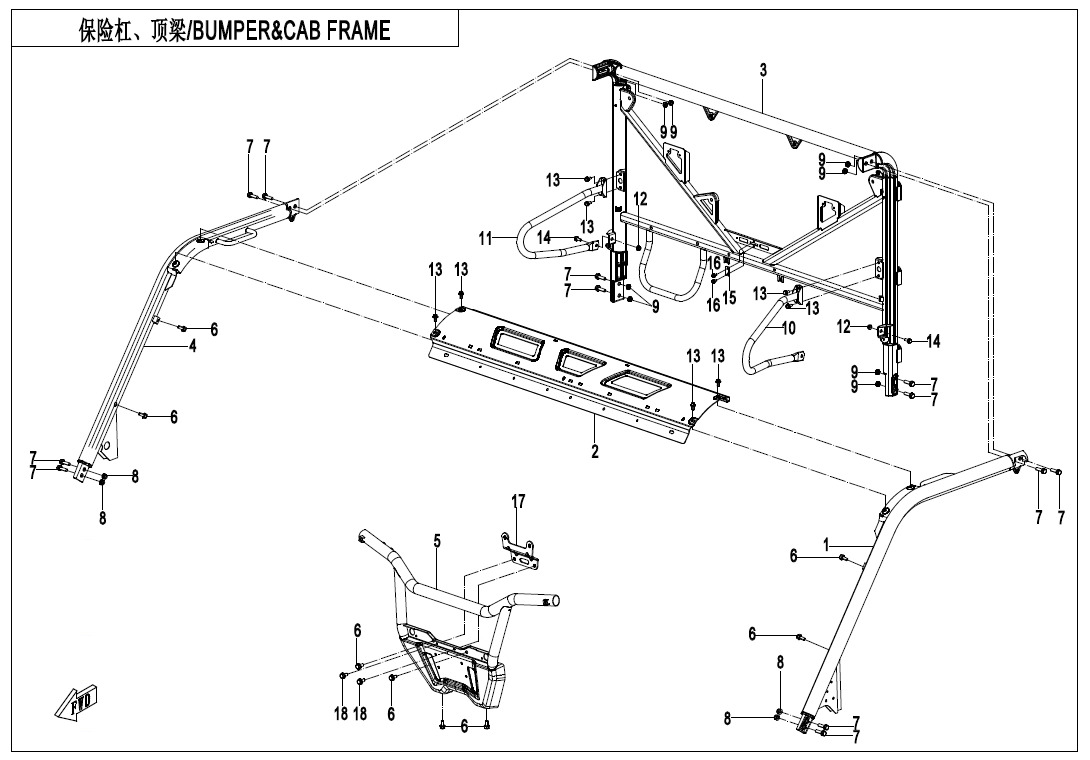

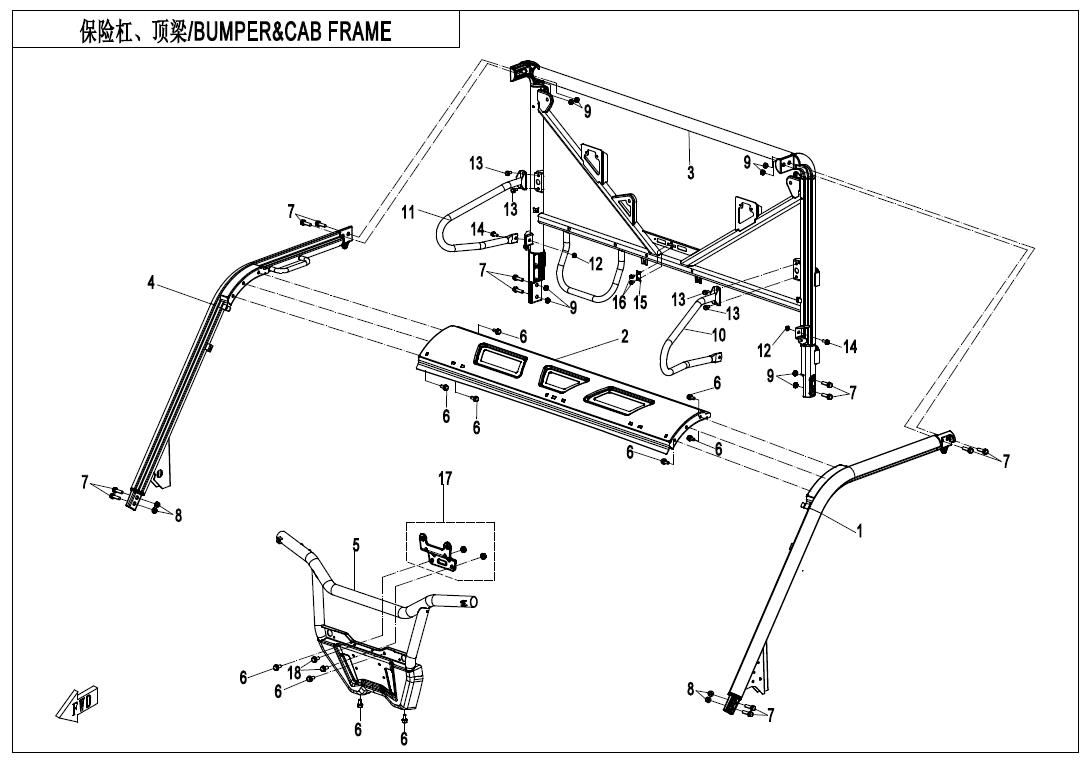

Location in exploded diagrams
Other parts on this diagram — BUMPER @^ CAB FRAME
- #1 5HY0-230100-5B200 — LH FRAME, FRONT CAB
- #2 5HY0-230107-4B200 — MOUNTING PLATE, TOP ROOF MATTE BLACK
- #3 5HY0-230200-5B200 — REAR CAB ASSY
- #4 5HY0-230400-5B200 — RH FRAME, FRONT CAB
- #5 5HY0-231100-2B200 — BUMPER ASSY MATTE BLACK
- #6 30006-102020810 — BOLT M10X1.25X20
- #7 30006-102035110 — BOLT M10X1.25X35
- #8 30204-102810 — NUT M10X1.25
- #9 30225-102810 — NUT M10X1.25
- #10 5HY0-230410-1B200 — LH PROTECTION PIPE, PASSENGER
- #11 5HY0-230420-1B200 — RH PROTECTION PIPE, PASSENGER MATTE BLACK
- #12 30204-080810 — NUT M8
- #13 30006-080016810 — BOLT M8X16
- #14 30006-080020810 — BOLT M8X20
- #15 5HY0-230520 — FIXING SEAT, MIDDLE BACKREST
- #16 30006-060012870 — BOLT M6X12
- #18 30102-102020810 — SCREW M10X1.25X20
- #19 30200-102800 — HEX NUT M10X1.25 Replacing: 30200-102810 - NUT M10X1.25
