5HY0-030070ACCESSORIES MOUNT BRACKET — Genuine CF MOTO Part
CF MOTOoem
5HY0-030070 - ACCESSORIES MOUNT BRACKET #6
Verified fitment — 3 vehicles
Fitment is sourced from official parts catalogues, listed per catalogue market.

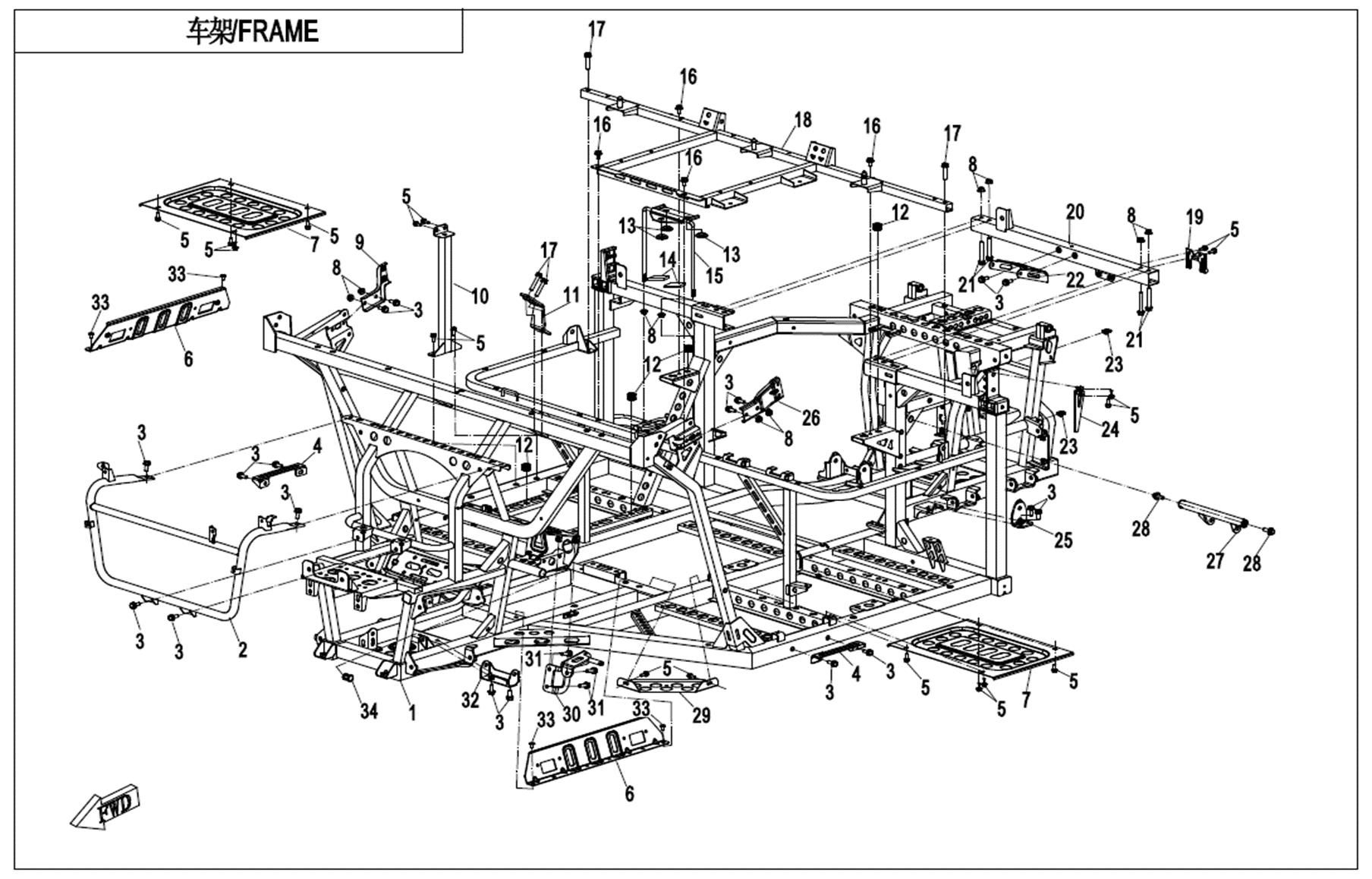

Location in exploded diagrams
Other parts on this diagram — FRAME
- #8 30204-080810 — NUT M8
- #1 5HY0-031000 — FRAME ASSY
- #2 5HY0-030100 — PROTECTION PIPE, WATER TANK
- #3 30006-080020810 — BOLT M8X20
- #4 5HY0-030003 — SUPPORT, FOOTREST
- #5 30006-060016810 — BOLT M6X16
- #7 5HY0-030005 — PANEL, FUEL TANK
- #9 5HY0-030430 — MOUNT SEAT, LOCK HOOK(RH)
- #10 5HY0-030440 — SUPPORTER, SEAT ELECTROPHORESIS BLACK
- #11 5HY0-030450 — BRACKET, GEAR SHIFTING LINE
- #12 5020-031001 — RUBBER SLEEVE, FRONT LICENSE BRACKET
- #13 9010-030005 — RUBBER WASHER
- #14 9010-120008 — SPONGE DAMPER, FUEL TANK
- #15 7000-031820 — PRESS PLATE, BATTERY
- #16 30006-080014810 — BOLT M8X14
- #17 30006-080040810 — BOLT M8X40
- #18 5HY0-030200 — MOUNT SEAT, SEAT
- #19 5HY0-030060 — MOUNT SEAT, IGNITION COIL
- #20 5HY0-030500 — REINFORCEMENT PIPE
- #21 30006-080060810 — BOLT M8X60
- #22 5HY0-030053 — MOUNT PLATE
- #23 8030-040800-00001 — NUT CLIP M6 Replacing: 8030-040800 - NUT CLIP M6
- #24 5HY0-030410 — MOUNT SEAT, REGULATOR
- #25 5HY0-030001 — REAR JOINT PLATE,ENGINE
