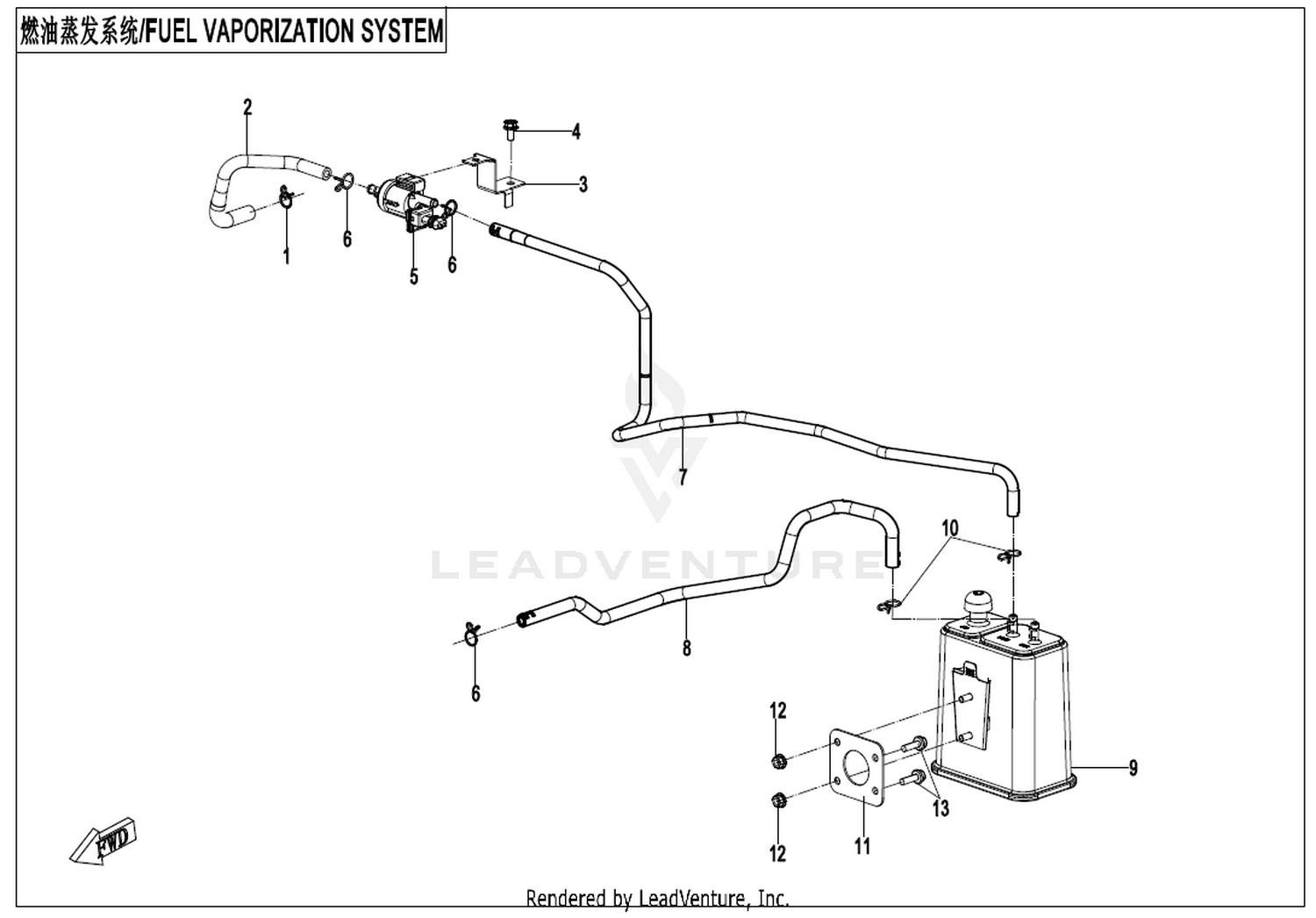

Location in exploded diagrams
Other parts on this diagram — Fuel Evaporation System
- #02 5HYV-360004-6000 — Fuel Vapor Desorption Hose 2
- #08 5HYV-360001-6001 — Fuel Vapor Adsorption Hose 1
- #03 5HYV-360008-6000 — Canister Magnetic Valve Bracket
- #08 30006-060012870 — Bolt M6X12@Black Zinc
- #12 30601-111010 — Clamp A11@Color Zinc Trivalent Chromium
- #13 1F3V-172000-1000 — Canister Magnetic Valve
- #11 9AWA-030008 — Canister Bracket
- #05 30601-112010 — Clamp A12@Color Zinc Trivalent Chromium
- #14 30204-060810 — Nut M6
- #22 30601-114010 — Clamp "
- #07 5HYV-360003-6001 — Fuel Vapor Desorption Hose 1
- #04 30006-060016870 — Bolt M6×16
