5BYV-030500-6000LH REAR DOOR BRACKET ASSY — Genuine CF MOTO Part
CF MOTOoem
5BYV-030500-6000 - LH REAR DOOR BRACKET ASSY #23
Verified fitment — 7 vehicles
Fitment is sourced from official parts catalogues, listed per catalogue market.
United States (3)
United Kingdom (2)
Manufacturer reference prices
Catalogue / RRP reference only — the live MotoDoc price is on the product page.
| Currency | Reference price | Type | Source |
|---|---|---|---|
| EUR | 26.86 | listing | cfmoto.quadzillaparts.co.uk |
| GBP | 24.84 | listing | cfmoto.quadzillaparts.co.uk |
| USD | 44.99 | listing | cfmotousaparts.com |

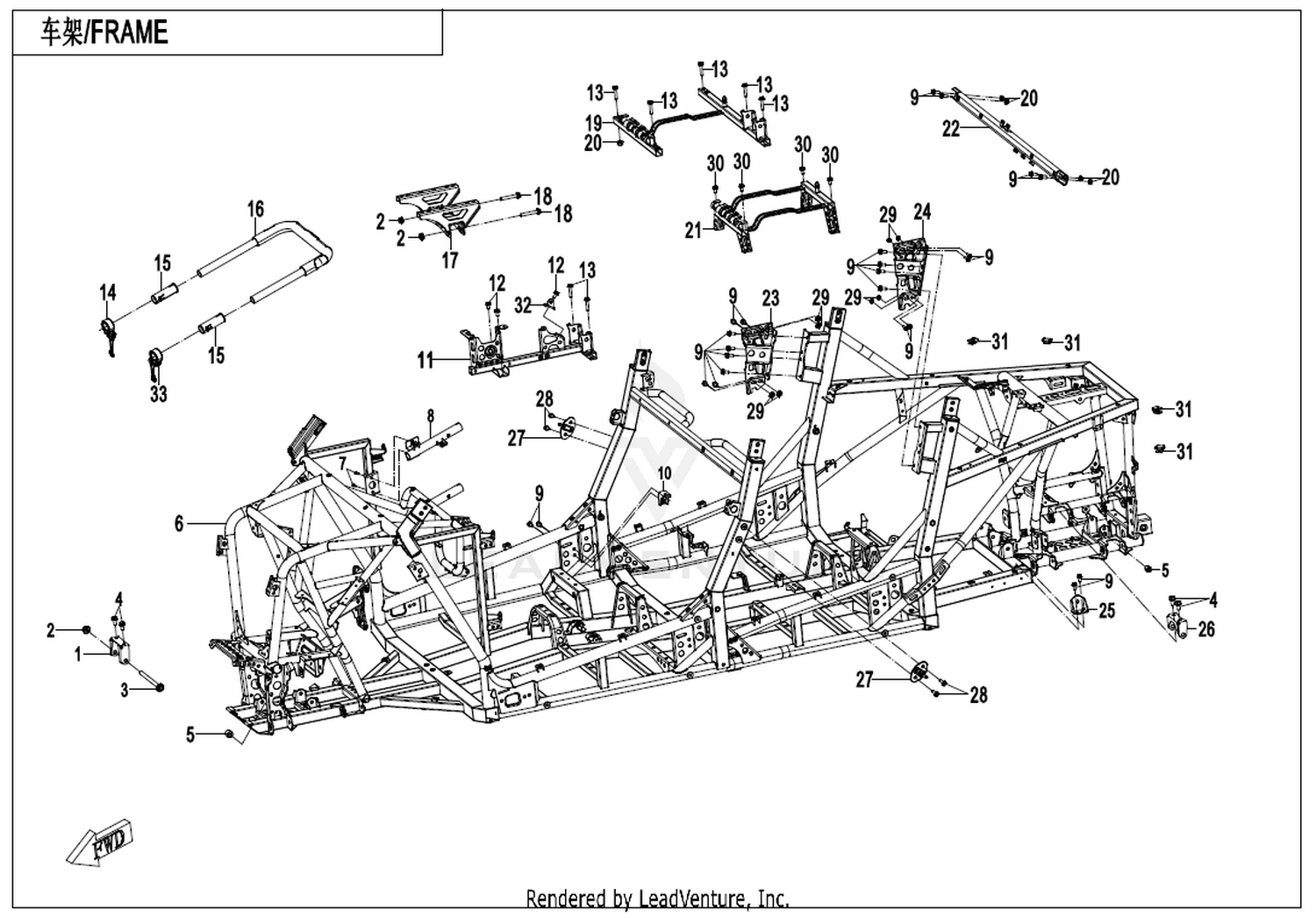

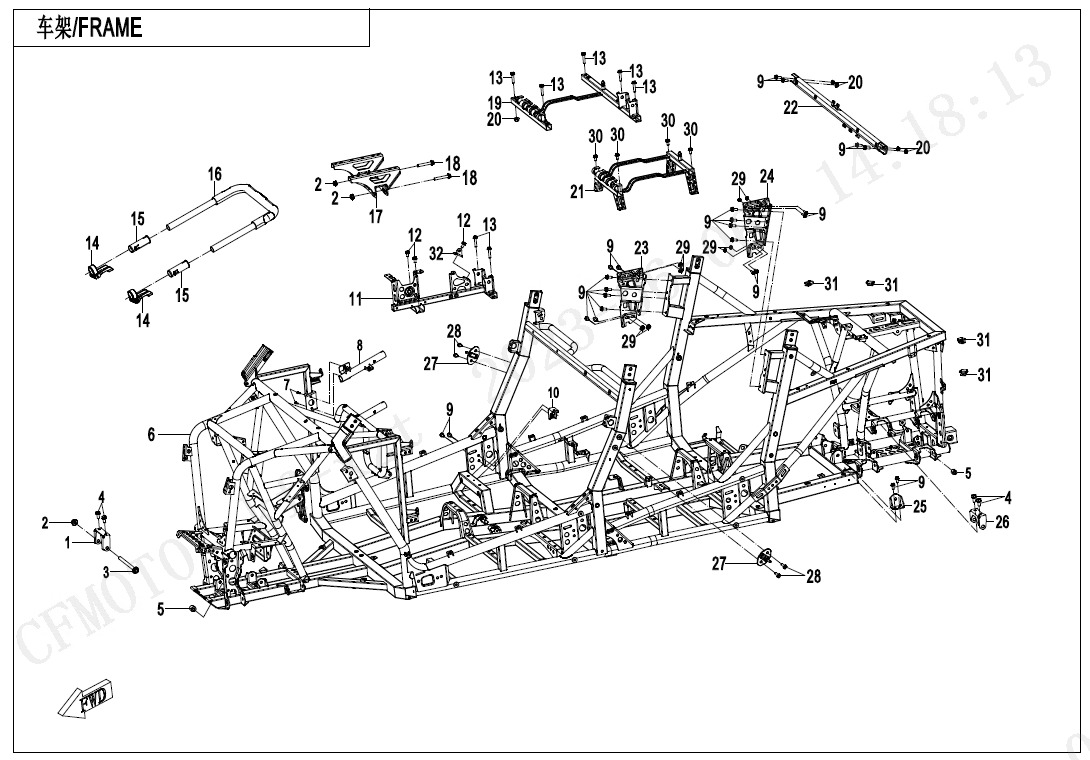

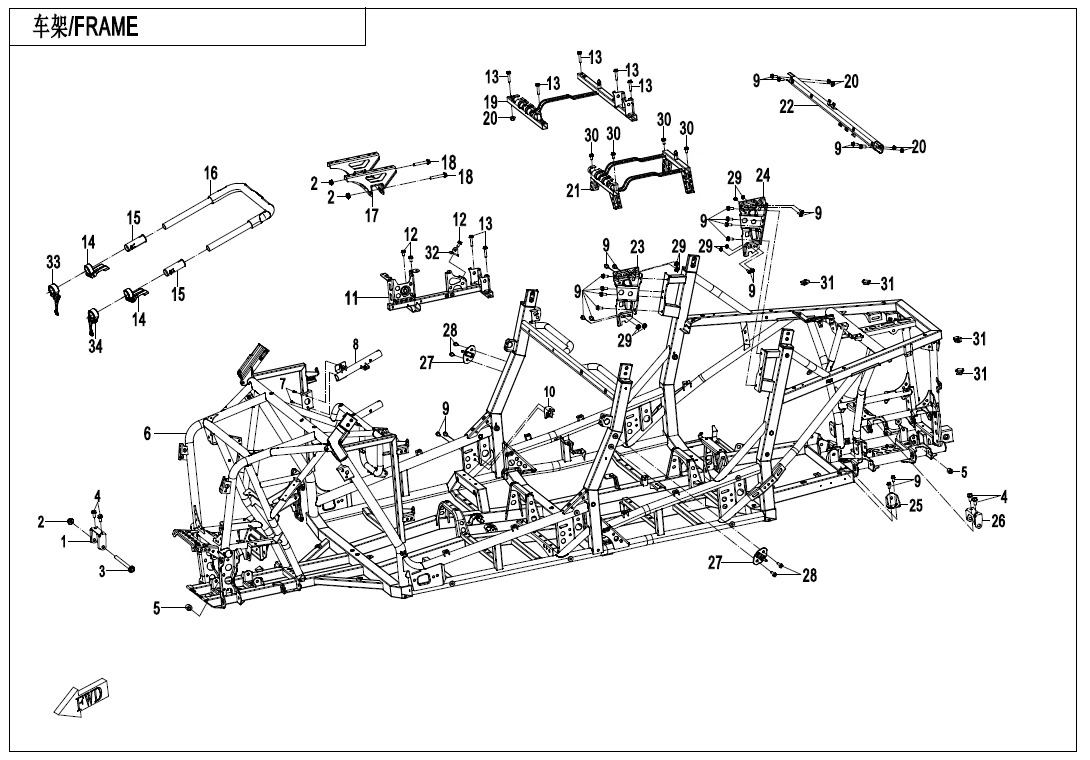

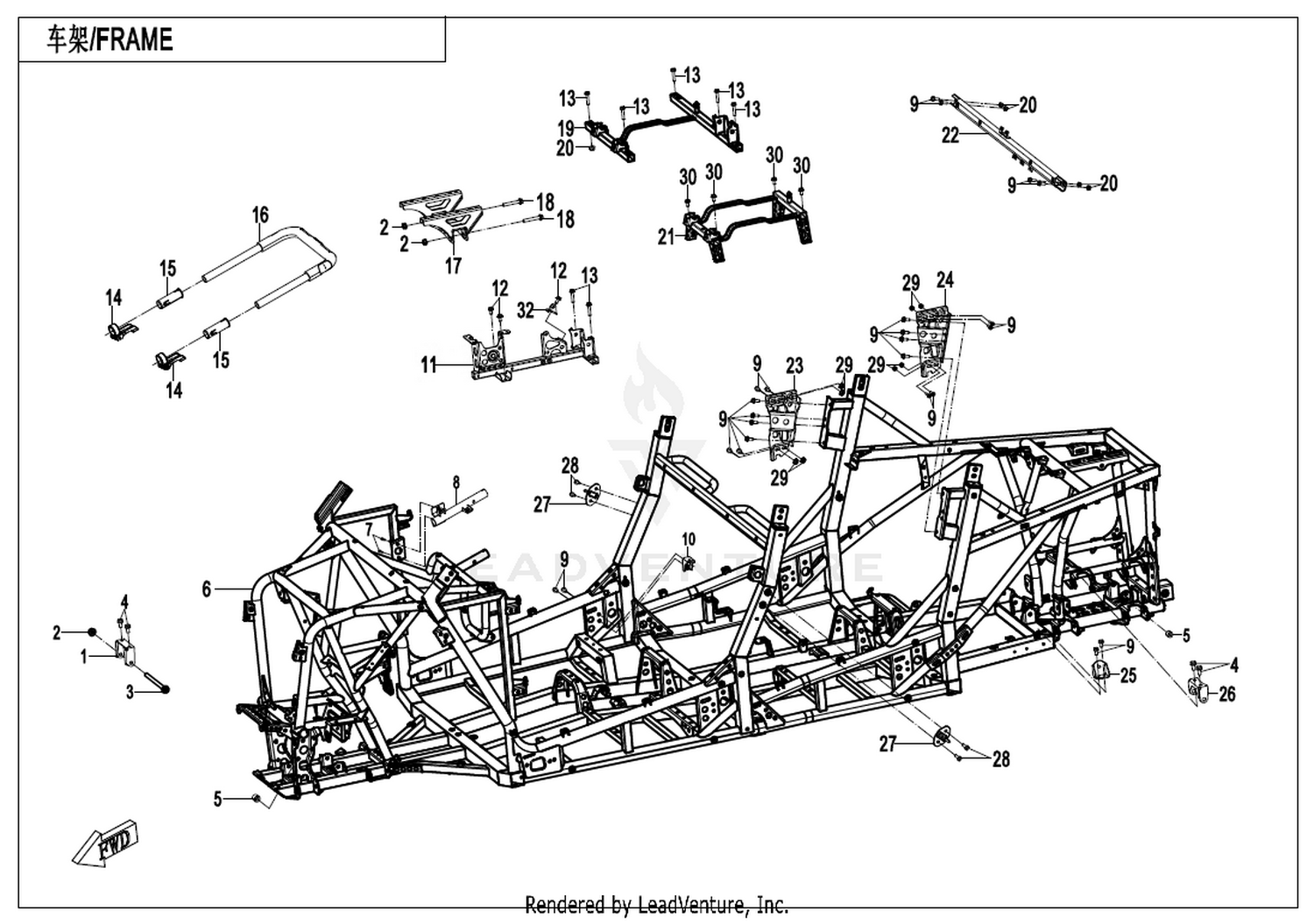

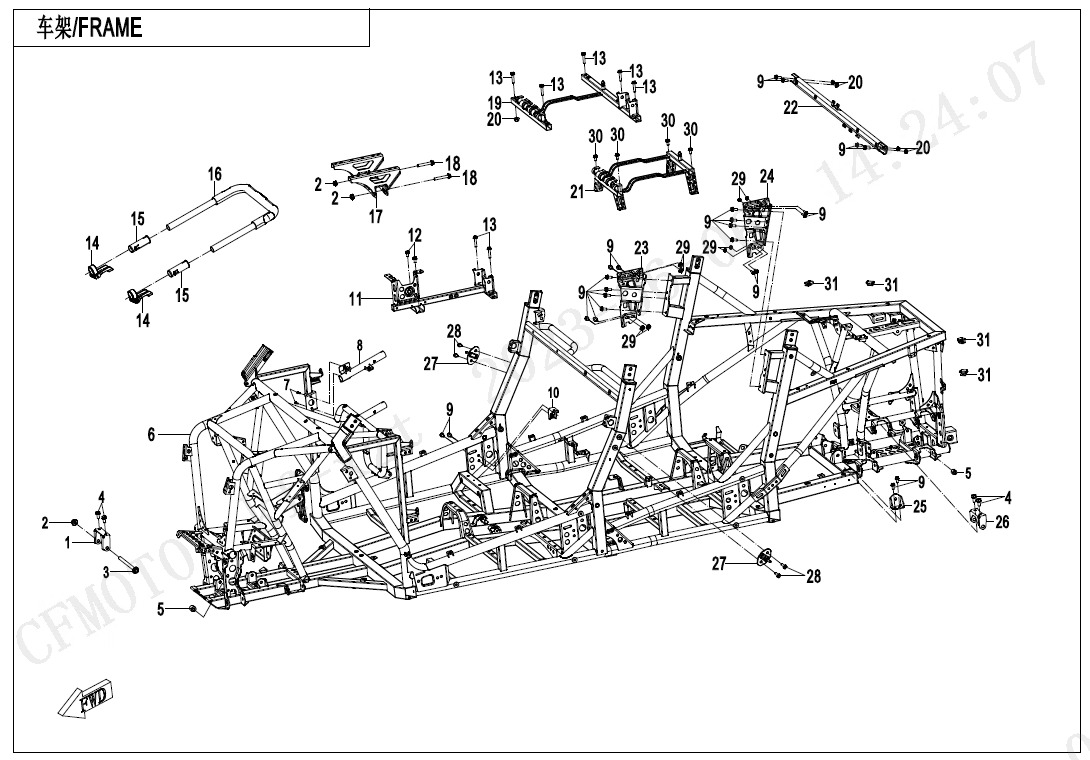

Location in exploded diagrams
Other parts on this diagram — FRAM
- #1 5BWV-030050-5000 — UPPER ADAPTER BRACKET, FRONT GEAR CASE
- #2 30204-102810 — NUT M10X1.25
- #3 30006-102130810 — BOLT M10X1.25X130
- #4 30006-102020810 — BOLT M10X1.25X20
- #5 7000-031803 — MOUNTING BUSHING, REAL GEAR CASE
- #6 5BYV-031000-6000 — FRAME ASSY
- #7 30006-060055810 — BOLT M6X55
- #8 5BWV-030300-5000 — PASSENGER ARMREST ASSY
- #9 30006-080020810 — BOLT M8X20
- #10 5BWV-030060-5000 — RH SUPPORTER, SEAT
- #11 5BYV-030300-6000 — GEARSHIFT BRACKET ASSY
- #12 30006-080016810 — BOLT M8X16
- #13 30006-080040810 — BOLT M8X40
- #14 5BWV-107000-5001 — WIRE CLIP ASSY
- #15 5BWV-107400-5001 — BUSHING, ARMREST RAIL
- #16 5BWV-100100-5000 — ARMREST RAIL ASSY
- #17 5BYV-030400-6000 — PASSENGER SEAT BRACKET ASSY
- #18 30006-102065810 — BOLT M10X1.25X65
- #19 5BYV-030200-6000 — RH REAR SEAT BRACKET ASSY
- #20 30204-080810 — NUT M8
- #21 5BYV-030100-6000 — LH REAR SEAT BRACKET ASSY
- #22 5BYV-030600-6000 — RH REAR DOOR BRACKET ASSY
- #24 5BWV-030070-5000 — REAR GIRDER PIPE
- #25 7000-031802 — LH MOVING BRACKET, ENGINE
